Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

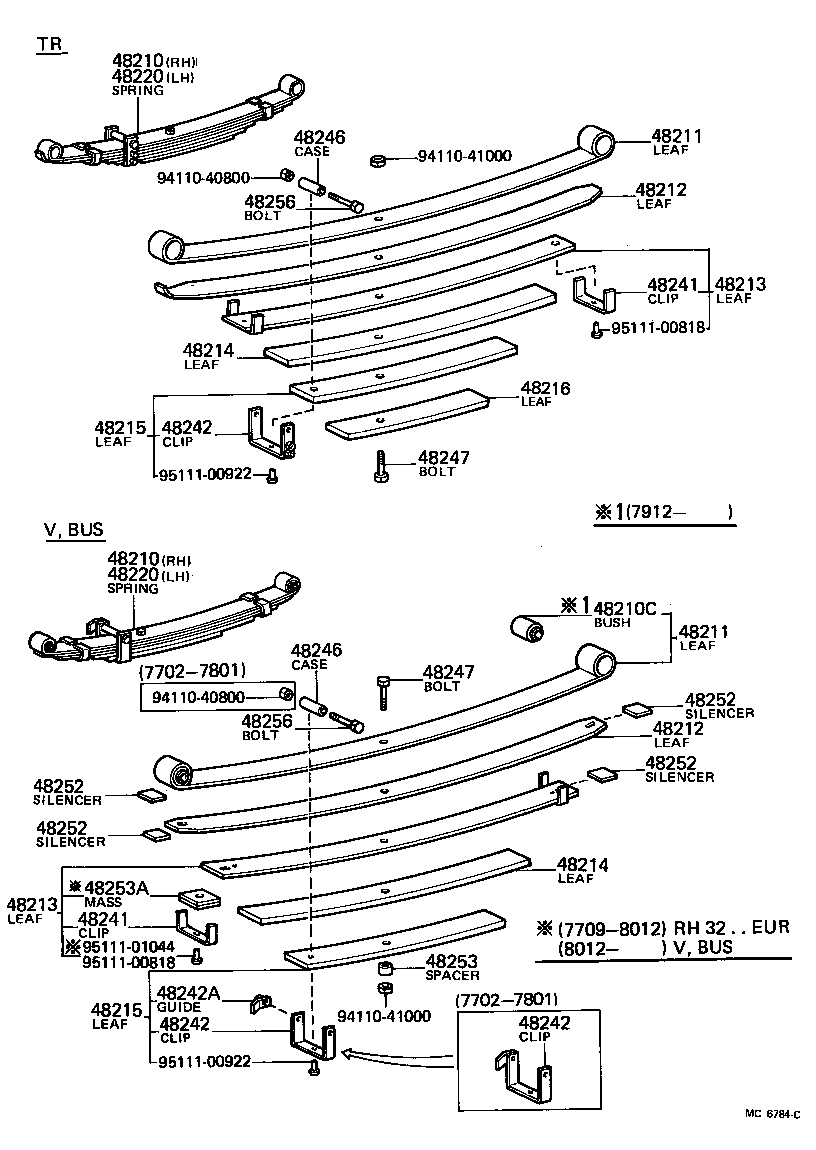

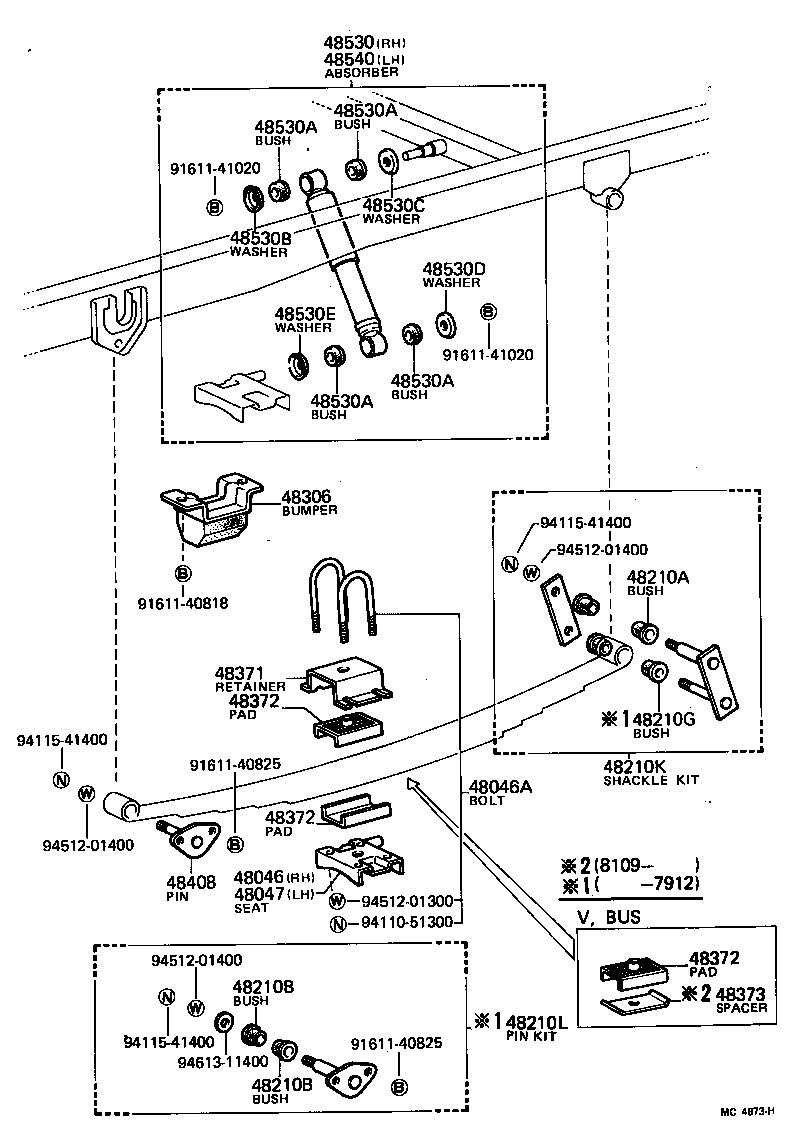

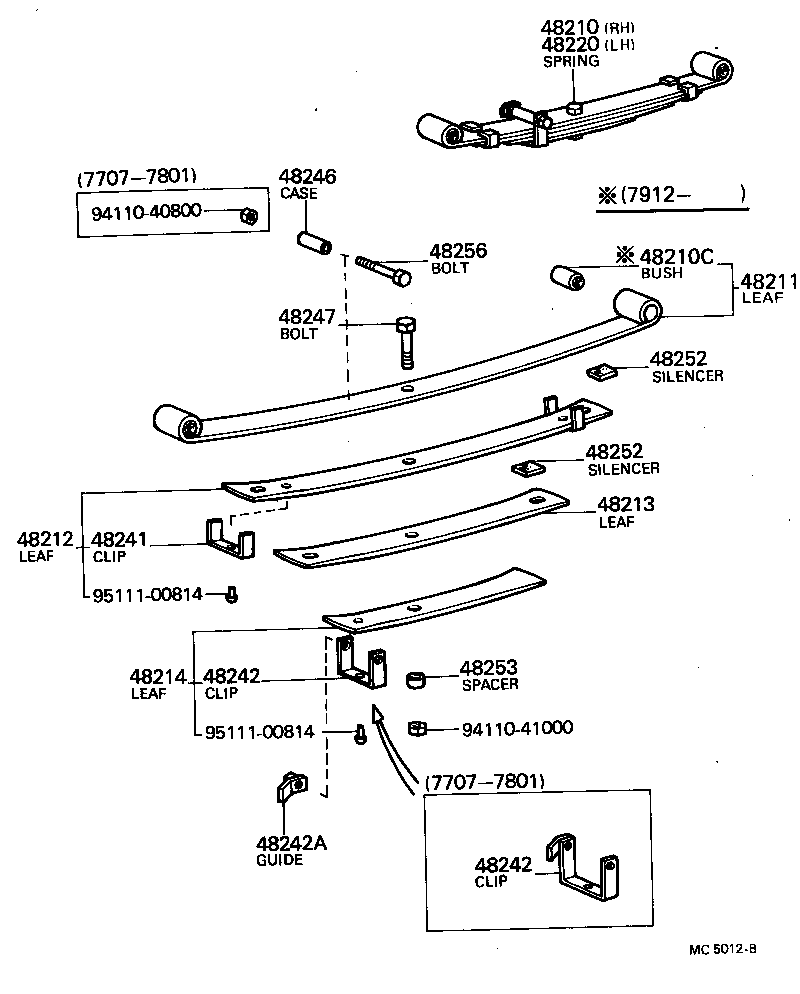

Rear Spring & Shock Absorber
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210B | Bush(FOR REAR SPRING PIN) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48210G | Bush(FOR REAR SPRING SHACKLE LOWER) |
| 48210K | Shackle Kit, Rear Spring |
| 48210L | Pin Kit, Rear Spring |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48220 | Spring Assy, Rear LH |
| 48241 | Clip, Rear Spring, NO.1 |
| 48242 | Clip, Rear Spring, NO.2 |
| 48242A | Guide, Rear Spring Clip Cable |
| 48246 | Case, Rear Spring Clip Bolt |
| 48247 | Bolt, Rear Spring, Center |
| 48252 | Silencer, Rear Spring |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48253A | Mass Damper, Rear Spring, NO.1 |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48344 | Stopper, Bumper, Rear |
| 48371 | Retainer, Rear Spring Pad |
| 48372 | Pad, Rear Spring |
| 48373 | Spacer, Rear Spring |
| 48401 | Bracket Sub-assy, Rear Spring, Front RH |
| 48402 | Bracket Sub-assy, Rear Spring, Front LH |
| 48404 | Bracket Sub-assy, Rear Spring, Rear RH |
| 48405 | Bracket Sub-assy, Rear Spring, Rear LH |
| 48408 | Pin Sub-assy, Spring Bracket |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530D | Washer, Rear Shock Absorber Cushion, NO.3 |
| 48530E | Washer, Rear Shock Absorber Cushion, NO.4 |
| 48540 | Absorber Assy, Shock, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
