Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

19 part groups · 2 illustrations

Illustrations

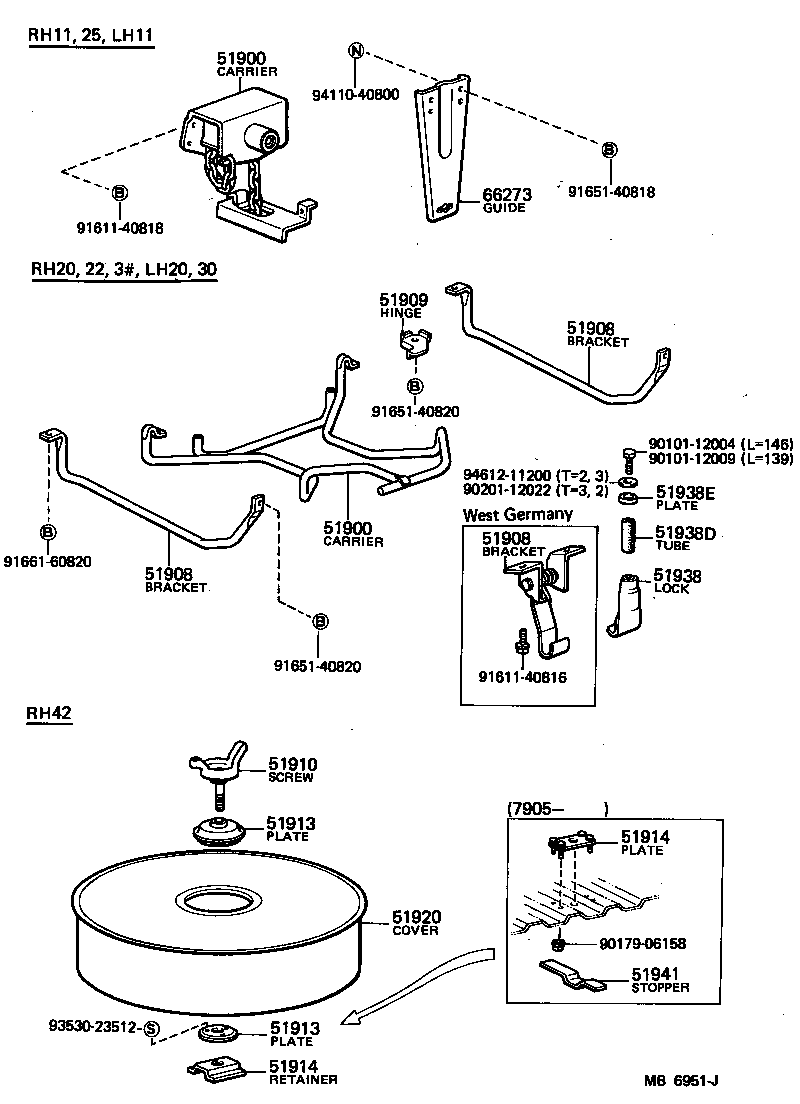

Figure MB6493I MB6493I 1977-02 → — Figure MB6951J MB6951J 1977-02 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51445A Cushion(FOR ENGINE UNDER COVER BRACKET)
51445B Tube(FOR ENGINE UNDER COVER BRACKET)
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51909 Hinge Sub-assy, Spare Wheel Carrier
51910 Screw Assy, Spare Wheel Clamp
51913 Plate, Spare Wheel Clamp
51914 Retainer, Spare Wheel Carrier
51920 Cover Assy, Spare Wheel
51938 Lock, Spare Wheel Carrier
51938D Tube(FOR SPARE WHEEL CARRIER BOLT)
51938E Plate, Spare Wheel Carrier Lock
51941 Stopper, Spare Wheel Carrier
51961 Hook, NO.1
51962 Hook, NO.2
51963 Stopper, Hook Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
