Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 4 illustrations

Illustrations

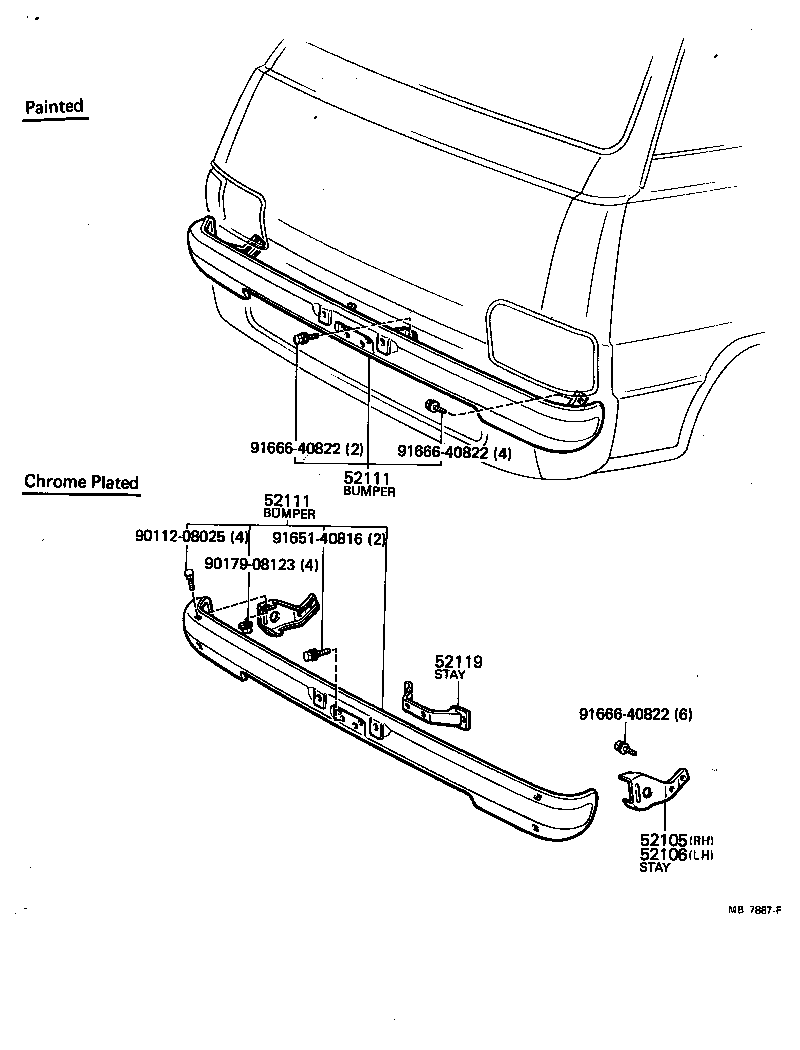

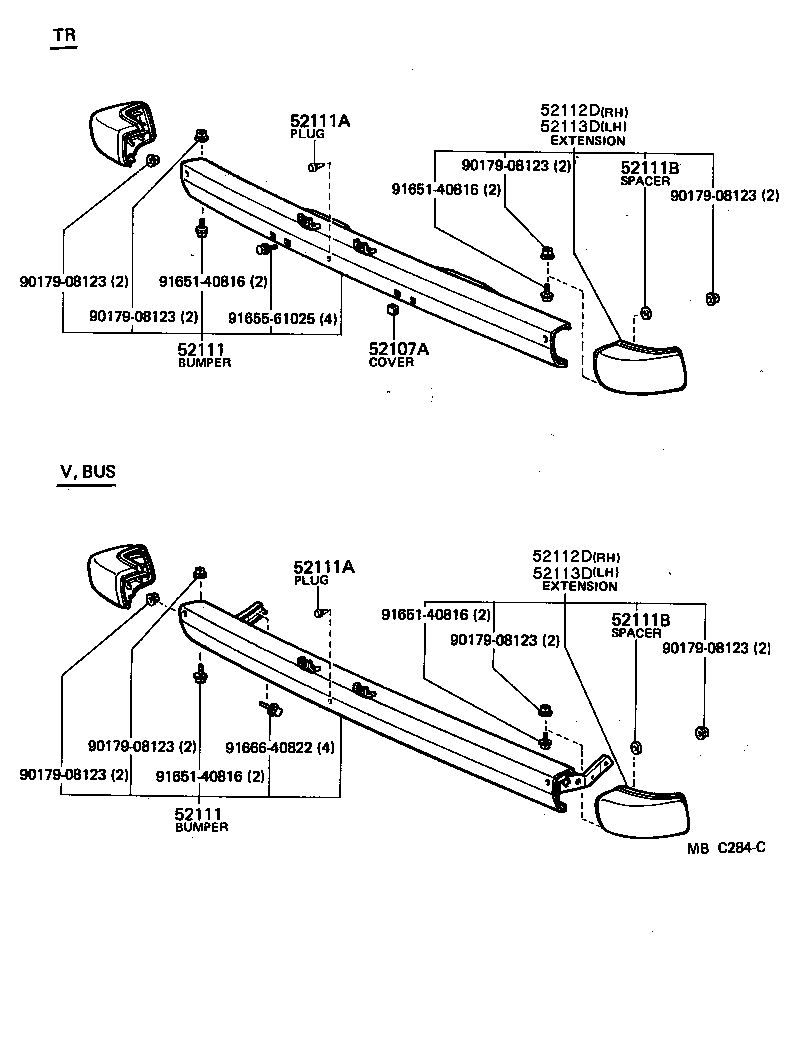

Figure MB7886E MB7886E 1977-02 → 1980-12 Figure MB7887F MB7887F 1977-02 → 1980-12 Figure MBC284C MBC284C 1980-12 → — Figure MBC203C MBC203C 1980-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52107A Cover, Front Bumper Arm Hole
52111 Bumper Assy, Front
52111A Plug, Front Bumper
52111B Spacer(FOR FRONT BUNPER)
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119 Stay, Front Bumper, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
