Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

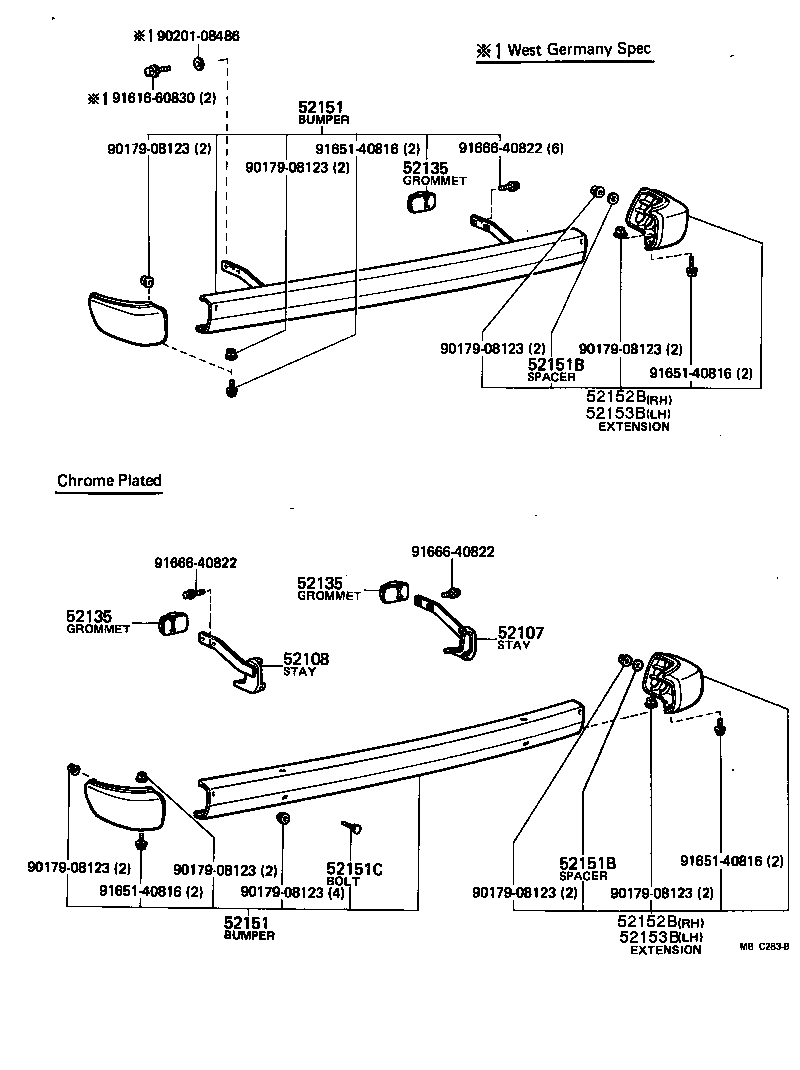

Figure MB6497I MB6497I 1977-02 → 1980-12 Figure MBC283B MBC283B 1980-12 → —

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52135 Grommet, Rear Bumper Stay
52151 Bumper Assy, Rear
52151B Spacer(FOR REAR BUMPER SET)
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
