Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

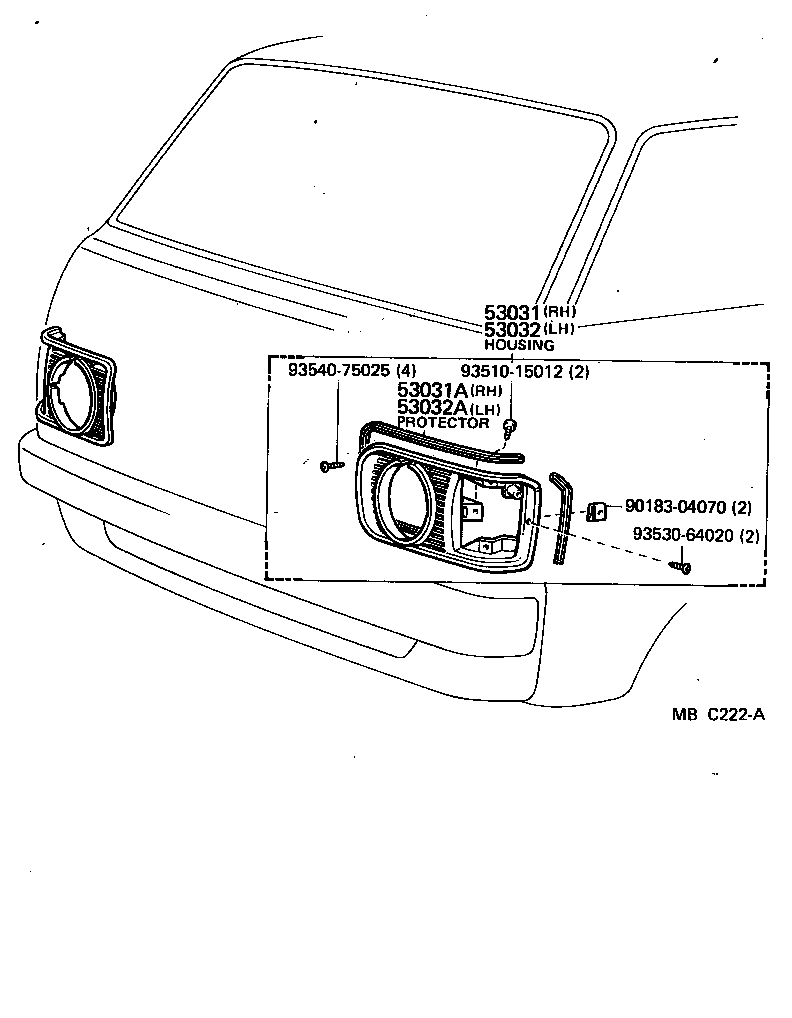

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53031 | Housing, Headlamp, RH |
| 53031A | Protector, Headlamp Door, RH |
| 53031B | Bracket, Headlamp Door, Center |
| 53031C | Bracket, Headlamp Door, Upper |
| 53031D | Bracket, Headlamp Door, Lower |
| 53032 | Housing, Headlamp, LH |
| 53032A | Protector, Headlamp Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
