Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 8 illustrations

Illustrations

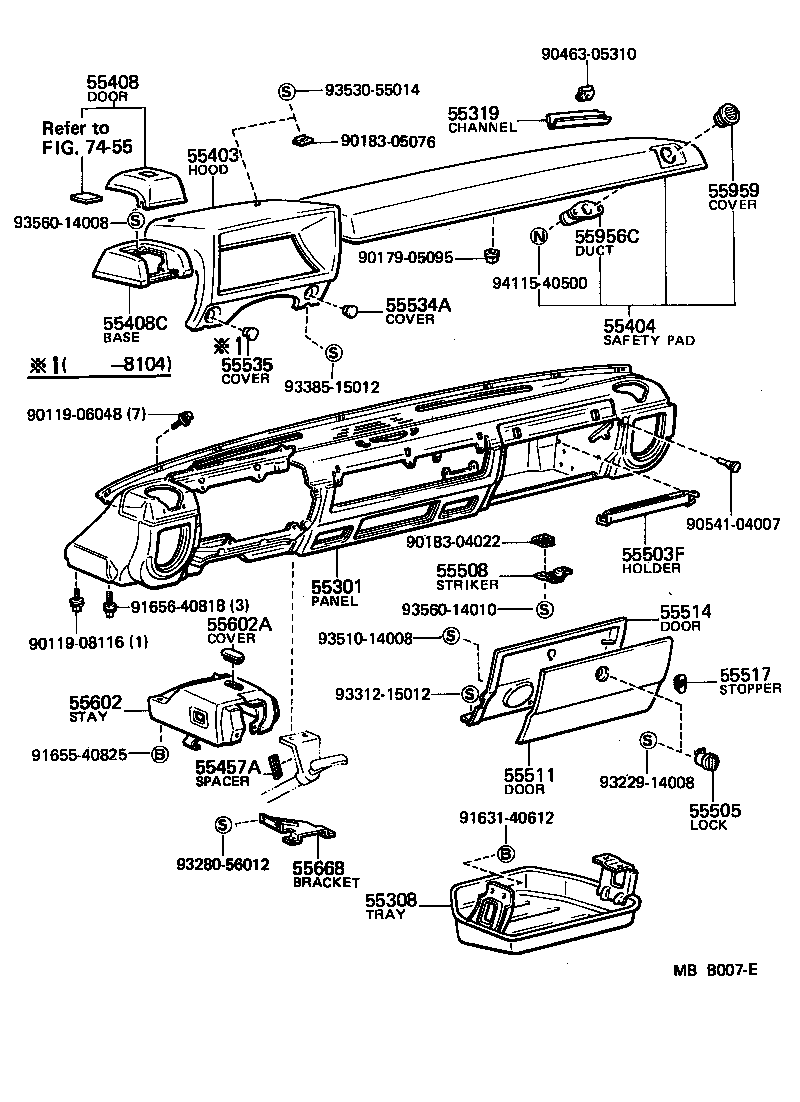

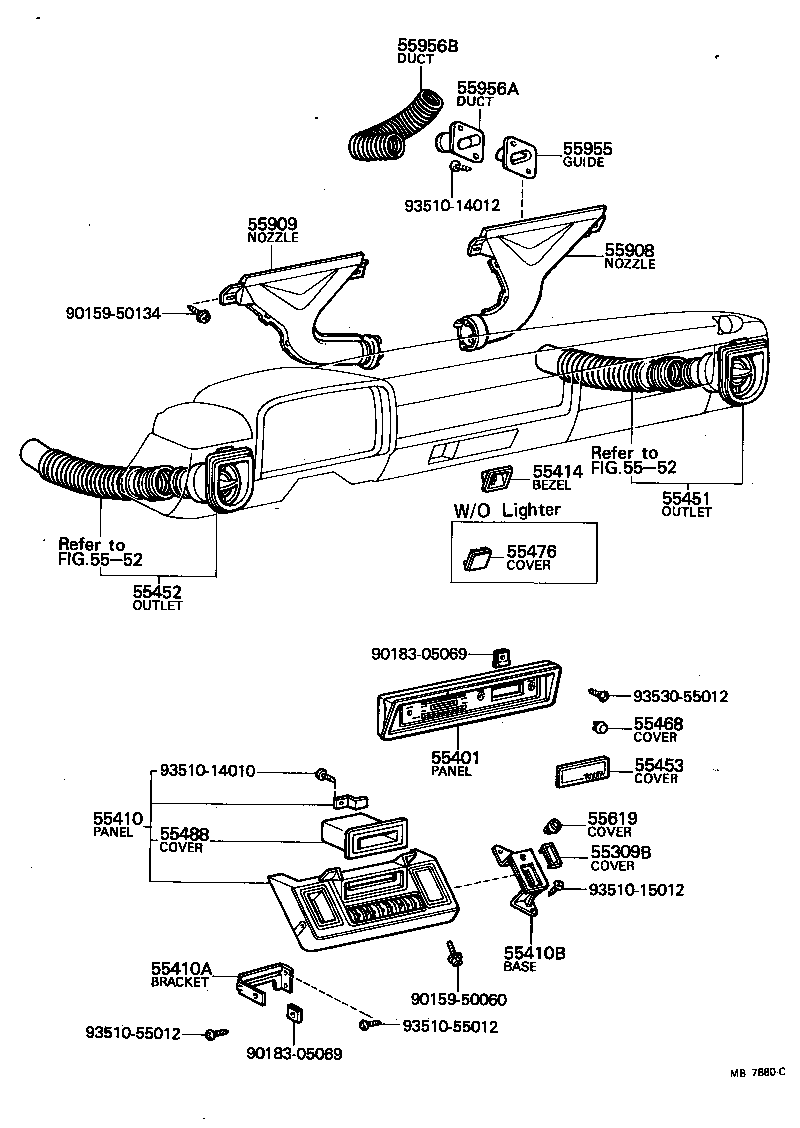

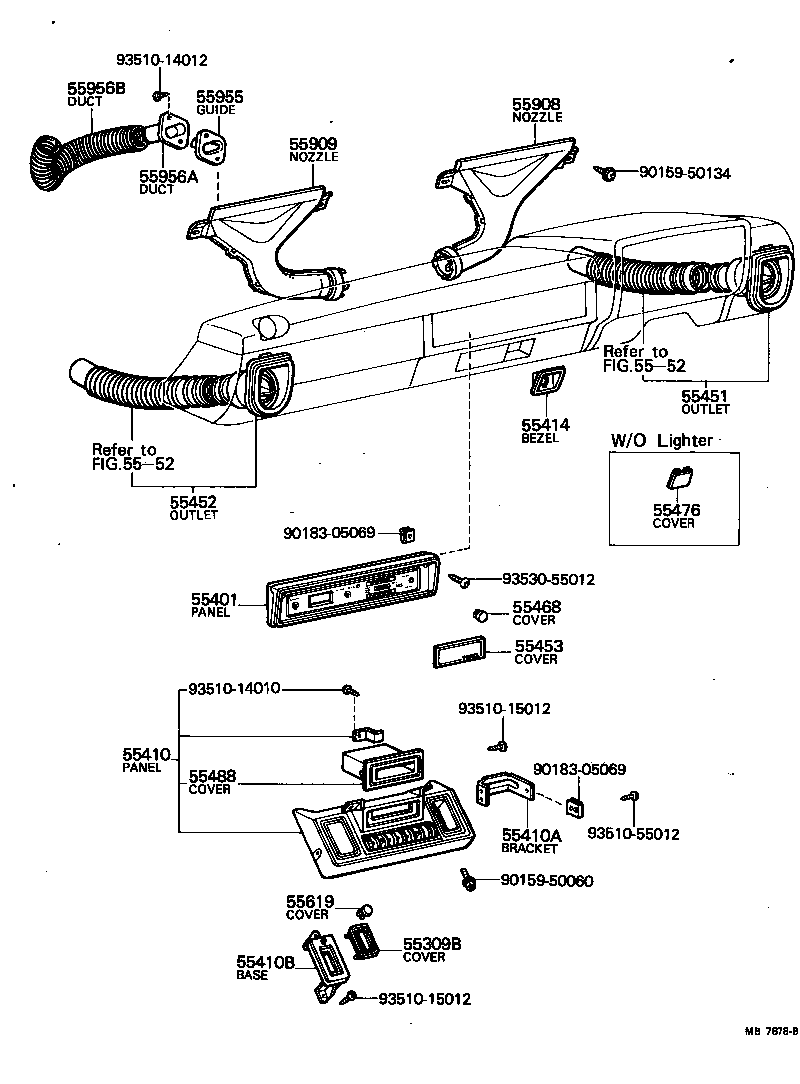

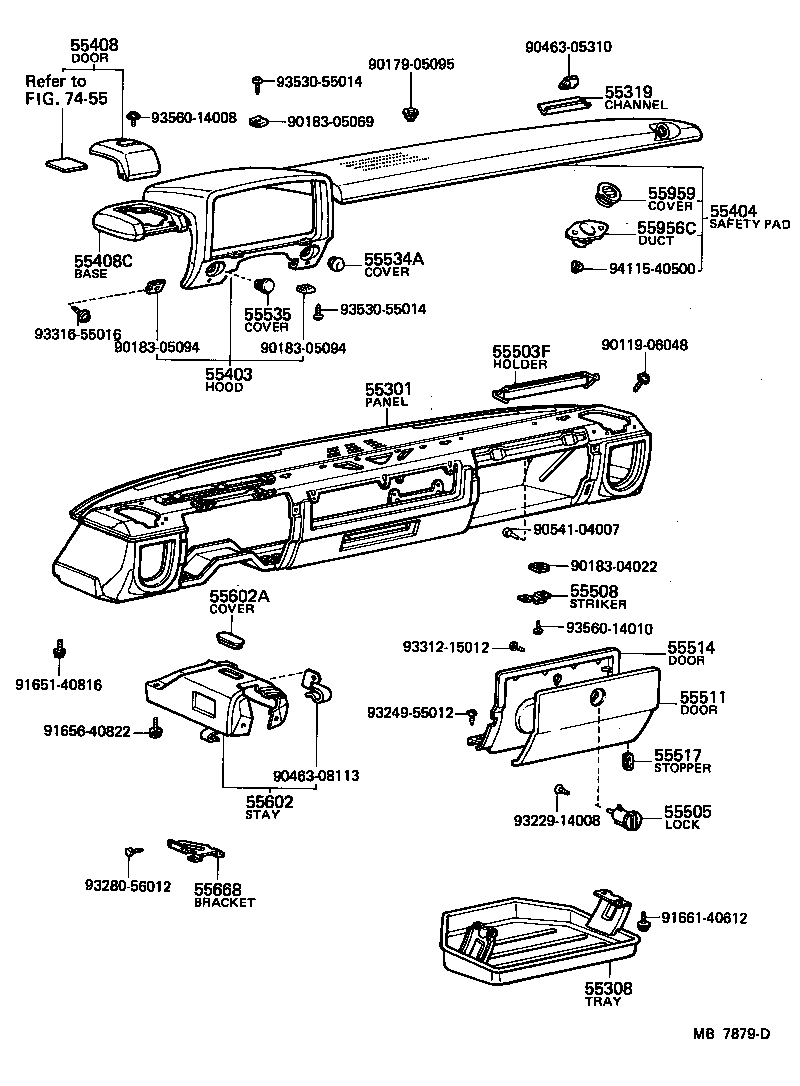

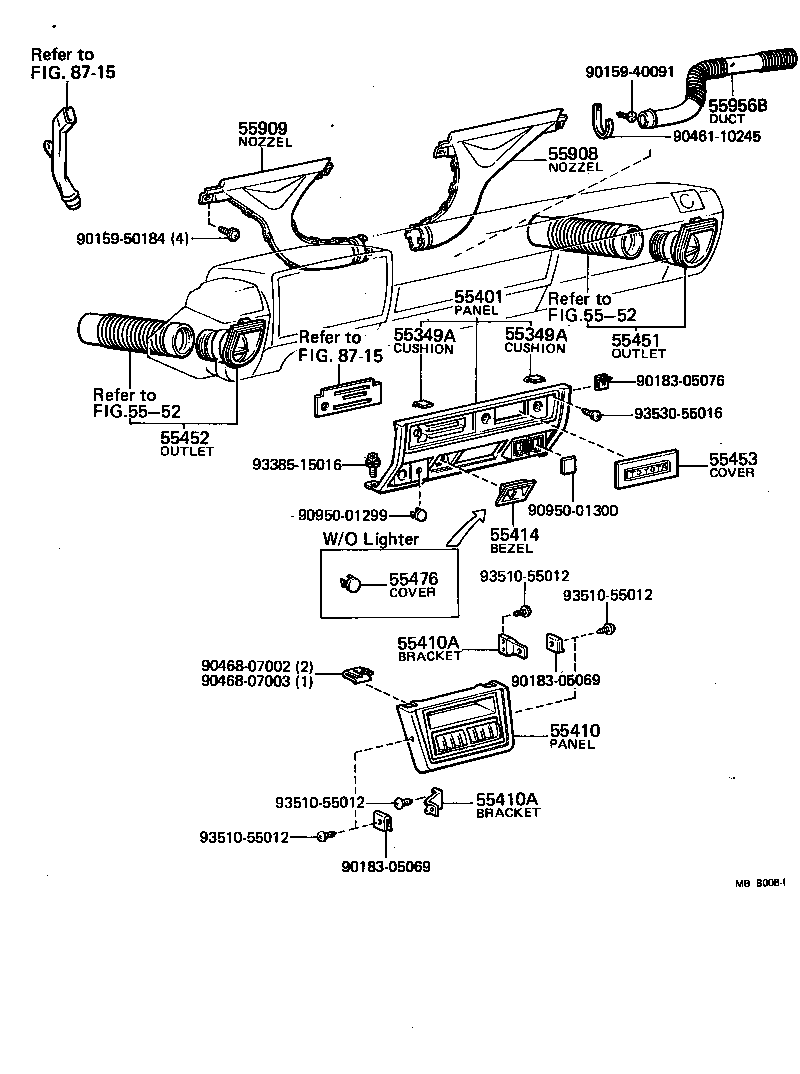

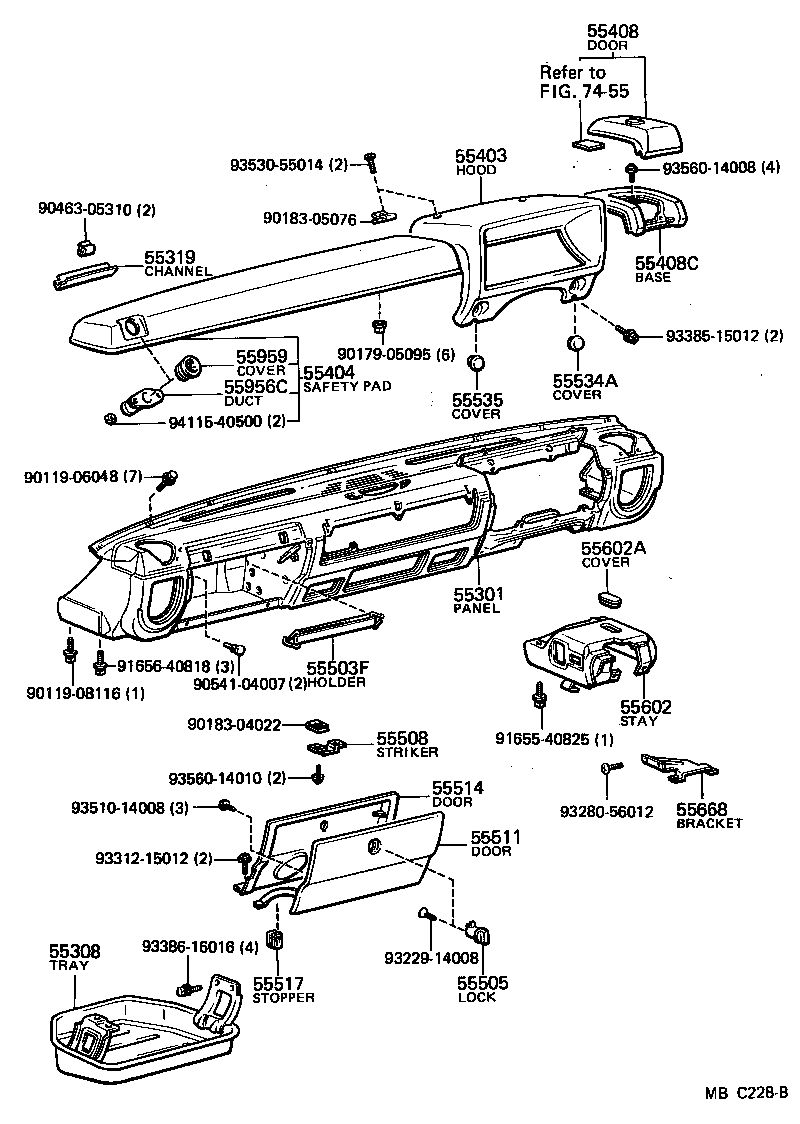

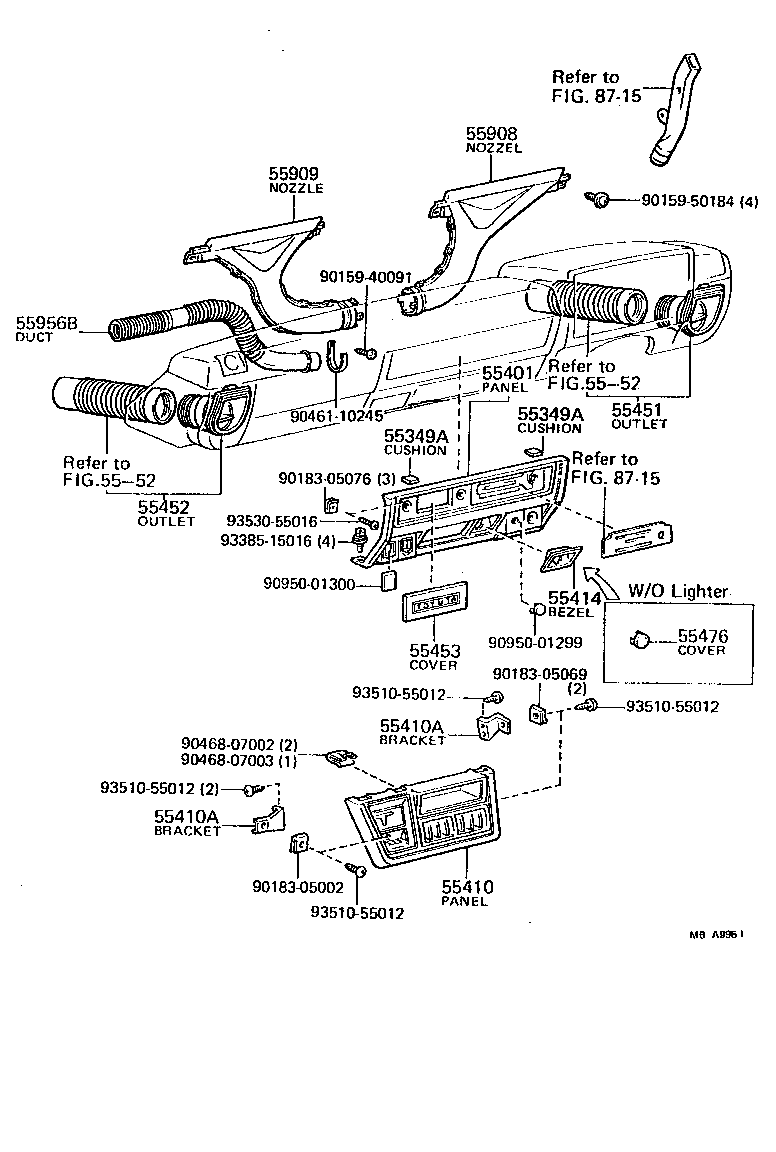

Figure MB7877H MB7877H 1977-02 → 1979-12 Figure MB7878B MB7878B 1977-02 → 1979-12 Figure MB7879D MB7879D 1977-02 → 1979-12 Figure MB7880C MB7880C 1977-02 → 1979-12 Figure MBC228B MBC228B 1979-12 → — Figure MBA996I MBA996I 1979-12 → — Figure MBB007E MBB007E 1979-12 → — Figure MBB008I MBB008I 1979-12 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55309B Cover, Base Switch Hole, NO.2
55319 Channel, Water Guide
55349A Cushion, Instrument Panel
55401 Panel Sub-assy, Instrument Cluster Finish
55403 Hood Sub-assy, Meter
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55408 Door Sub-assy, Reservoir Tank Service Hole
55408C Base, Reservoir Tank Service Hole Door
55410 Panel Assy, Instrument Cluster Finish, NO.2
55410A Bracket, Instrument Cluster Finish Panel, NO.2
55410B Base, Switch
55414 Bezel, Cigar Lighter Hole
55451 Outlet, Air Outer, RH
55452 Outlet, Air Outer, LH
55453 Cover, Radio Tuner Opening
55457A Spacer, Instrument Panel Safety Pad
55468 Cover, Heater Switch Hole
55476 Cover, Cigarette Lighter Hole
55488 Cover, Stereo Opening
55503F Holder, Card(FOR GLOVE COMPARTMENT)
55505 Lock Sub-assy, Glove Compartment Door
55508 Striker Sub-assy, Glove Compartment Door Lock
55511 Door, Glove Compartment
55514 Door, Glove Compartment, Inner
55517 Stopper, Glove Compartment Door Arm
55534A Cover, Illumination Lamp Hole
55535 Cover, Warning Lamp Hole
55602 Stay Sub-assy, Steering Column, Upper
55602A Cover,Steering Column Upper Stay
55619 Cover, Switch Hole
55668 Bracket, Connector Support
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
55955 Guide, Defroster Nozzle
55956A Duct, Side Defroster Nozzle, NO.1
55956B Duct, Side Defroster Nozzle, NO.2
55956C Duct, Side Defroster Nozzle, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
