Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

29 part groups · 7 illustrations

Illustrations

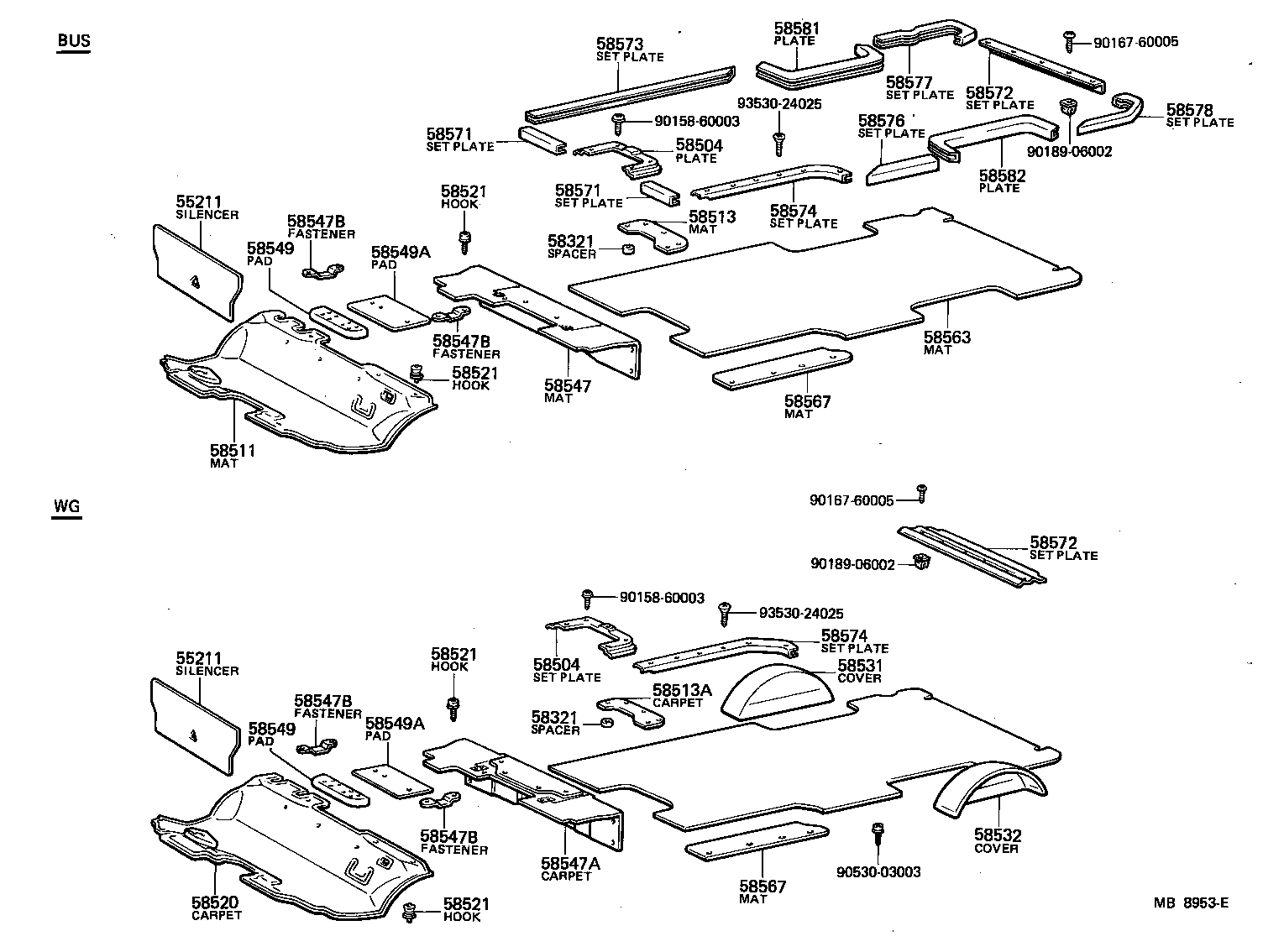

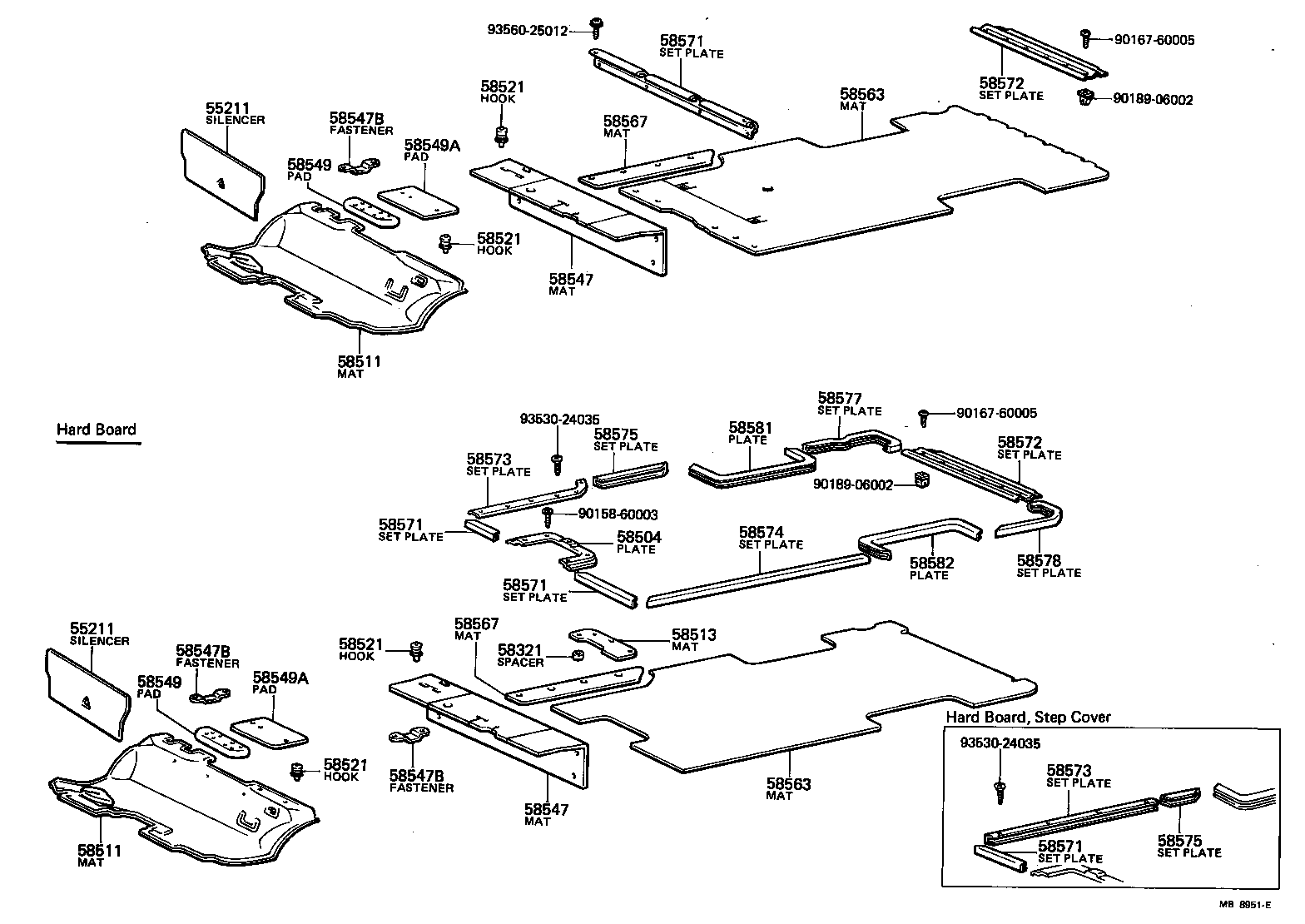

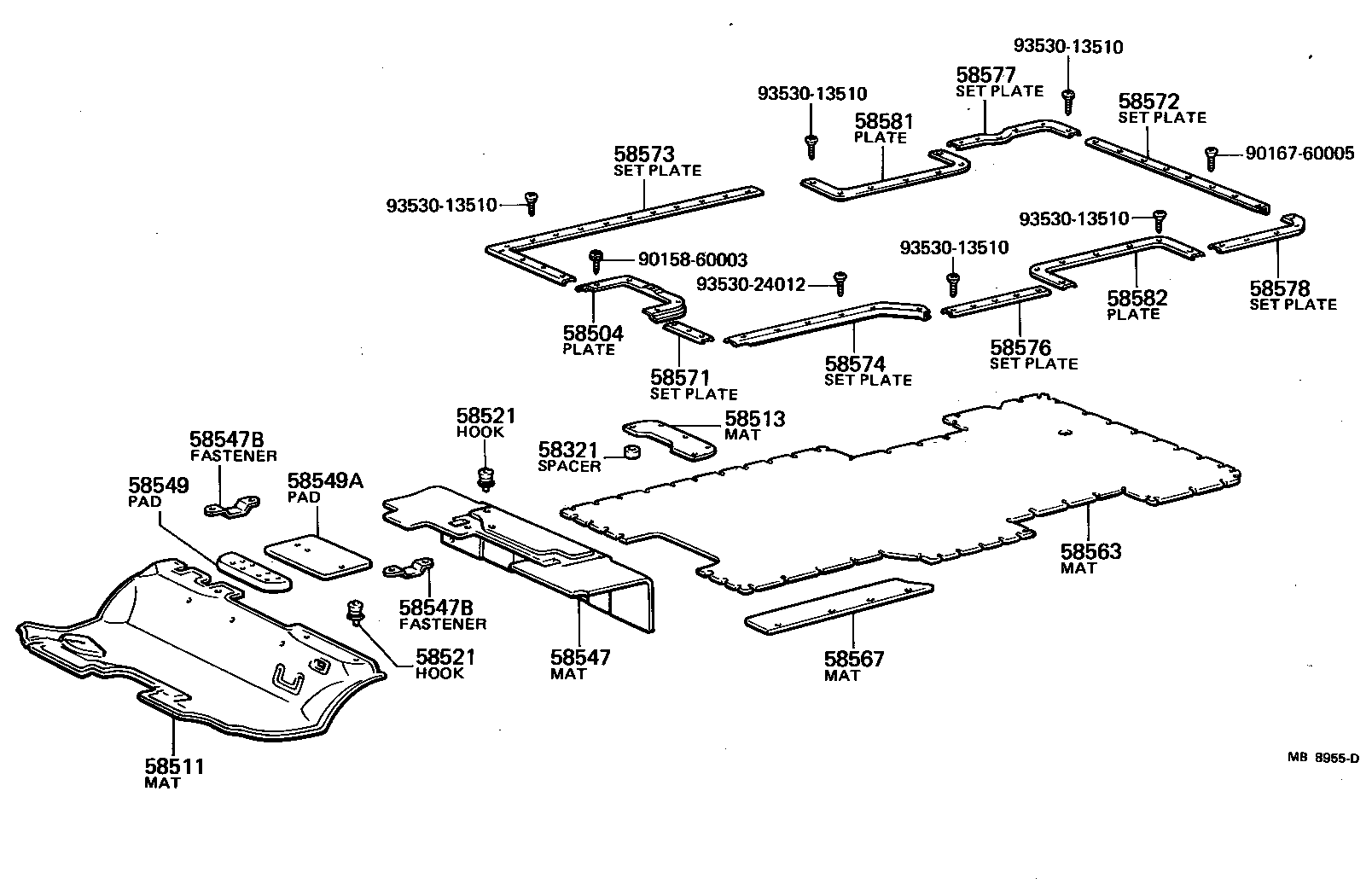

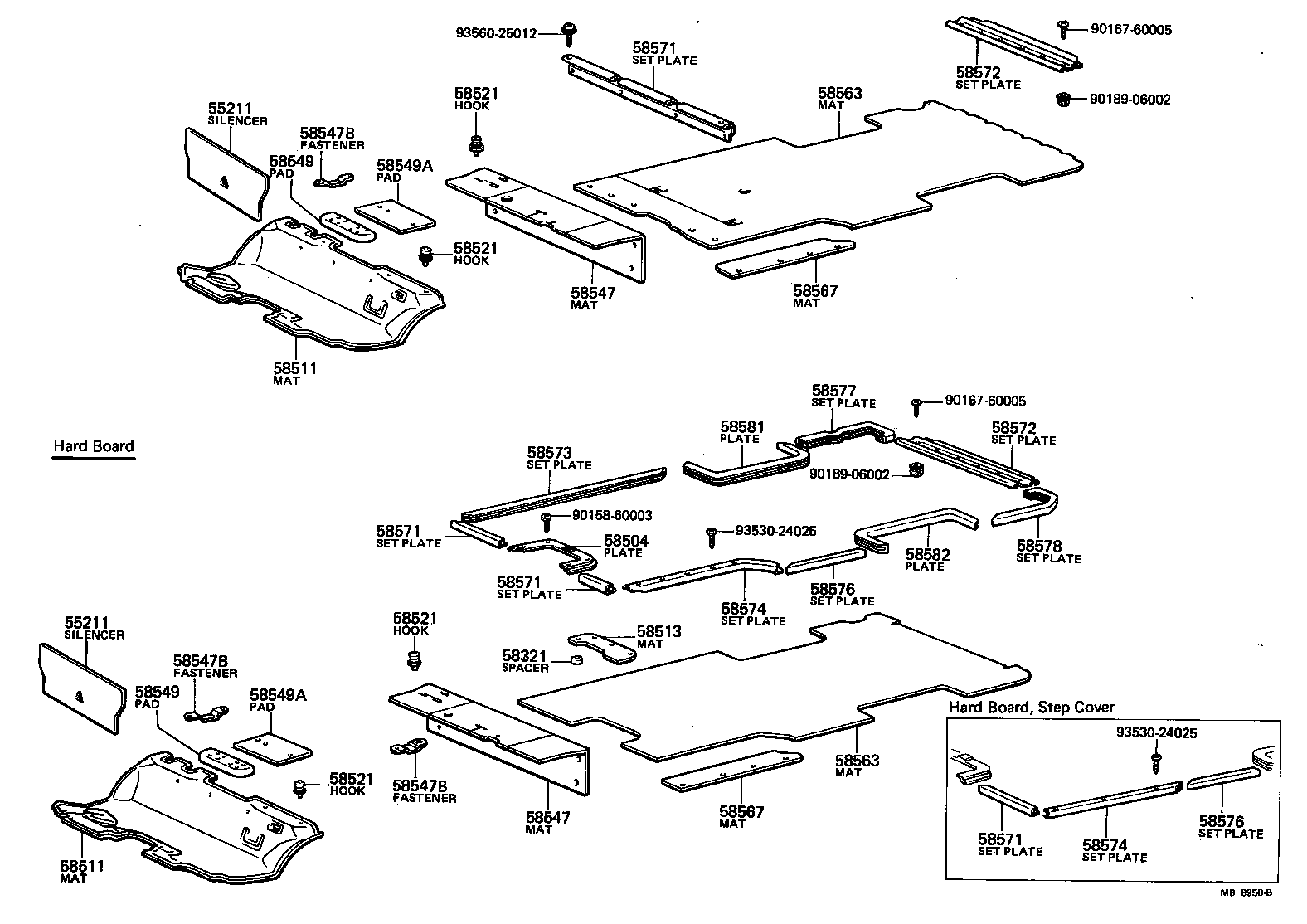

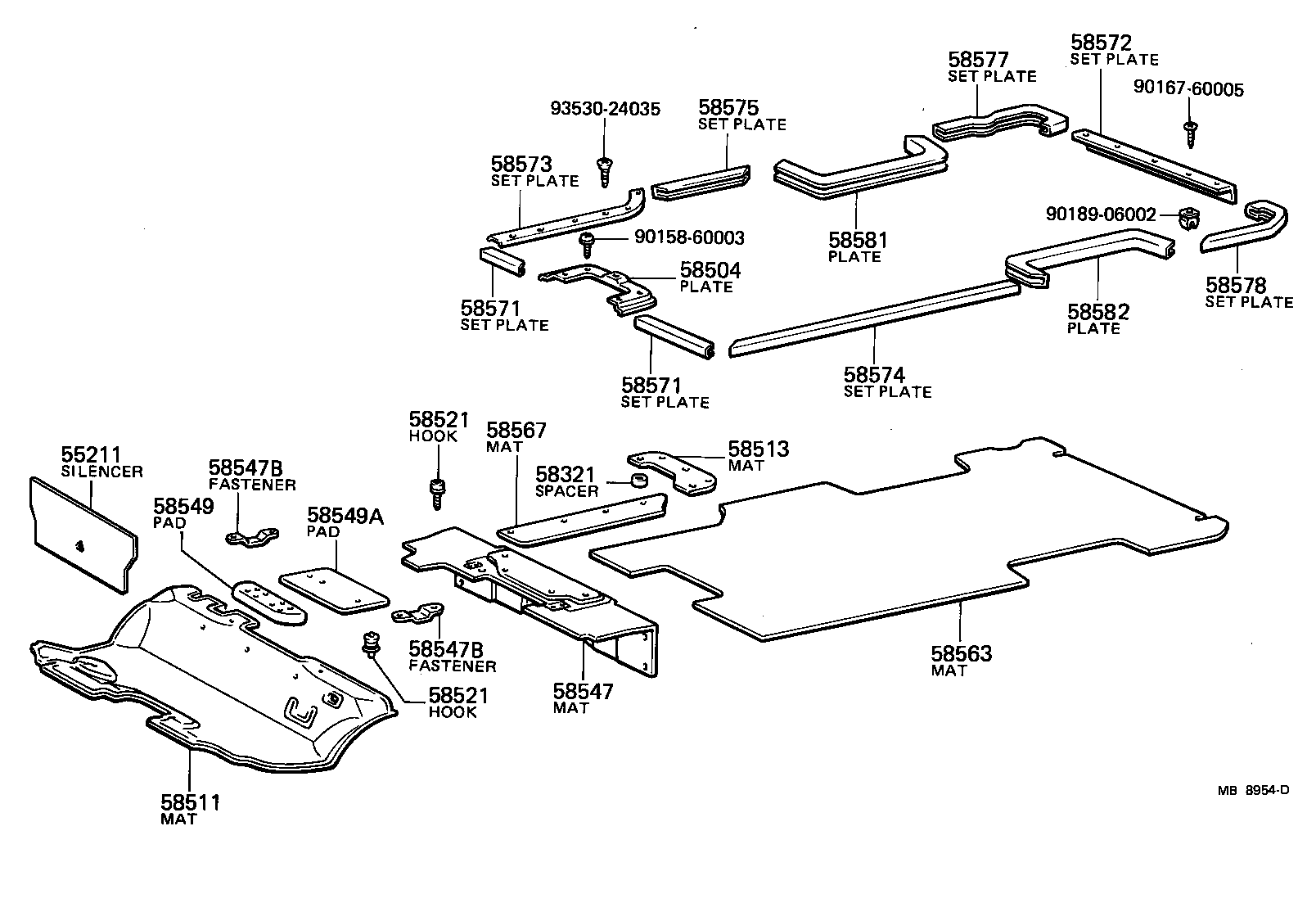

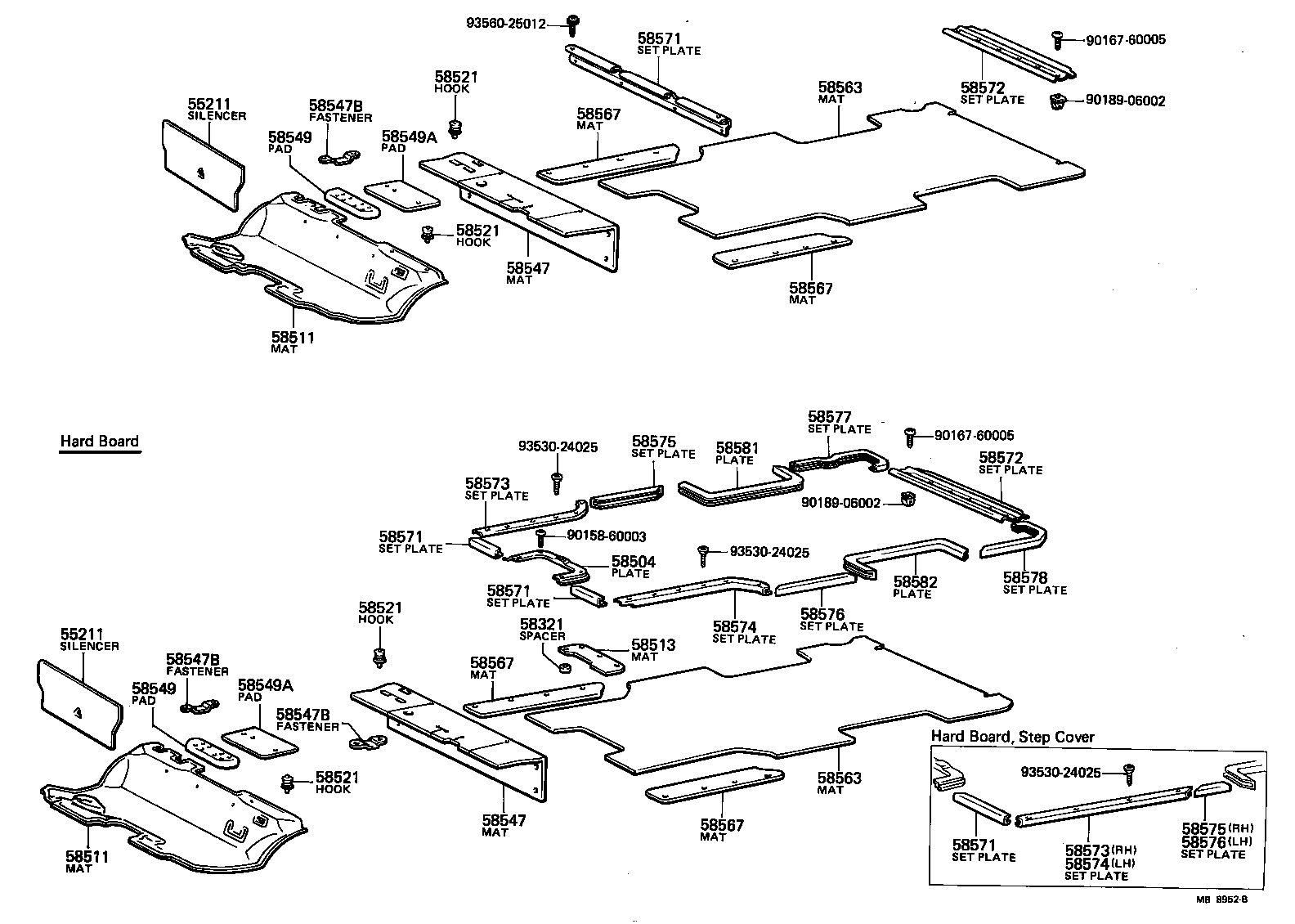

Figure MBB136B MBB136B 1977-02 → — Figure MB8950B MB8950B 1977-02 → — Figure MB8951E MB8951E 1977-02 → — Figure MB8952B MB8952B 1977-02 → — Figure MB8953E MB8953E 1977-02 → — Figure MB8954D MB8954D 1977-02 → — Figure MB8955D MB8955D 1977-02 → —

Part groups

PNCDescription
55211 Silencer, Front Panel
58321 Spacer, Transmission Cover Mat
58504 Plate Sub-assy, Transmission Cover Mat Set
58511 Mat, Floor, Front
58513 Mat, Transmission Cover
58513A Carpet, Transmission Cover
58520 Carpet Assy, Front Floor
58521 Hook, Male, NO.1
58531 Cover, Wheel House Trim, RH
58532 Cover, Wheel House Trim, LH
58545 Mat, Header Panel, RH
58546 Mat, Header Panel, LH
58547 Mat, Header Panel, Center
58547A Carpet, Header Panel
58547B Fastener Assy, Header Mat
58549 Pad, Engine Center Service Hole Cover Hinge, Front
58549A Pad, Engine Center Service Hole Cover Hinge, Rear
58563 Mat, Rear Floor
58567 Mat, Step
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
58573 Set Plate, Rear Floor Mat Side, Front RH
58574 Set Plate, Rear Floor Mat Side, Front LH
58575 Set Plate, Rear Floor Mat Side, Center RH
58576 Set Plate, Rear Floor Mat Side, Center LH
58577 Set Plate, Rear Floor Mat Side, Rear RH
58578 Set Plate, Rear Floor Mat Side, Rear LH
58581 Plate, Wheel House Mat Set, RH
58582 Plate, Wheel House Mat Set, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
