Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

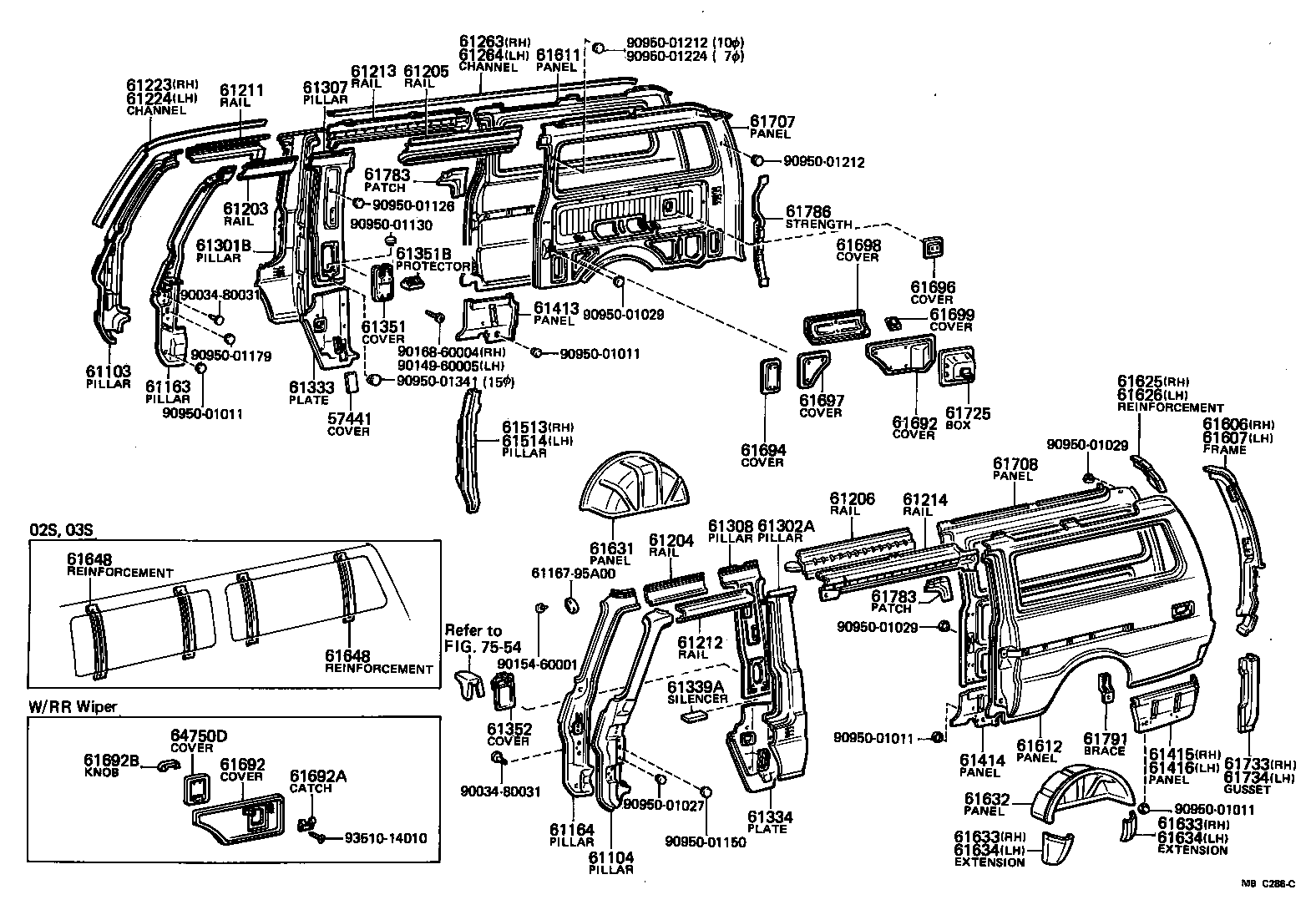

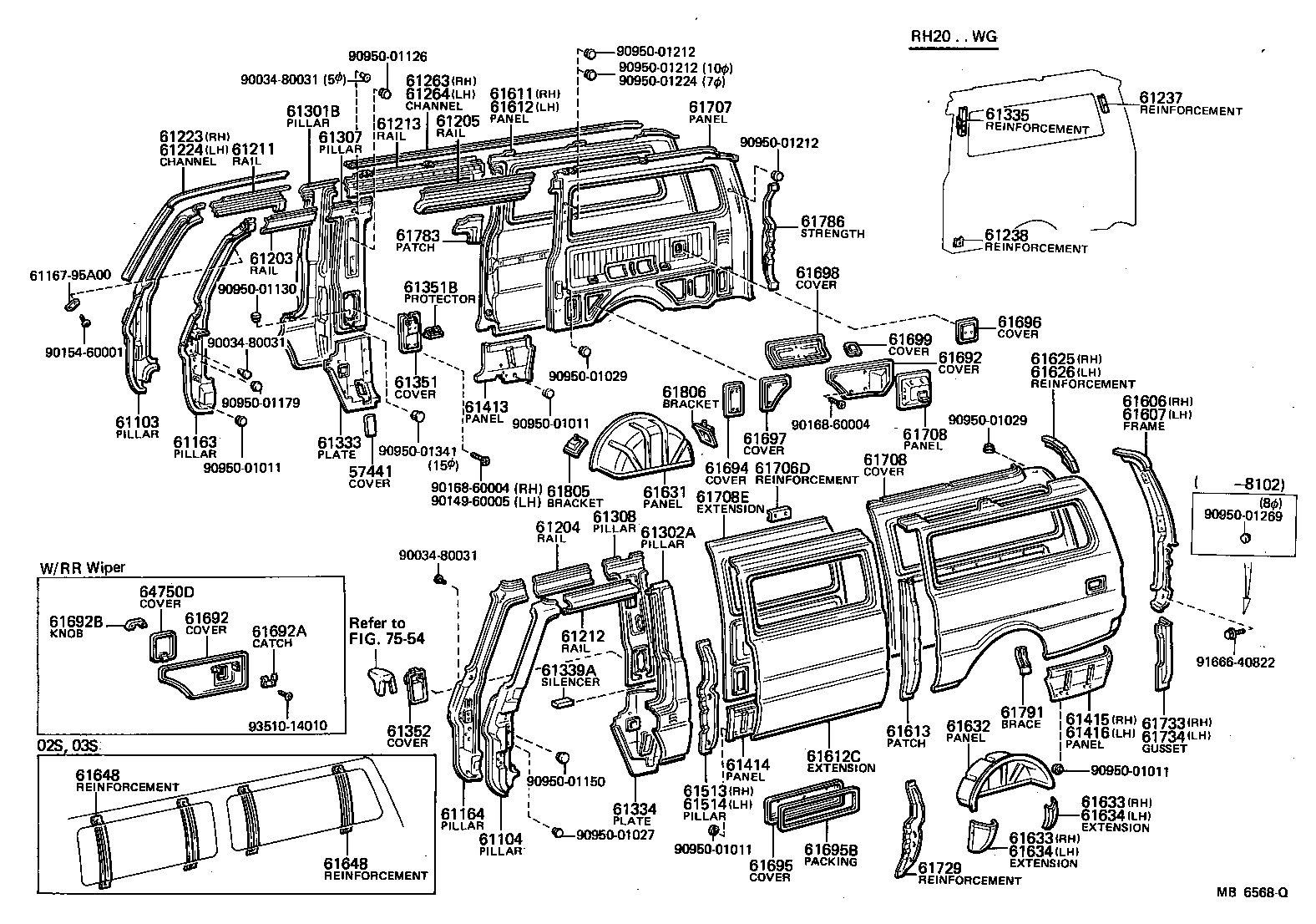

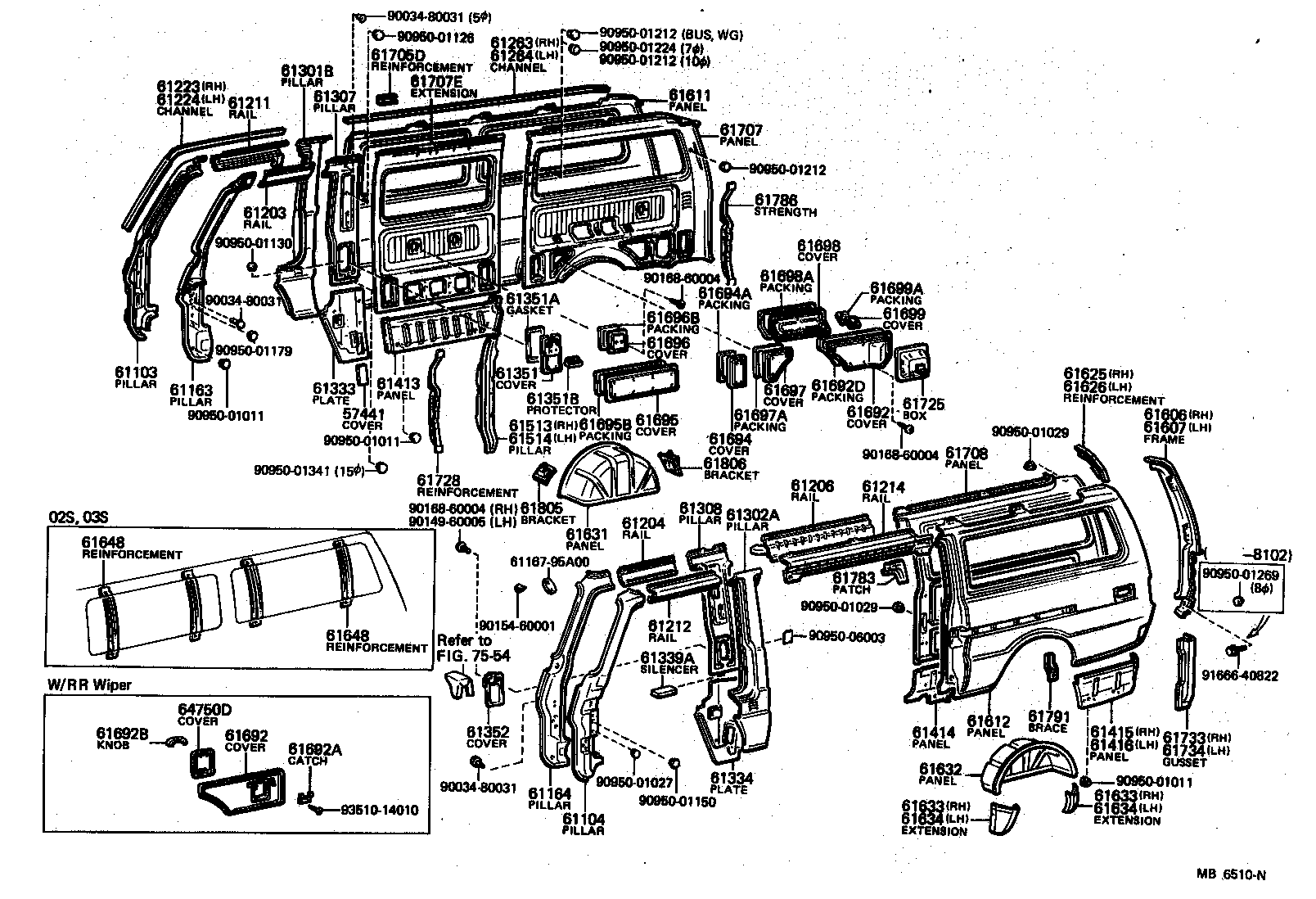

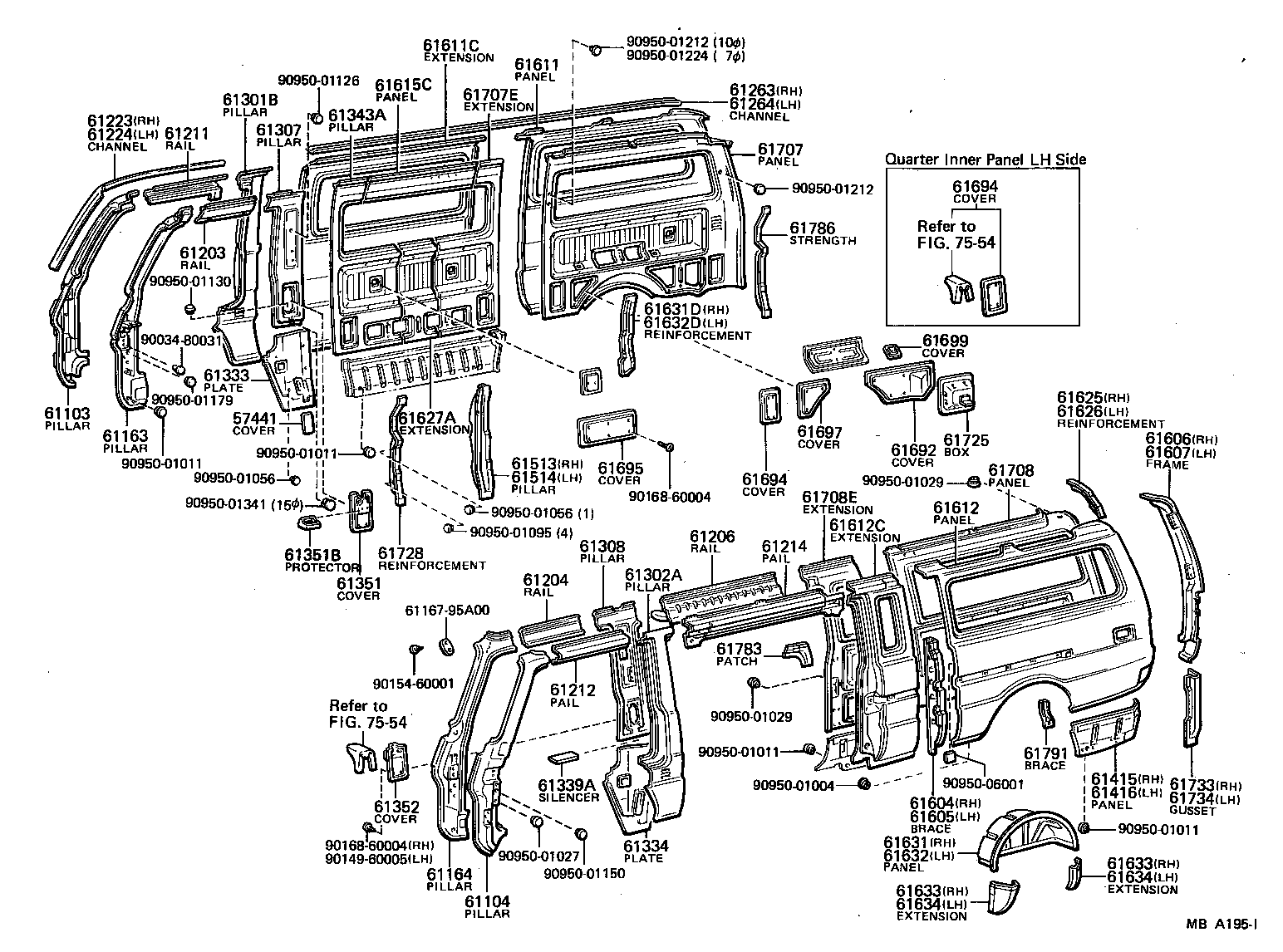

Side Member
93 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 57441 | Cover, Plate Floor Side Rail |
| 58011 | Panel Sub-assy, Front Floor Side, RH |
| 58012 | Panel Sub-assy, Front Floor Side, LH |
| 61103 | Pillar Sub-assy, Front Body, RH |
| 61104 | Pillar Sub-assy, Front Body, LH |
| 61163 | Pillar, Front Body, Inner RH |
| 61164 | Pillar, Front Body, Inner LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213 | Rail, Roof Side, Outer Rear RH |
| 61214 | Rail, Roof Side, Outer Rear LH |
| 61223 | Channel, Roof Drip, Front RH |
| 61224 | Channel, Roof Drip, Front LH |
| 61237 | Reinforcement, Safety Band Anchorage |
| 61238 | Reinforcement, Safety Band, Lower |
| 61263 | Channel, Roof Drip, Rear RH |
| 61264 | Channel, Roof Drip, Rear LH |
| 61301B | Pillar, Center Body, Outer RH |
| 61302A | Pillar, Center Body, Outer LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61333 | Plate, Center Pillar, RH |
| 61334 | Plate, Center Pillar, LH |
| 61334A | Bracket, Air Cleaner Inlet Seal |
| 61335 | Reinforcement, Front Seat Belt Anchorage, Upper |
| 61339A | Silencer, Pillar Inner |
| 61343A | Pillar, Center Body, Inner RH |
| 61351 | Cover, Center Body, Inner RH |
| 61351A | Gasket(FOR CENTER BODY INNER COVER) |
| 61351B | Protector(FOR CENTER BODY INNER COVER) |
| 61352 | Cover, Center Body, Inner, LH |
| 61413 | Panel, Rocker, Center RH |
| 61414 | Panel, Rocker, Center LH |
| 61415 | Panel, Rocker, Rear RH |
| 61416 | Panel, Rocker, Rear LH |
| 61513 | Pillar, Quarter Lock Inner, RH |
| 61514 | Pillar, Quarter Lock, Inner LH |
| 61604 | Brace Sub-assy, Quarter Panel, RH |
| 61605 | Brace Sub-assy, Quarter Panel, LH |
| 61606 | Frame Sub-assy, Back Door Opening Side, RH |
| 61607 | Frame Sub-assy, Back Door Opening Side, LH |
| 61611 | Panel, Quarter, RH |
| 61611C | Extension, Quarter Panel, RH |
| 61612 | Panel, Quarter, LH |
| 61612C | Extension, Quarter Panel, LH |
| 61613 | Patch, Quarter Panel |
| 61625 | Reinforcement, Opening Side Frame, RH |
| 61626 | Reinforcement, Opening Side Frame, LH |
| 61627A | Extension, Quarter Panel, Lower RH |
| 61631 | Panel, Quarter Wheel House, RH |
| 61631D | Reinforcement, Quarter Wheel House, RH |
| 61632 | Panel, Quarter Wheel House, LH |
| 61632D | Reinforcement, Quarter Wheel House, LH |
| 61633 | Extension, Wheel House, RH |
| 61634 | Extension, Wheel House, LH |
| 61648 | Reinforcement, Side Window |
| 61692 | Cover, Quarter Inner, Rear |
| 61692A | Catch, Washer Tank Service Hole Cover |
| 61692B | Knob, Washer Tank Service Hole Cover |
| 61692D | Packing, Quarter Inner Rear Cover |
| 61694 | Cover, Quarter Inner, NO.1 |
| 61694A | Packing, Quarter Service Hole Cover, NO.1 |
| 61695 | Cover, Quarter Inner, NO.2 |
| 61695B | Packing, Quarter Service Hole Cover, NO.2 |
| 61696 | Cover, Quarter Inner, NO.3 |
| 61696B | Packing, Quarter Inner Cover, NO.3 |
| 61697 | Cover, Quarter Inner, NO.4 |
| 61697A | Packing, Quarter Inner Cover, NO.4 |
| 61698 | Cover, Quarter Inner, NO.5 |
| 61698A | Packing, Quarter Inner Cover, NO.5 |
| 61699 | Cover, Quarter Inner, NO.6 |
| 61699A | Packing, Quarter Inner Cover, NO.6 |
| 61705D | Reinforcement, Roof Side, Inner RH |
| 61706D | Reinforcement, Roof Side, Inner LH |
| 61707 | Panel Sub-assy, Quarter, Inner RH |
| 61707E | Extension, Quarter Inner Panel, RH |
| 61708 | Panel Sub-assy, Quarter, Inner LH |
| 61708E | Extension, Quarter Inner Panel, LH |
| 61725 | Box, Fuel Inlet |
| 61728 | Reinforcement, Quarter Panel, Front RH |
| 61729 | Reinforcement, Quarter Panel, Front LH |
| 61733 | Gusset, Quarter, Inner RH |
| 61734 | Gusset, Quarter, Inner LH |
| 61783 | Patch, Quarter Panel Inner |
| 61786 | Strength, Quarter Panel Vertical |
| 61791 | Brace, Quarter Inner Panel |
| 61805 | Bracket Sub-assy, Rear Seat Leg, NO.1 |
| 61806 | Bracket Sub-assy, Rear Seat Leg, NO.2 |
| 64750D | Cover, Deck Side Trim, Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
