Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

16 part groups · 2 illustrations

Illustrations

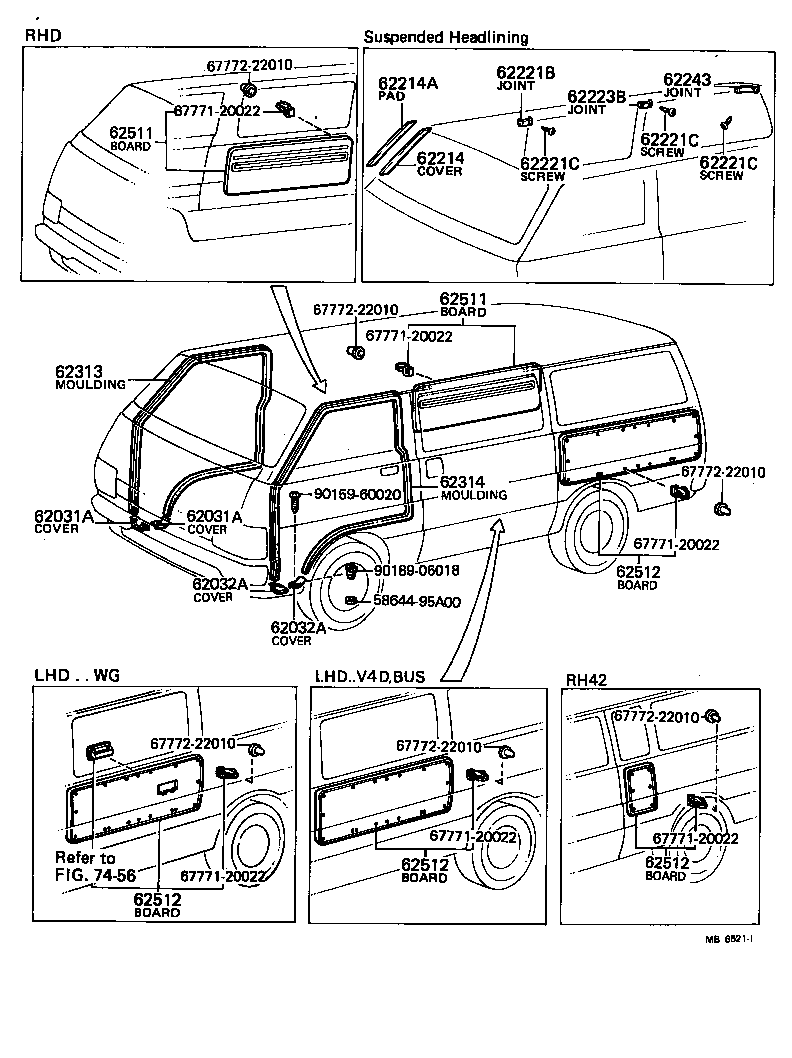

Figure MB6836F MB6836F 1977-02 → — Figure MB6521I MB6521I 1977-02 → —

Part groups

PNCDescription
62031A Cover, Front Door Opening, RH
62032A Cover, Front Door Opening, LH
62033A Cover, Rear Door Opening, RH
62034A Cover, Rear Door Opening, LH
62214 Cover, Front Pillar, Inner
62214A Pad, Front Pillar, Inner
62221B Joint, Center Pillar
62221C Screw, Pillar Joint Setting
62223B Joint, Quarter Lock Pillar
62243 Joint, Quarter Inner Cover
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62315 Moulding, Rear Door Opening Trim, RH
62316 Moulding, Rear Door Opening Trim, LH
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
