Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

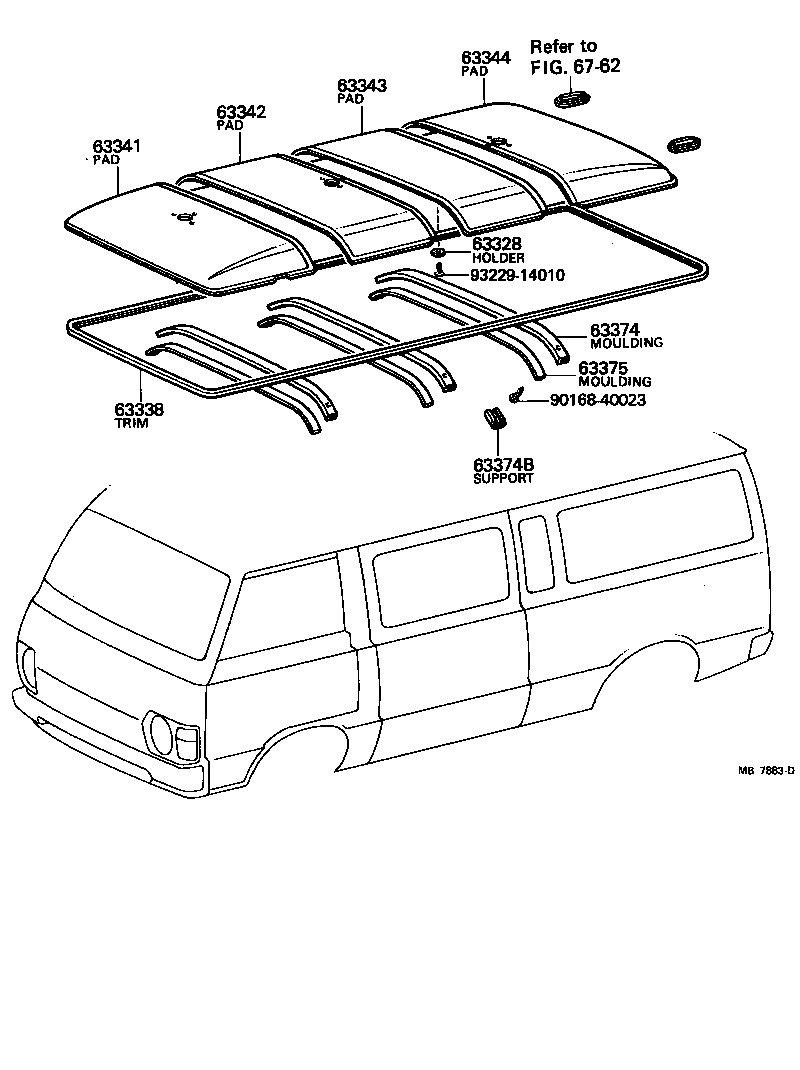

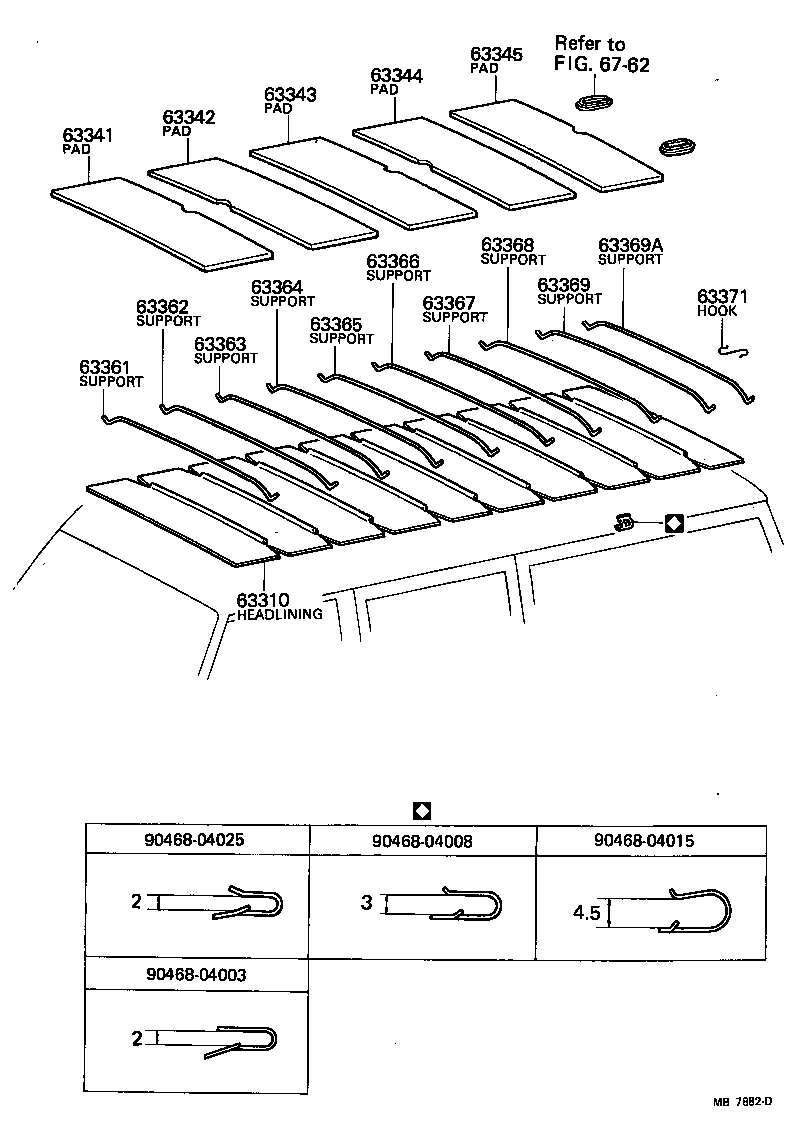

Roof Headlining & Silencer Pad
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63328 | Holder, Roof Lining |
| 63338 | Trim, Roof Lining |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63368 | Support, Roof Headlining, NO.8 |
| 63369 | Support, Roof Headlining, NO.9 |
| 63369A | Support, Roof Headlining, NO.10 |
| 63371 | Hook, Roof Headlining Support |
| 63374 | Moulding, Roof Board Set |
| 63374B | Support, Roof Inner Board Set Moulding |
| 63375 | Moulding, Roof Vinyl |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
