Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

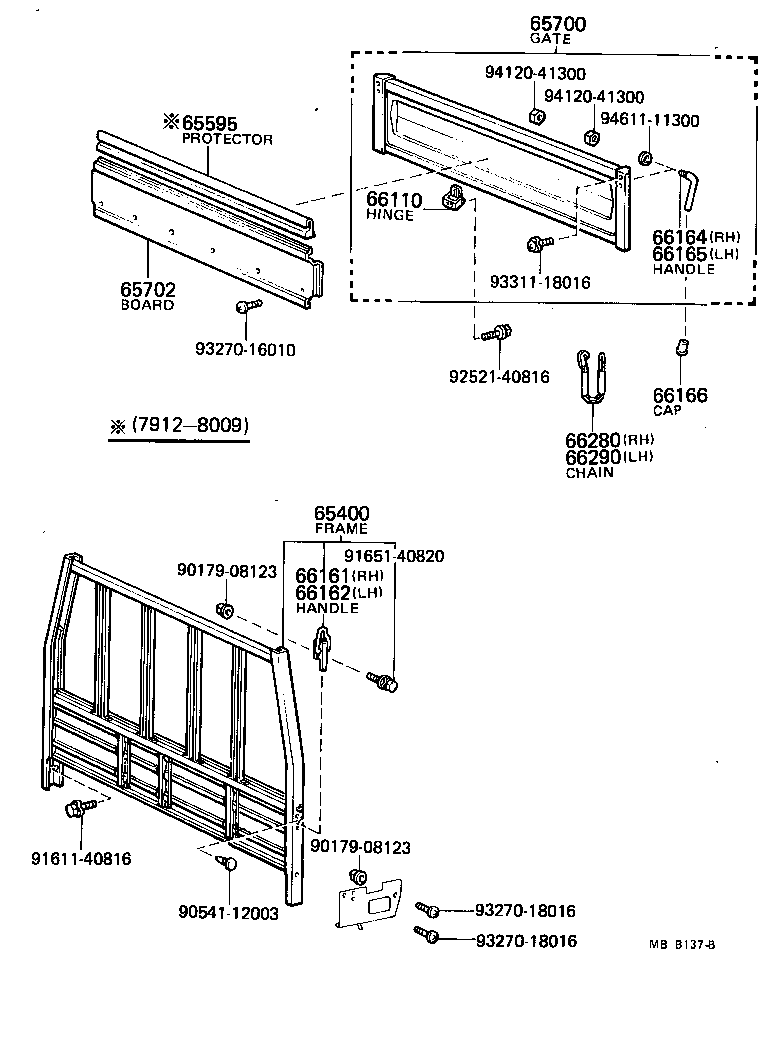

Rear Body Guard Frame & Tail Gate
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65400 | Frame Assy, Rear Body Guard |
| 65595 | Protector, Board Inside, Upper |
| 65700 | Gate Assy, Rear Body Tail |
| 65702 | Board Sub-assy, Tail Gate |
| 66110 | Hinge Assy, Tail Gate |
| 66110B | Retainer, Tail Gate Hinge, Lower |
| 66161 | Handle, Side Gate Latch, RH |
| 66162 | Handle, Side Gate Latch, LH |
| 66164 | Handle, Tail Gate Latch, RH |
| 66165 | Handle, Tail Gate Latch, LH |
| 66166 | Cap, Gate Latch Handle |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66280 | Chain Assy, Tail Gate, RH |
| 66290 | Chain Assy, Tail Gate, LH |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
