Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

22 part groups · 2 illustrations

Illustrations

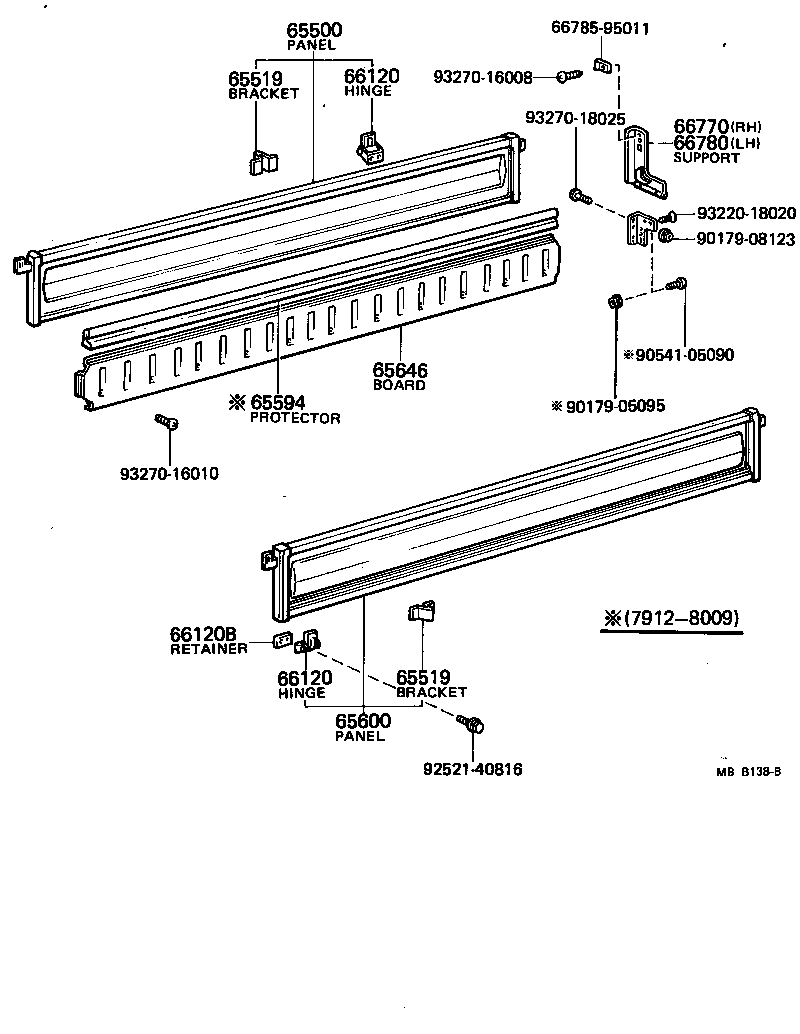

Figure MB6956G MB6956G 1977-02 → — Figure MBB138B MBB138B 1979-12 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65519 Bracket, Top Rail
65594 Protector, Board Inside, Upper
65600 Panel Assy, Rear Body Side, LH
65610 Skirt Assy, Side Panel, Front RH
65620 Skirt Assy, Side Panel, Front LH
65631 Skirt, Side Panel, Rear RH
65632 Skirt, Side Panel, Rear, LH
65646 Board, Side Gate
65651 Panel, Wheel House
65671 Brace, Side Panel Skirt, Front
66120 Hinge Assy, Side Gate
66120B Retainer, Side Gate Hinge, Lower
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66332 Cushion, Rubber
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
