Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

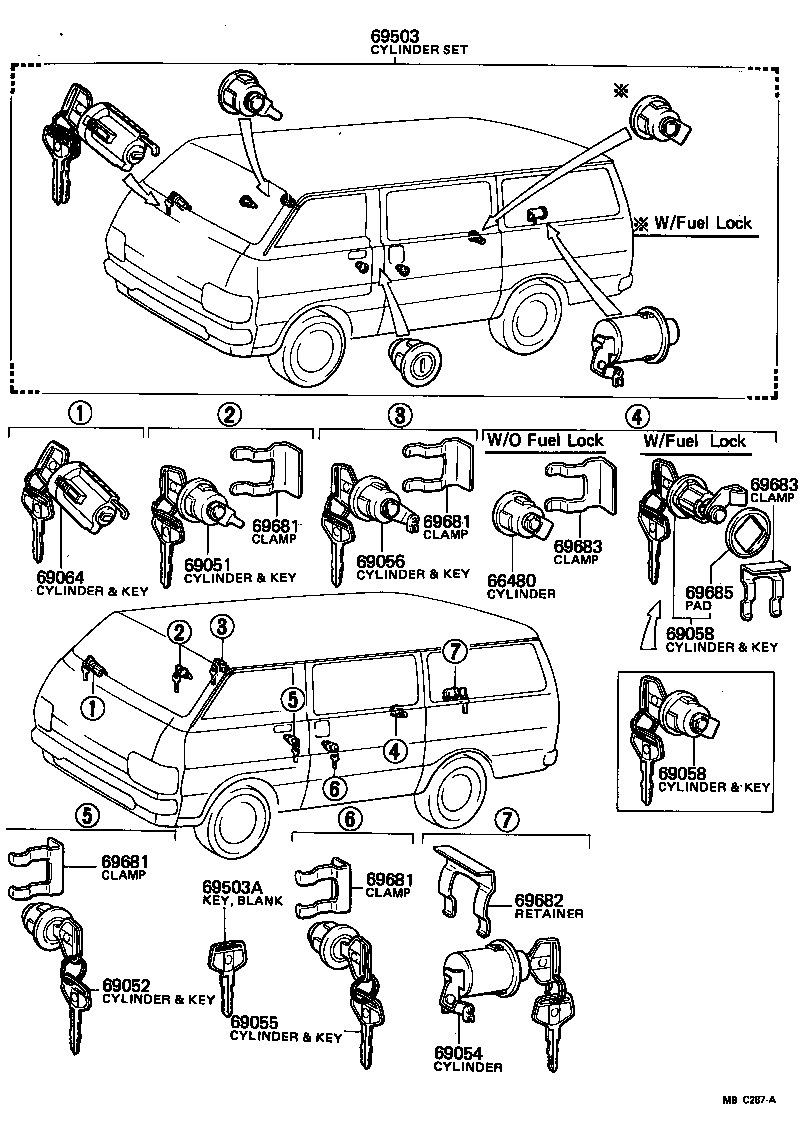

Figure MB6959B MB6959B 1977-02 → — Figure MBC287A MBC287A 1977-02 → —

Part groups

PNCDescription
66480 Cylinder Assy, Fuel Door
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69055 Cylinder & Key Set, Rear Door Lock, LH
69056 Cylinder & Key Set, Rear Door Lock, RH
69058 Cylinder & Key Set, Fuel Filler Lid
69064 Cylinder & Key Set, Ignition Switch Lock
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
