Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

15 part groups · 2 illustrations

Illustrations

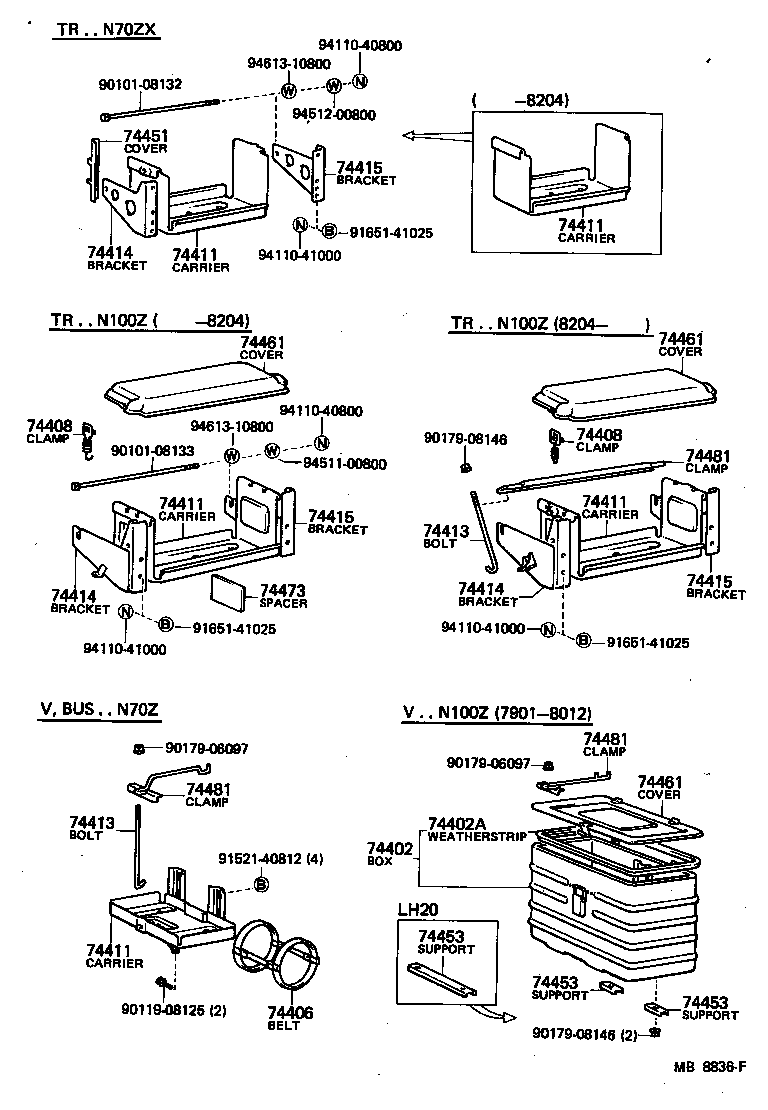

Figure MB6556G MB6556G 1977-02 → — Figure MB8836F MB8836F 1979-01 → —

Part groups

PNCDescription
74402 Box Sub-assy, Battery
74402A Weatherstrip, Battery Box
74406 Belt Sub-assy, Battery
74408 Clamp Sub-assy, Battery Cover
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414 Bracket, Battery, FR
74415 Bracket, Battery, Rear
74451 Plate, Battery Carrier Support
74453 Support, Battery Carrier
74461 Cover, Battery
74471 Shim, Battery Set Angle
74472 Pad, Battery Side
74473 Spacer, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
