Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

7 part groups · 2 illustrations

Illustrations

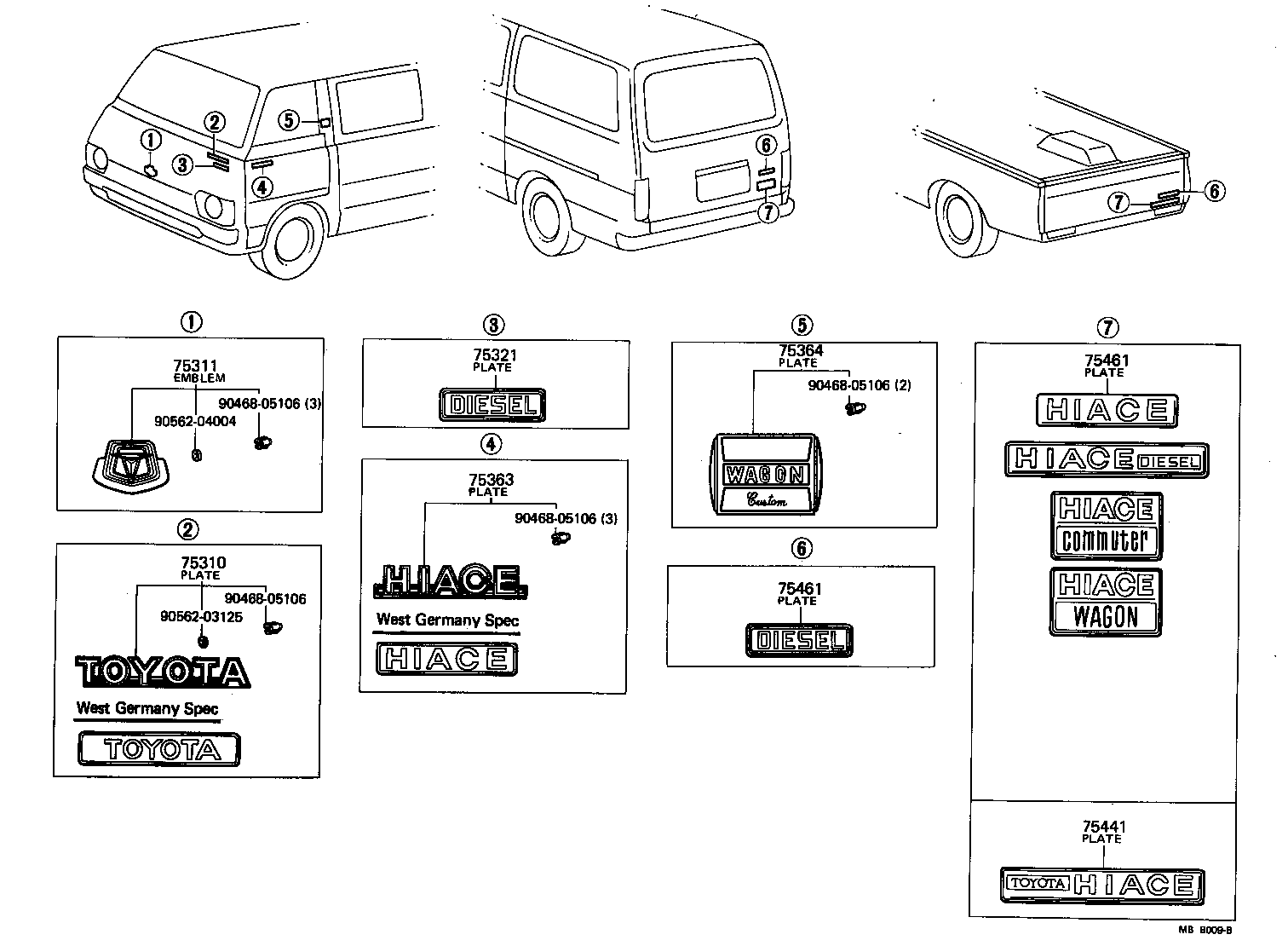

Figure MB6961F MB6961F 1977-02 → 1979-12 Figure MBB009B MBB009B 1979-12 → —

Part groups

PNCDescription
75310 Plate Assy, Front Panel
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75363 Plate, Door Name
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
