Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

14 part groups · 2 illustrations

Illustrations

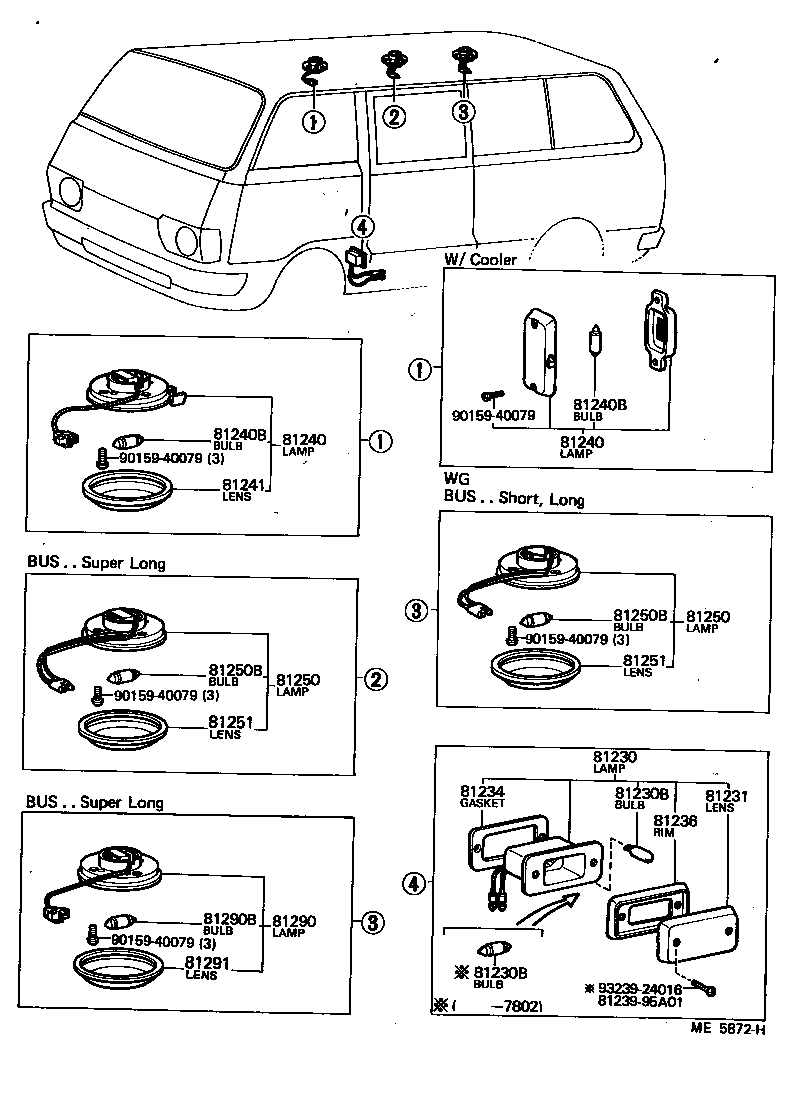

Figure ME8908 ME8908 1977-02 → — Figure ME5872H ME5872H 1977-02 → —

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81231 Lens, Courtesy Lamp
81234 Gasket, Courtesy Lamp
81236 Rim, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
81291 Lens, Room Lamp, NO.3(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
