Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06
Heating & Air Conditioning - Heater Unit & Blower
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |

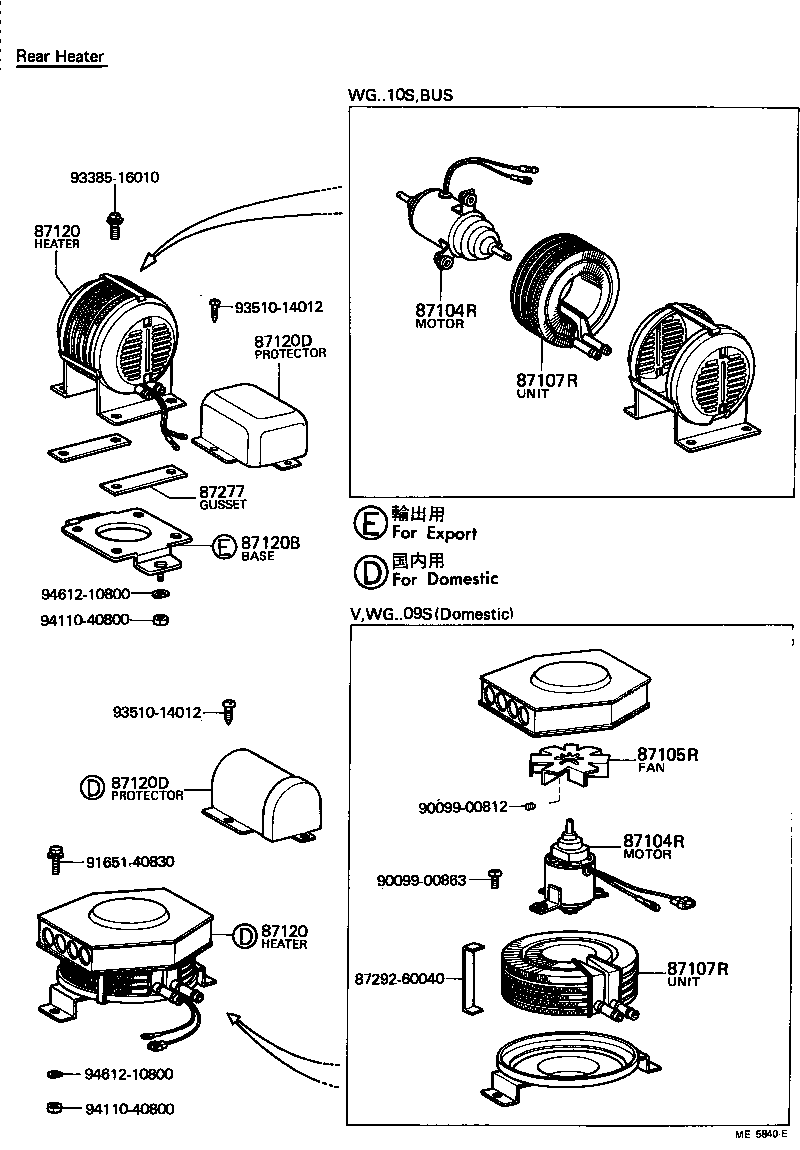

| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87111 | Case, Heater |
| 87111A | Case, Heater |

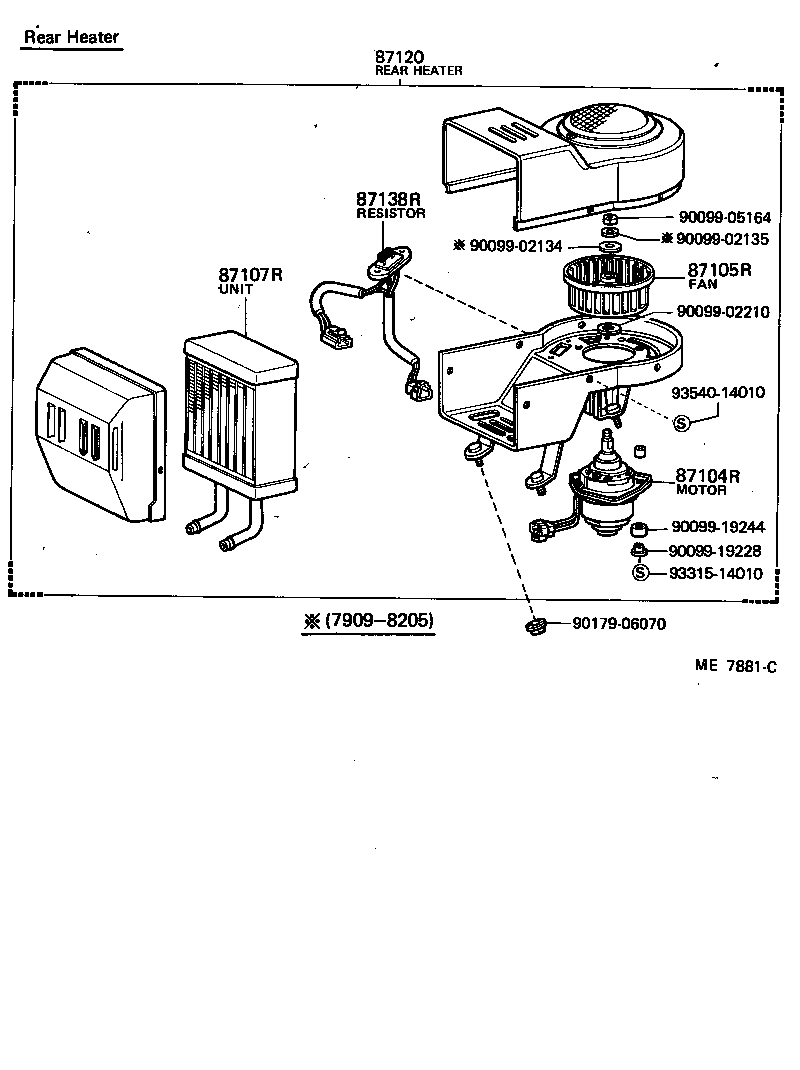

| 87120 | Heater Assy, Rear |
| 87120B | Base, Rear Heater, NO.1 |
| 87120D | Protector, Rear Heater Pipe Joint |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87188 | Packing, Heater Blower Motor |
| 87240H | Valve Assy, Water Unit |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 87277 | Gusset, Heater Setting, NO.1 |

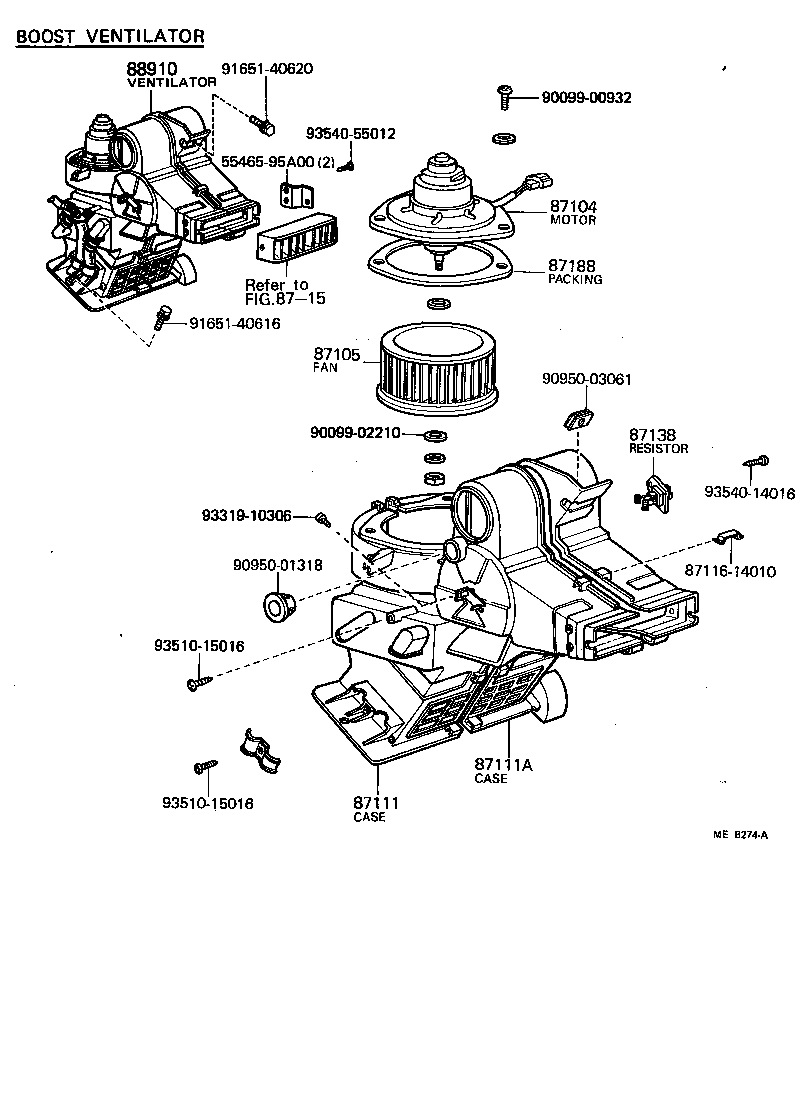

| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
