Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

43 part groups · 19 illustrations

Illustrations

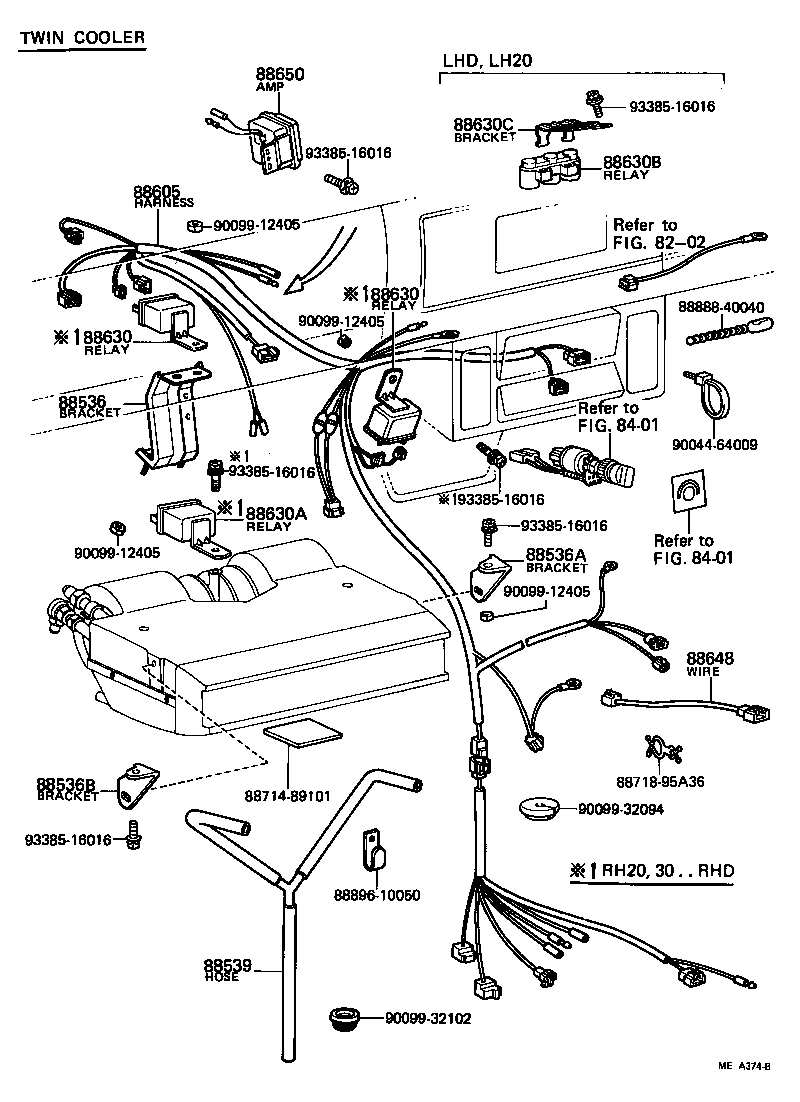

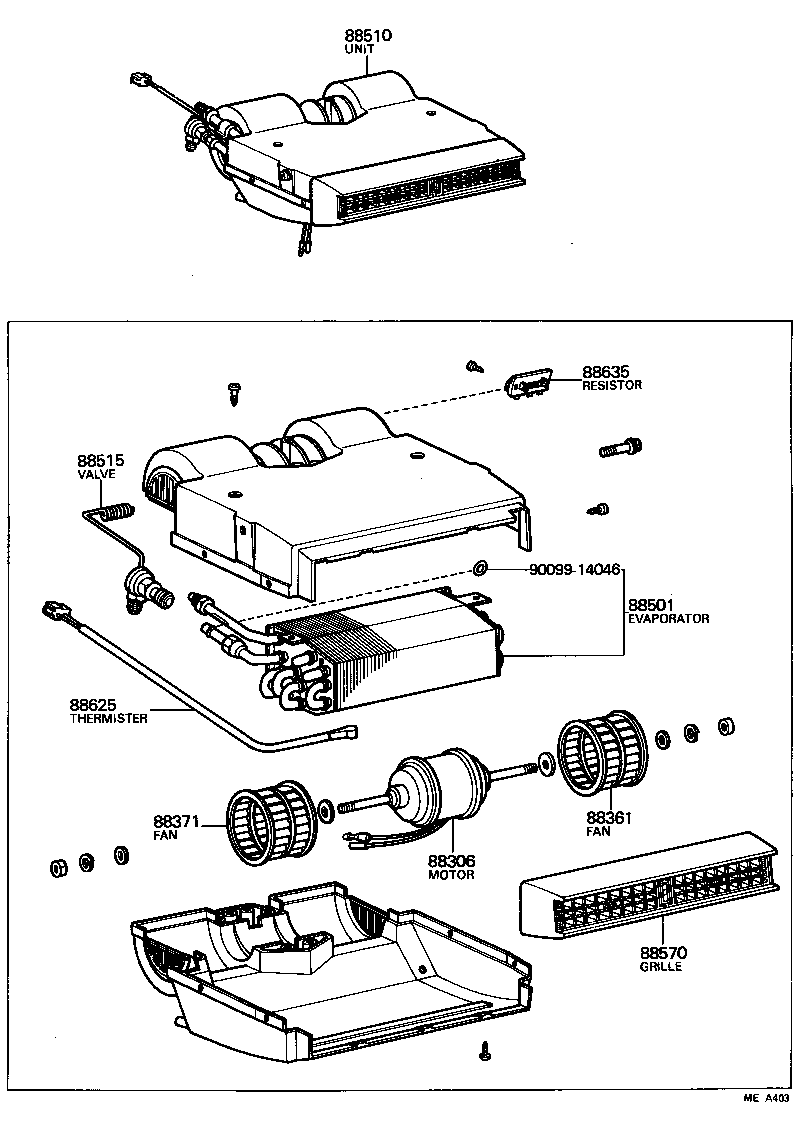

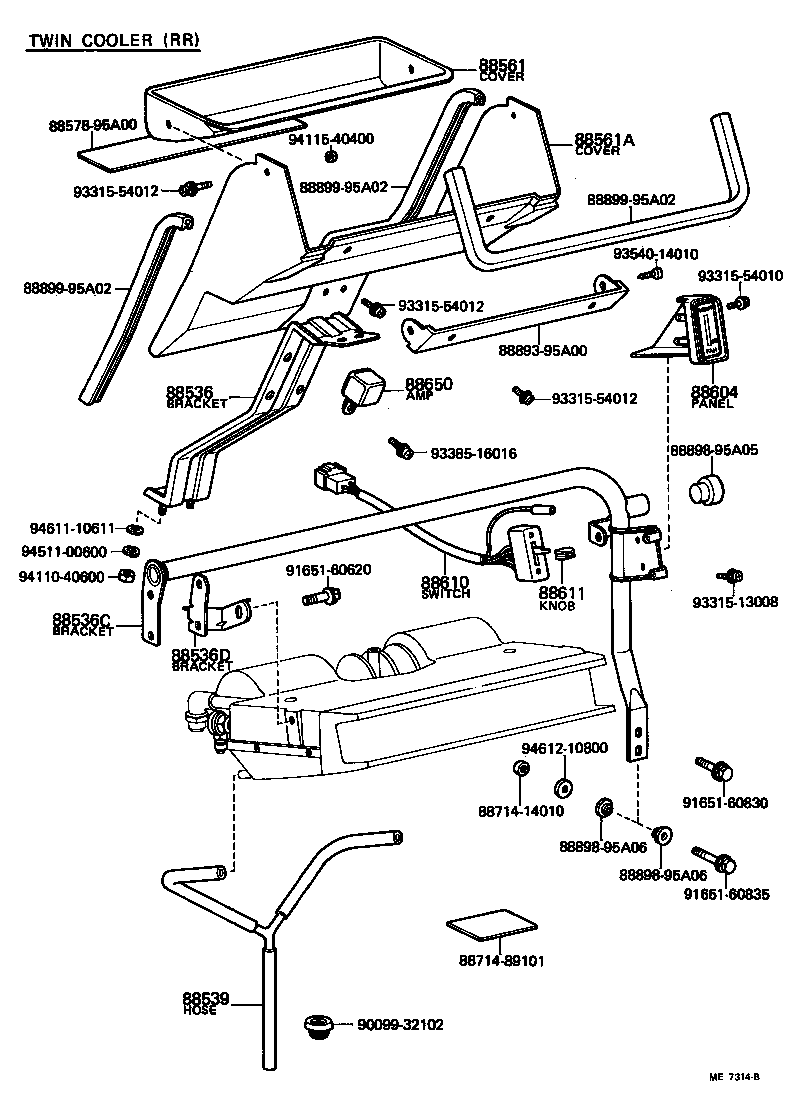

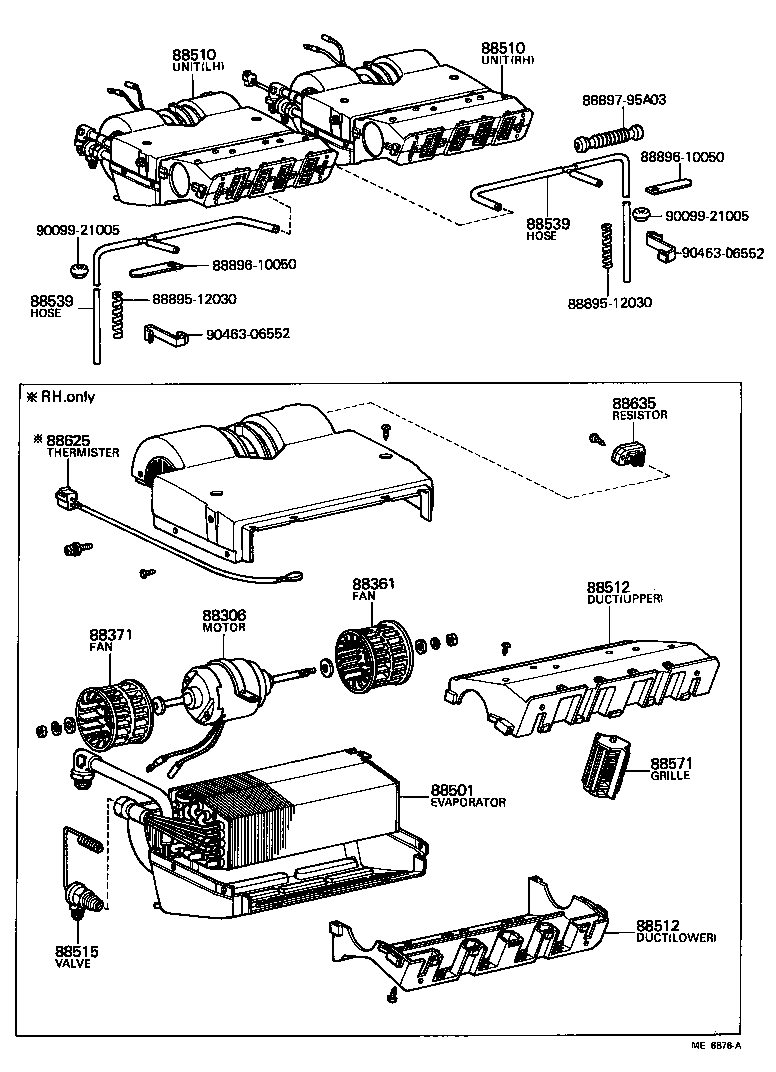

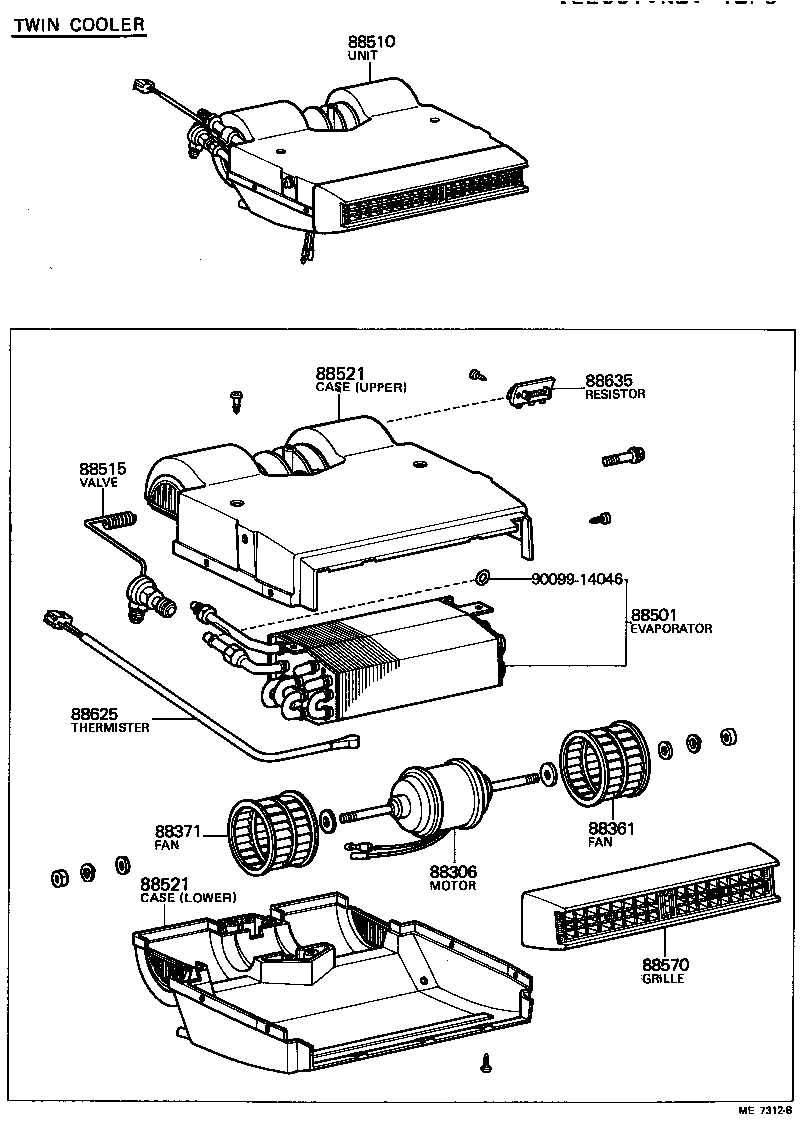

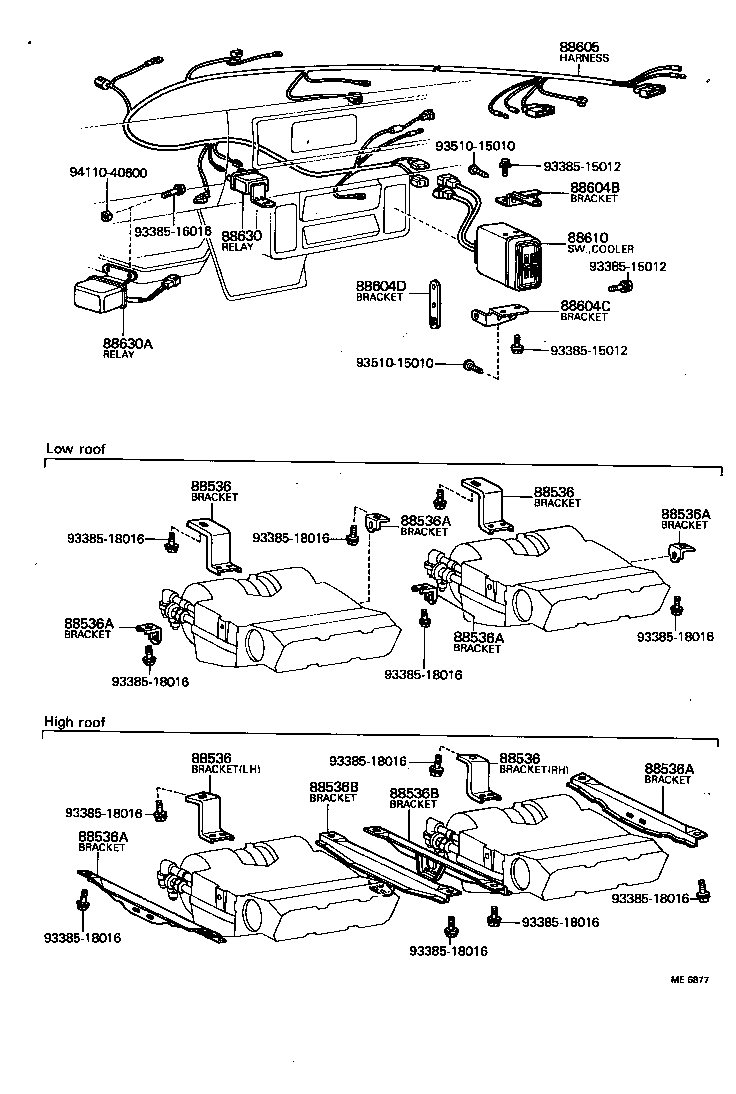

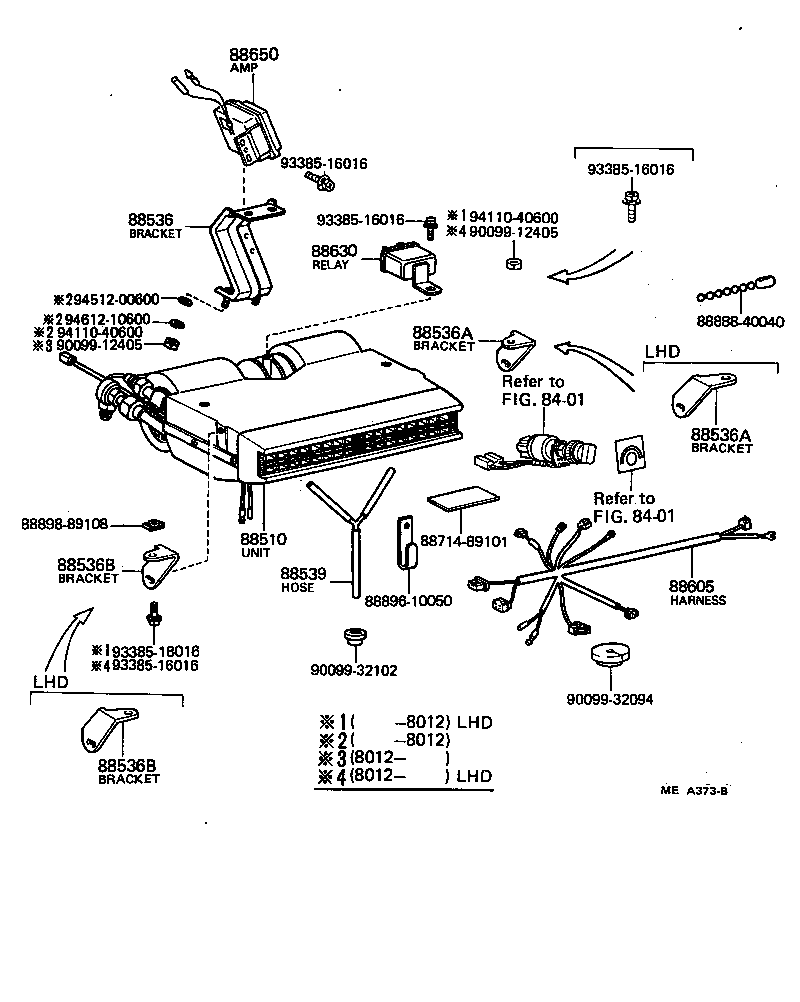

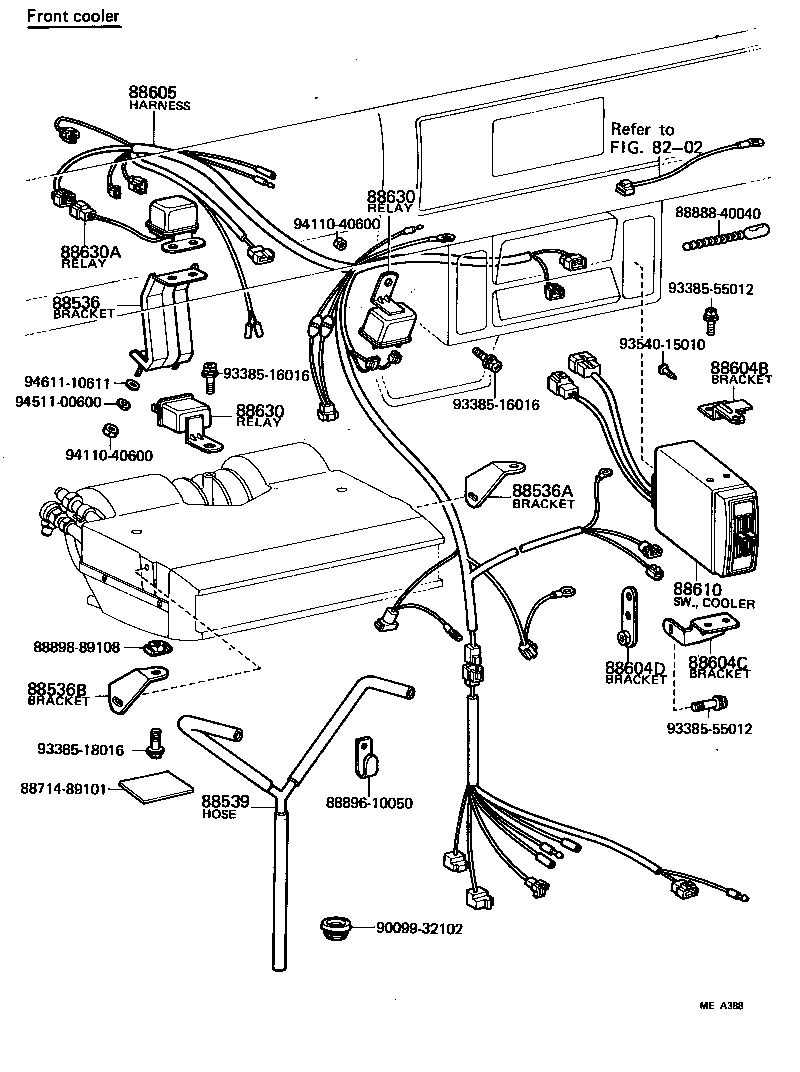

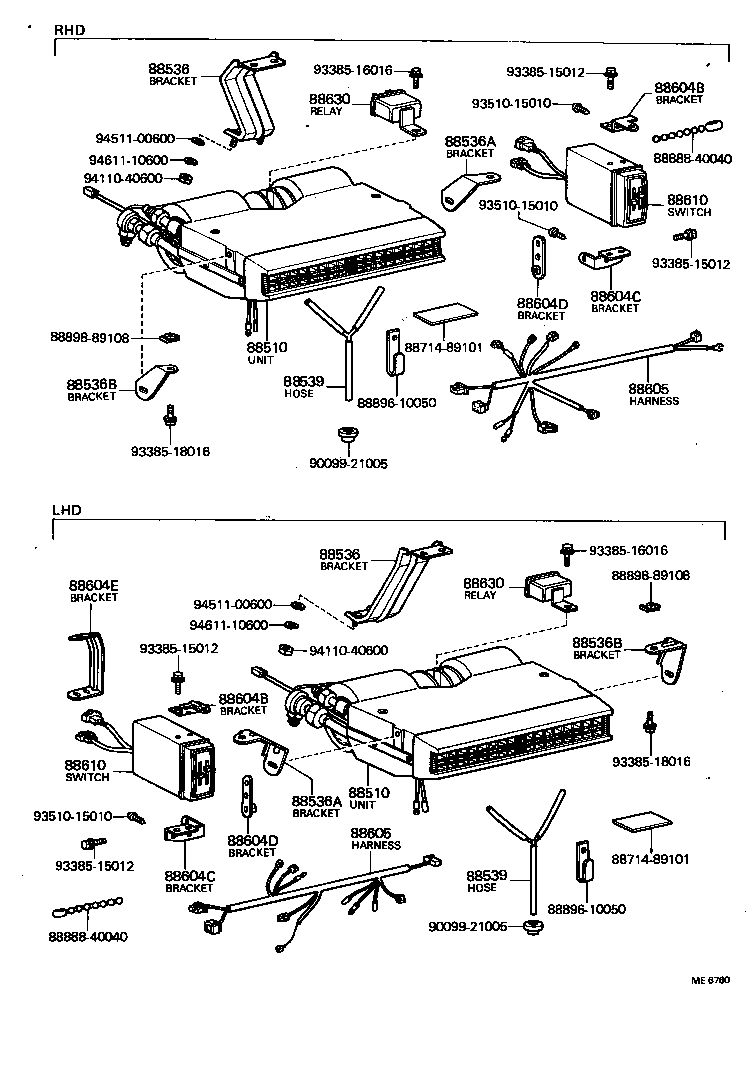

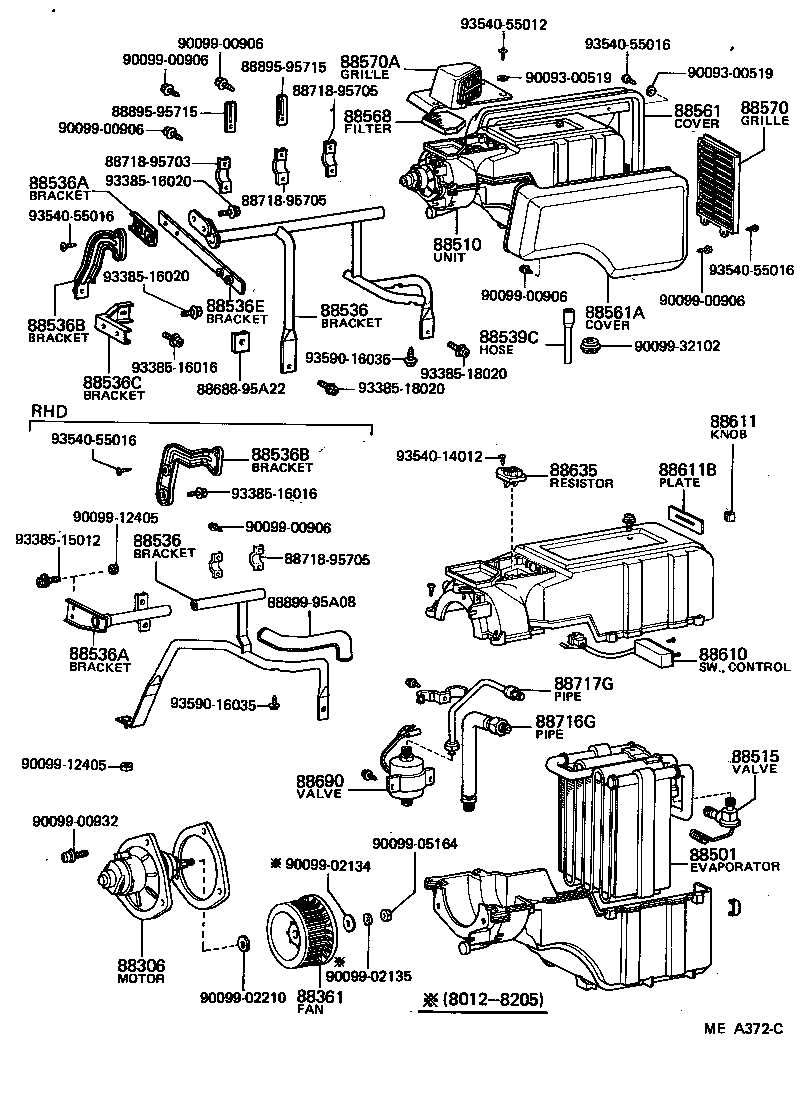

Figure ME6758D ME6758D 1977-02 → 1979-12 Figure ME6760 ME6760 1977-02 → 1978-04 Figure ME6760 ME6760 1977-02 → 1979-12 Figure ME6876A ME6876A 1977-02 → 1978-04 Figure ME6877 ME6877 1977-02 → 1978-04 Figure MEA403 MEA403 1979-12 → — Figure MEA373B MEA373B 1979-12 → — Figure ME7312B ME7312B 1978-04 → 1979-12 Figure ME7312B ME7312B 1980-12 → — Figure ME7312B ME7312B 1981-03 → — Figure ME7312B ME7312B 1981-05 → — Figure MEA372C MEA372C 1980-12 → — Figure MEA372C MEA372C 1981-03 → — Figure MEA372C MEA372C 1981-05 → — Figure ME7314B ME7314B 1978-04 → 1979-12 Figure MEA388 MEA388 1978-04 → 1979-12 Figure MEA374B MEA374B 1980-12 → — Figure MEA374B MEA374B 1981-03 → — Figure MEA374B MEA374B 1981-05 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88512 Duct, Air
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536D Cover, Cooler Unit Bracket
88536E Bracket, Cooling Unit, NO.5
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88561 Cover, Cooler Unit
88561A Cover, Cooler Unit, A
88568 Filter, Cooler Unit Cover
88570 Grille Sub-assy, Cooler Air Outlet
88570A Grille Assy, Air Outlet
88571 Grille, Air Outlet
88604 Panel Sub-assy, Cooler Control
88604B Bracket, Switch, NO.1
88604C Bracket, Switch, NO.2
88604D Bracket, Switch, NO.3
88604E Bracket, Switch, NO.4
88605 Harness Sub-assy, Cooler Wiring, NO.1
88610 Switch Assy, Cooler Control
88611 Knob, Cooler Control Switch
88611B Plate, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88690 Valve Assy, Cooler Magnet
88716G Pipe, Cooler Refrigerant Liquid, G
88717G Pipe, Cooler Refrigerant Suction, G
88891D Packing D (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
