Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 4 illustrations

Illustrations

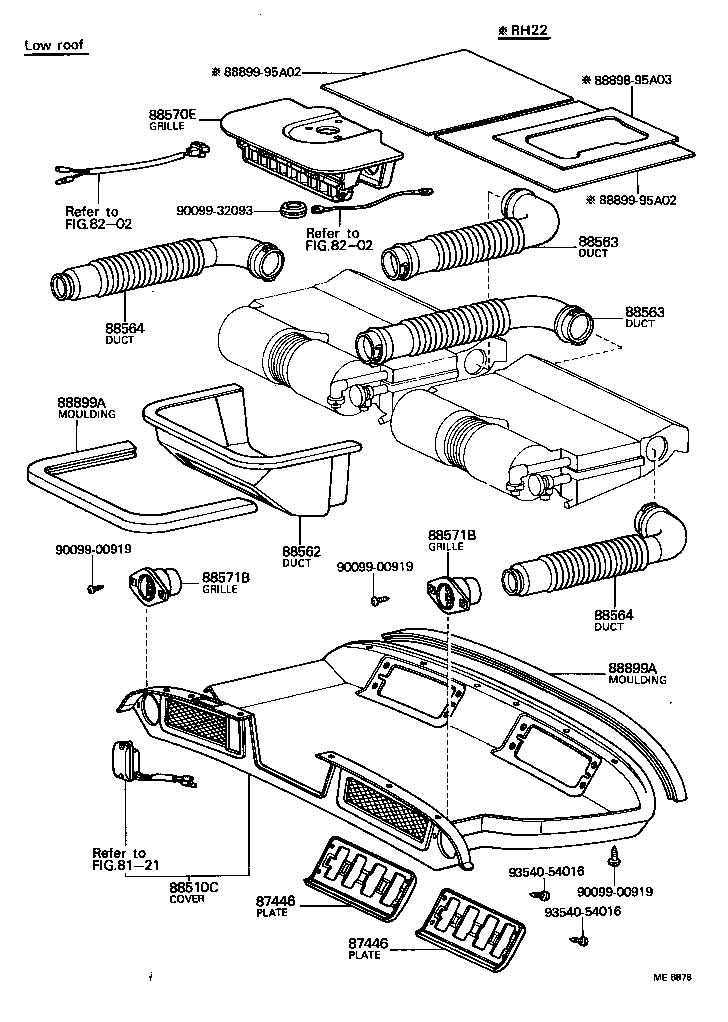

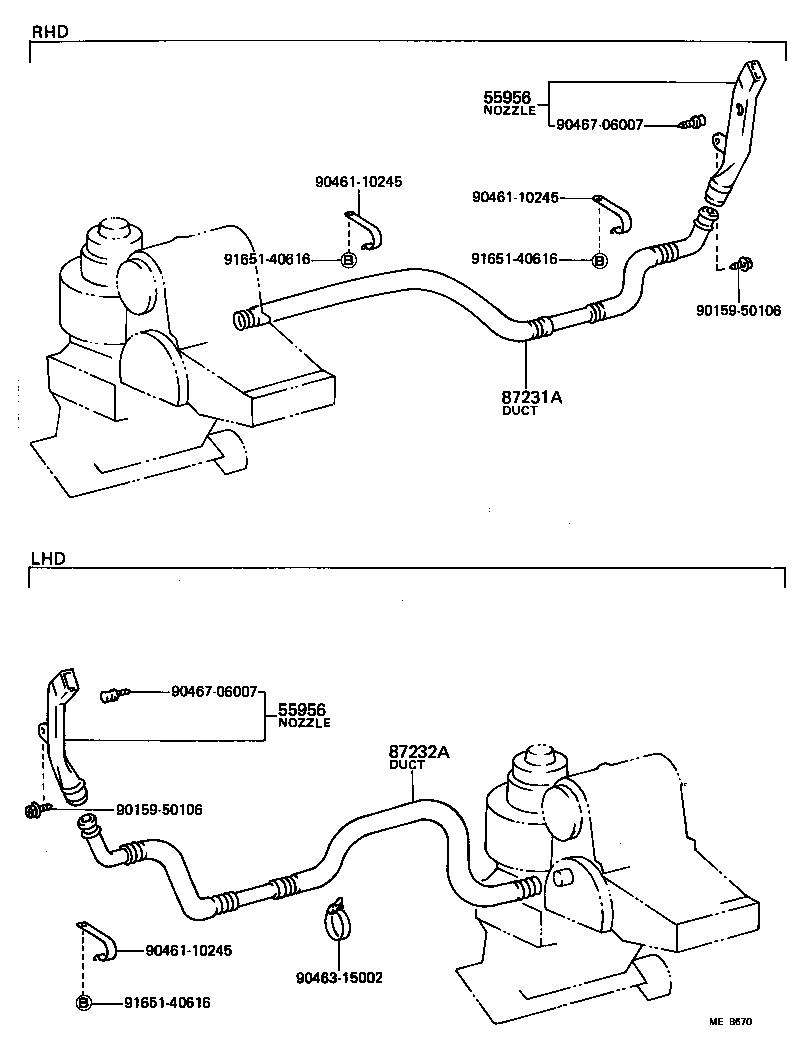

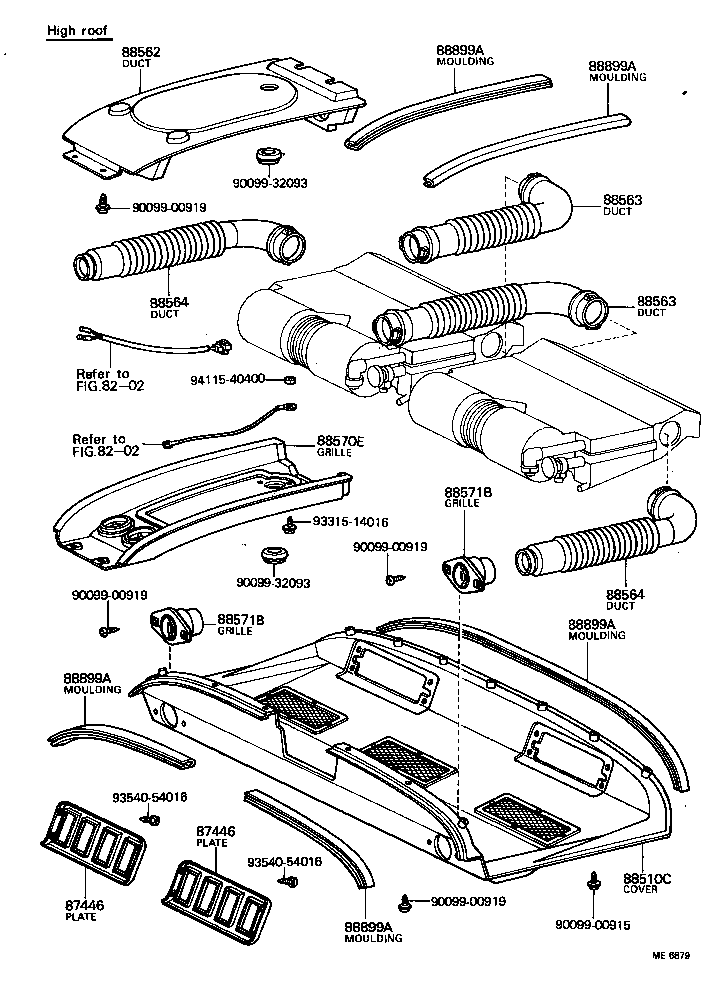

Figure ME5841D ME5841D 1977-02 → — Figure MEB670 MEB670 1982-03 → — Figure ME6878 ME6878 1977-02 → 1978-04 Figure ME6879 ME6879 1977-02 → 1978-04

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55918 Retainer, Heater Control Lever
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
55956 Nozzle, Side Defroster
87125 Louver, Ventilation
87174 Guide, Air Duct
87231A Duct, Heater Defroster, Side NO.1 RH
87232A Duct, Heater Defroster, Side NO.1 LH
87446 Plate, Air Duct
88510C Cover Assy, Cooler Unit
88562 Duct Sub-assy, Cooler, NO.1
88563 Duct Sub-assy, Cooler, NO.2
88564 Duct Sub-assy, Cooler, NO.3
88570E Grille Assy, Air Outlet
88571B Grille, Air Outlet
88899A Moulding, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
