Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

9 part groups · 5 illustrations

Illustrations

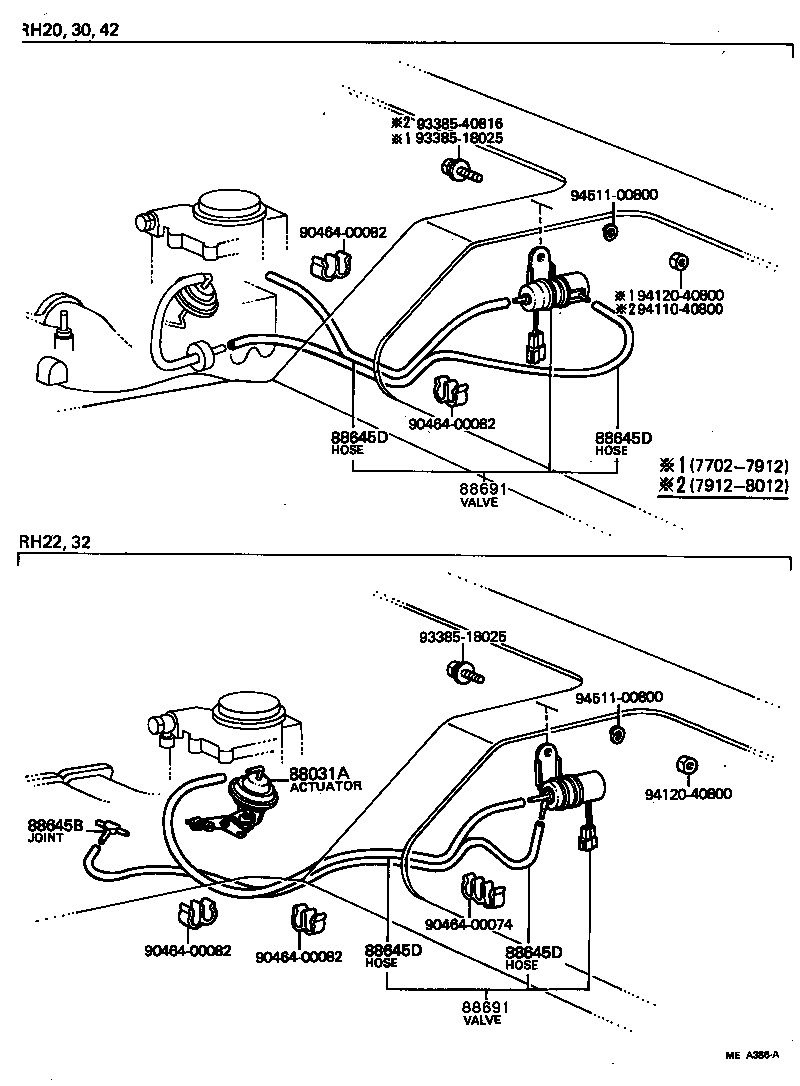

Figure MEA385A MEA385A 1977-02 → 1979-12 Figure MEA385A MEA385A 1979-12 → 1980-12 Figure MEA385A MEA385A 1981-03 → — Figure MEA386A MEA386A 1977-02 → 1979-12 Figure MEA524 MEA524 1980-12 → —

Part groups

PNCDescription
87293E Union, Hose
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031G Ring, Snap(FOR IDLE-UP ACTUATOR)
88603 Wire, Idle UP Device
88630E Relay Assy, Cooler
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
