Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

62 part groups · 21 illustrations

Illustrations

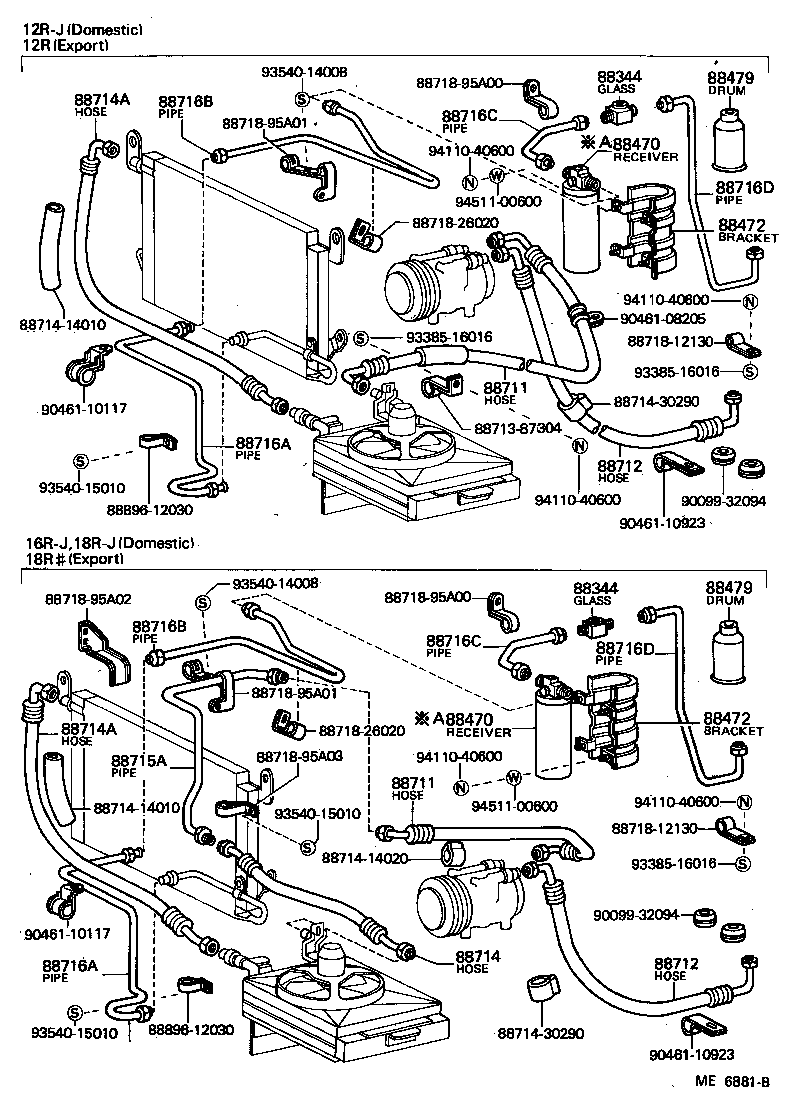

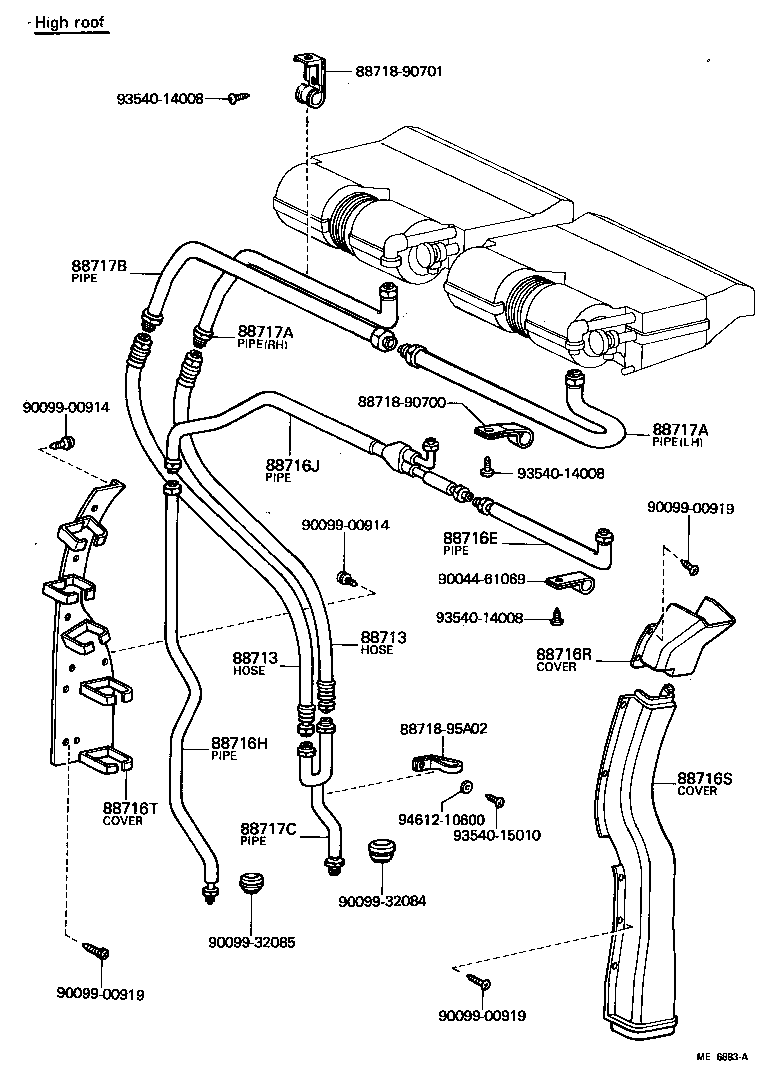

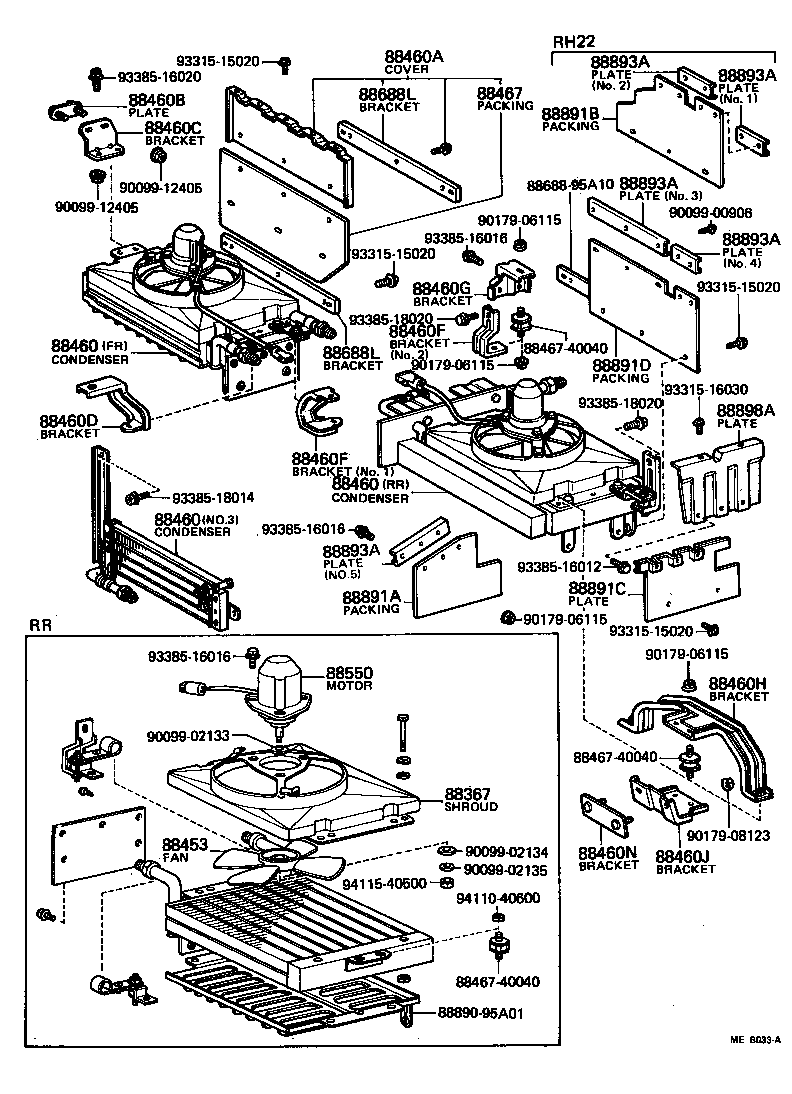

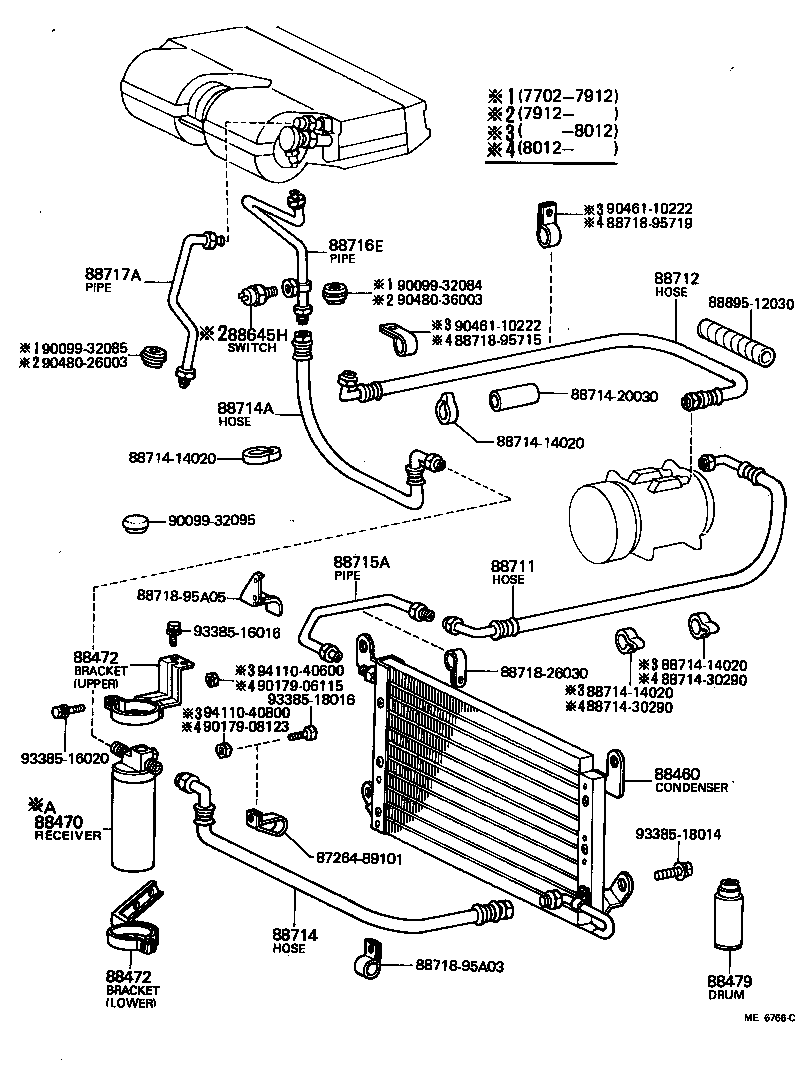

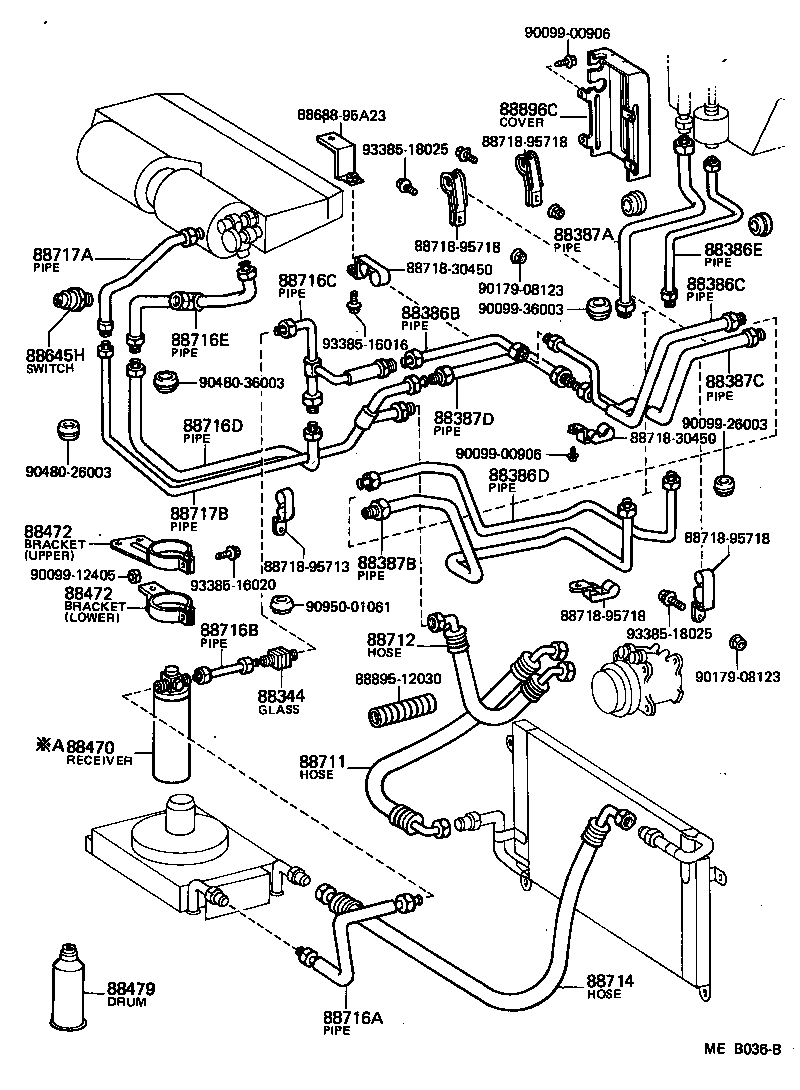

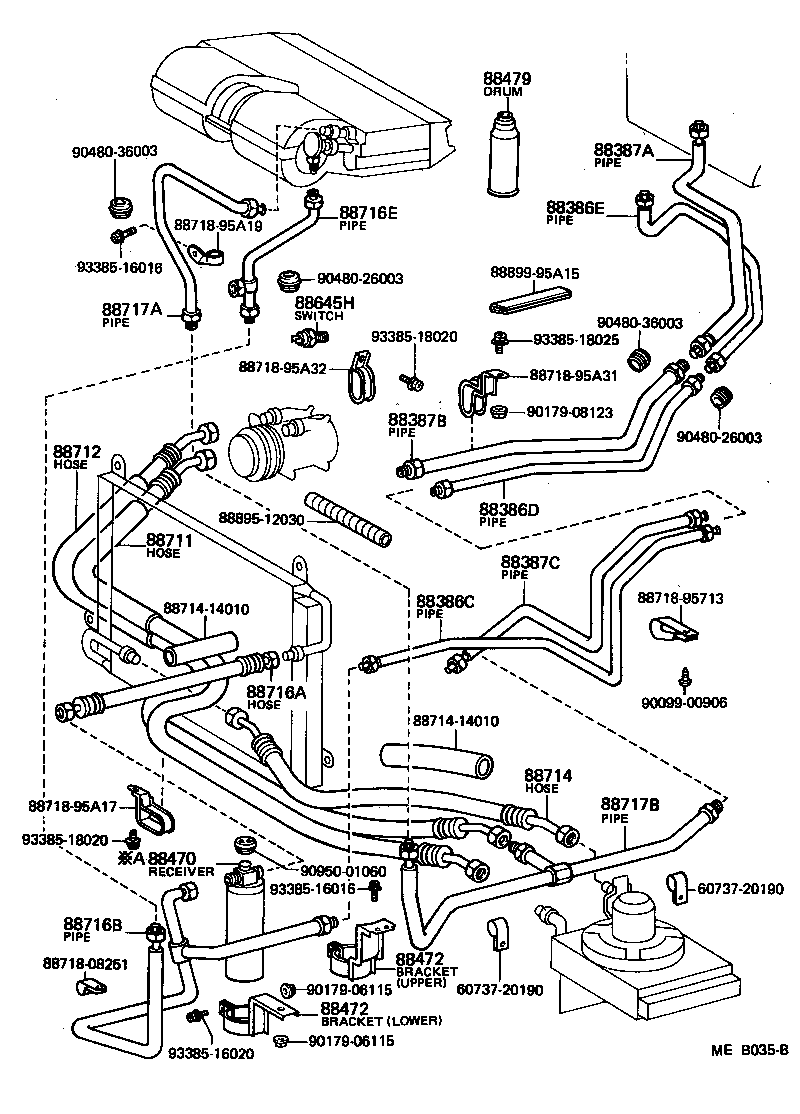

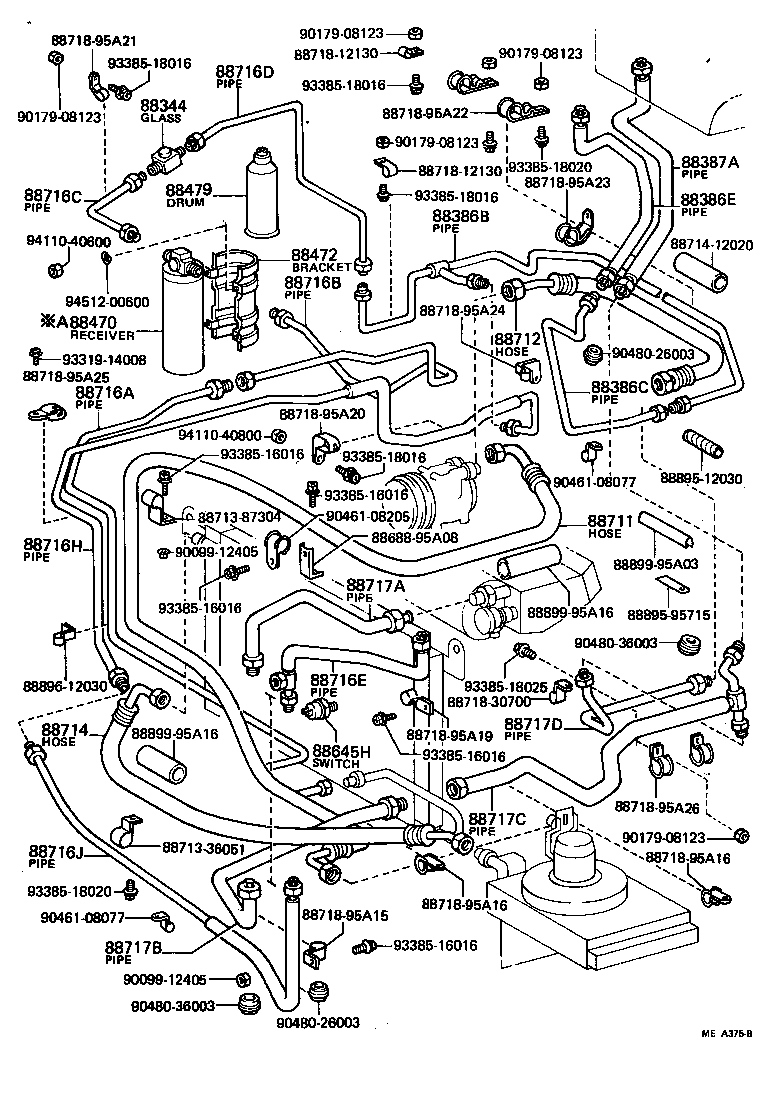

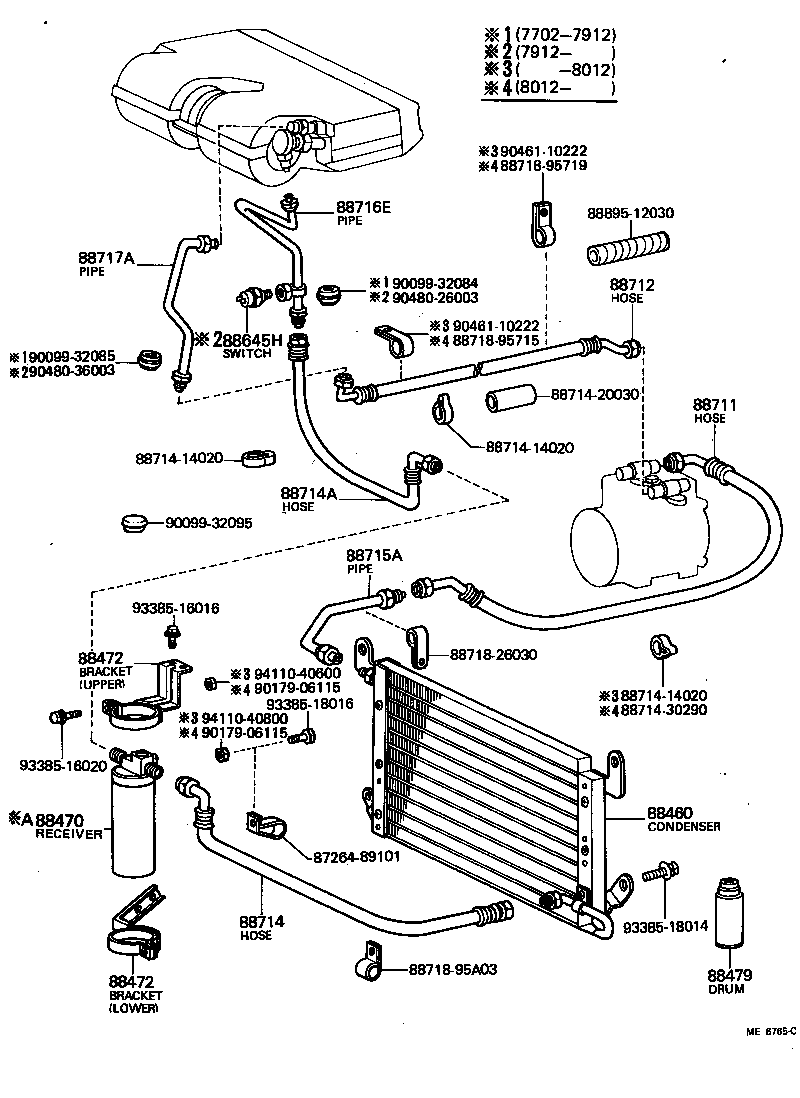

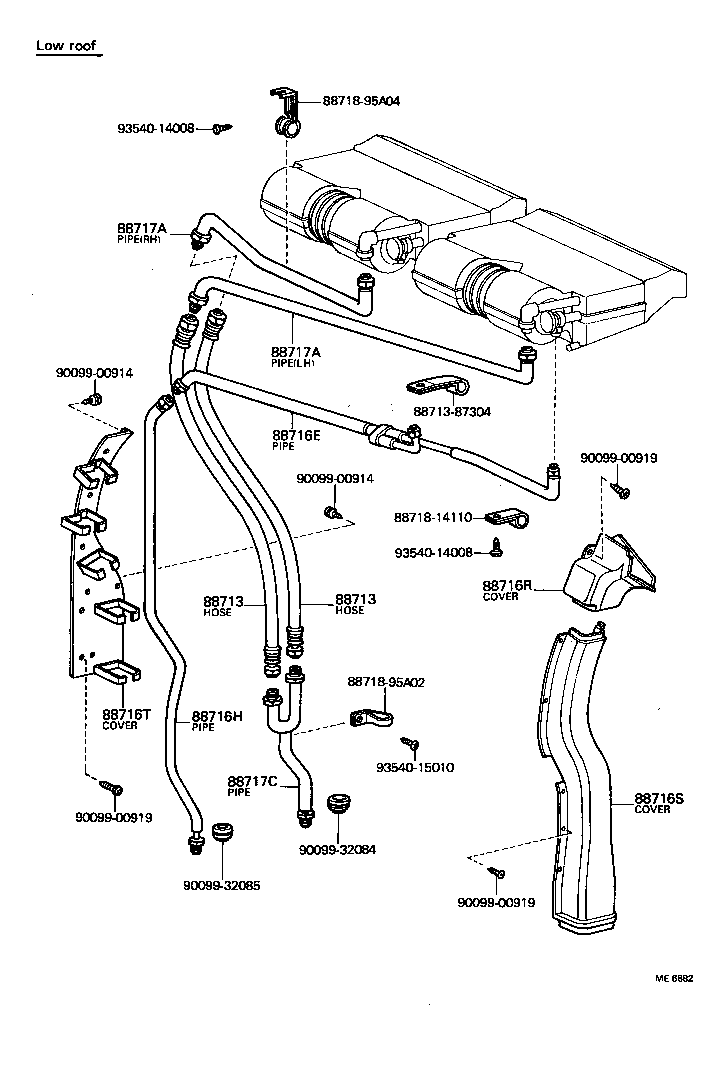

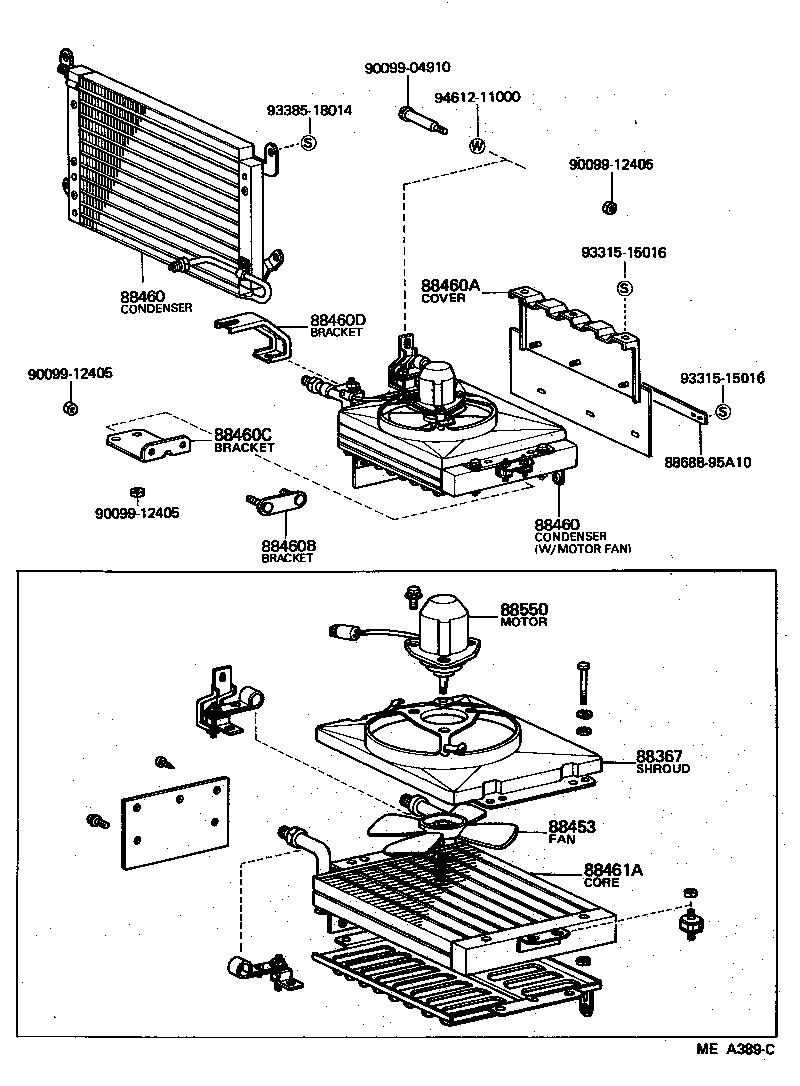

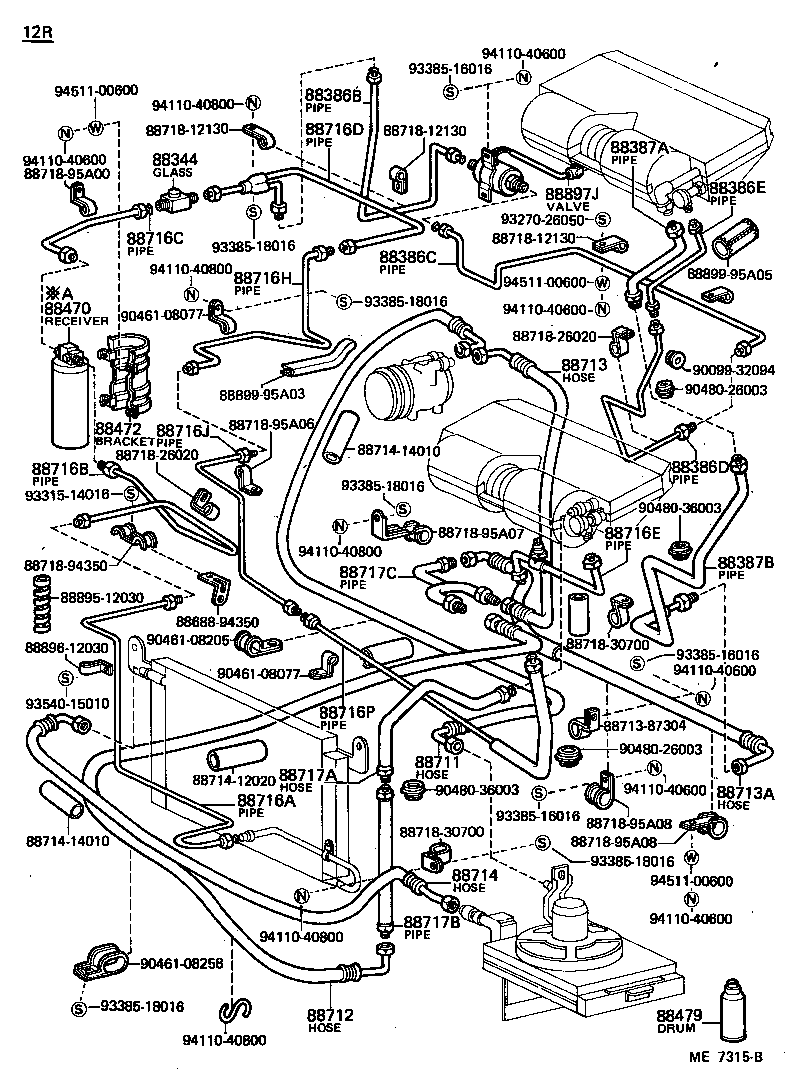

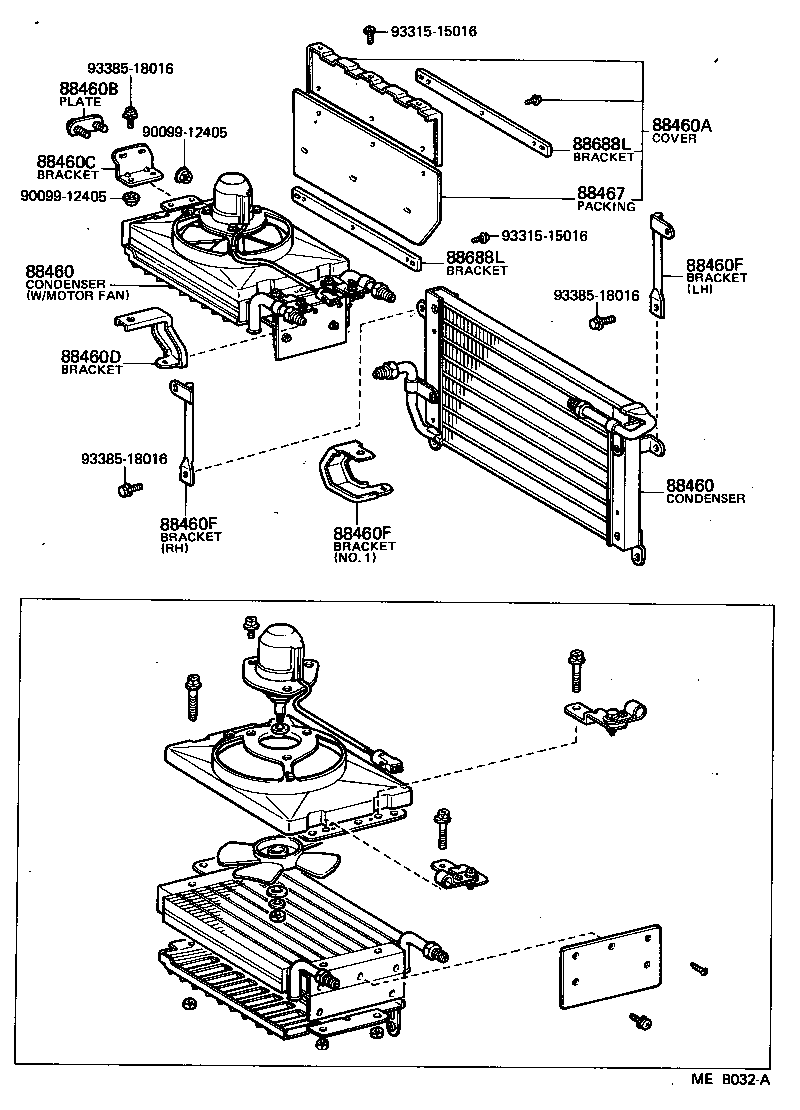

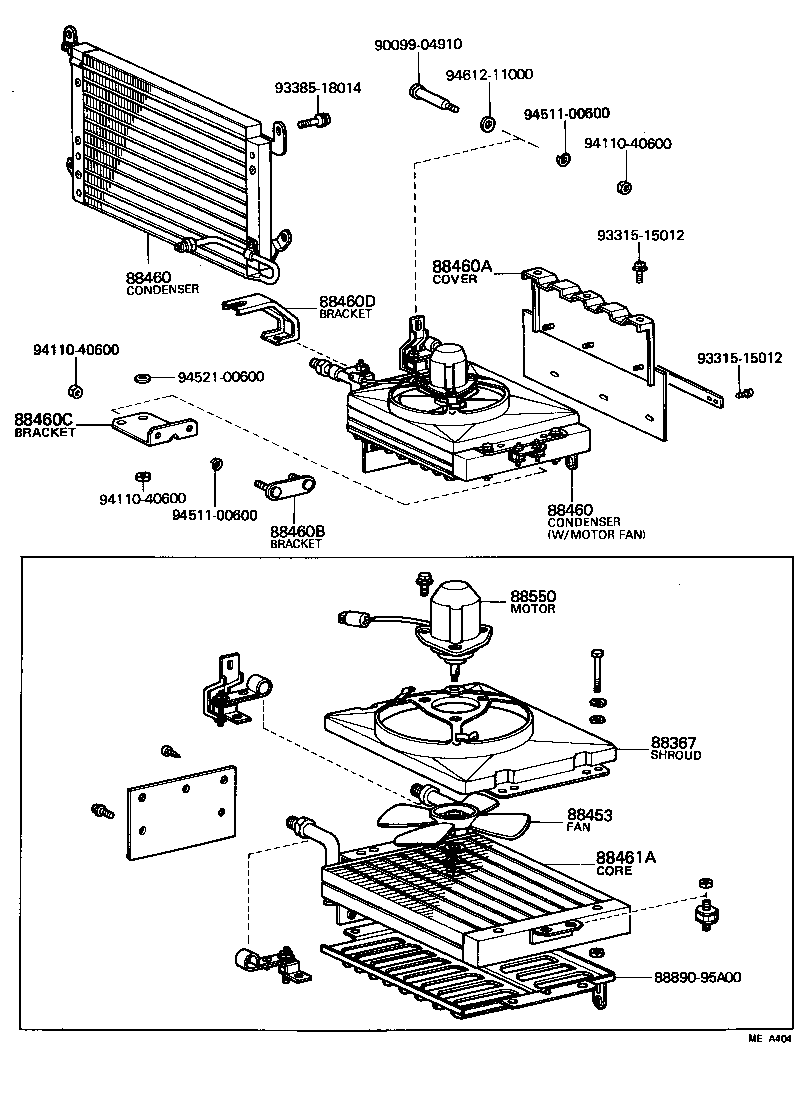

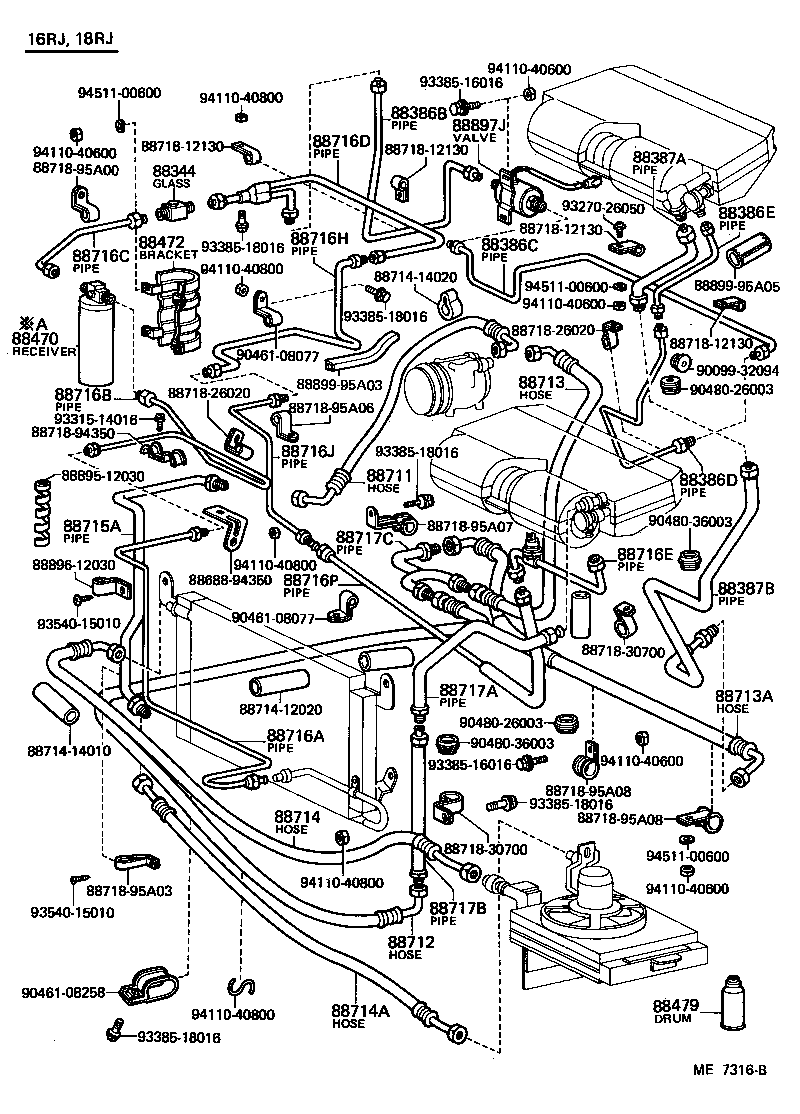

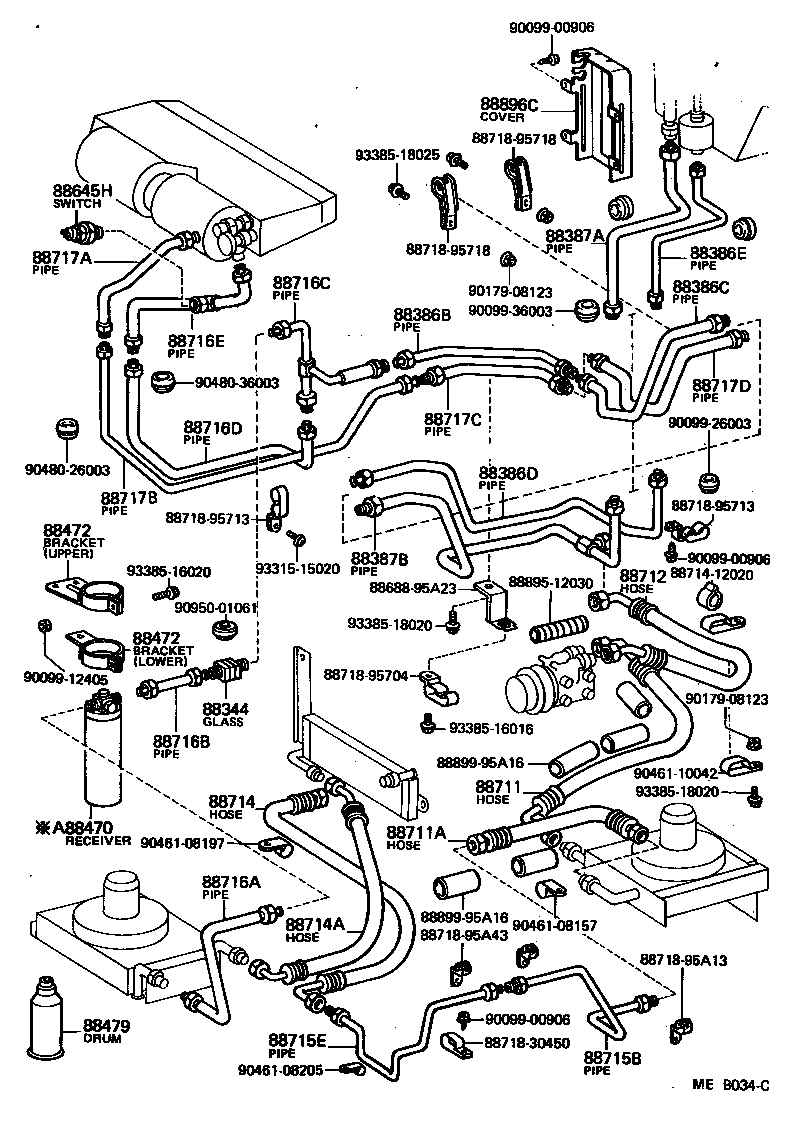

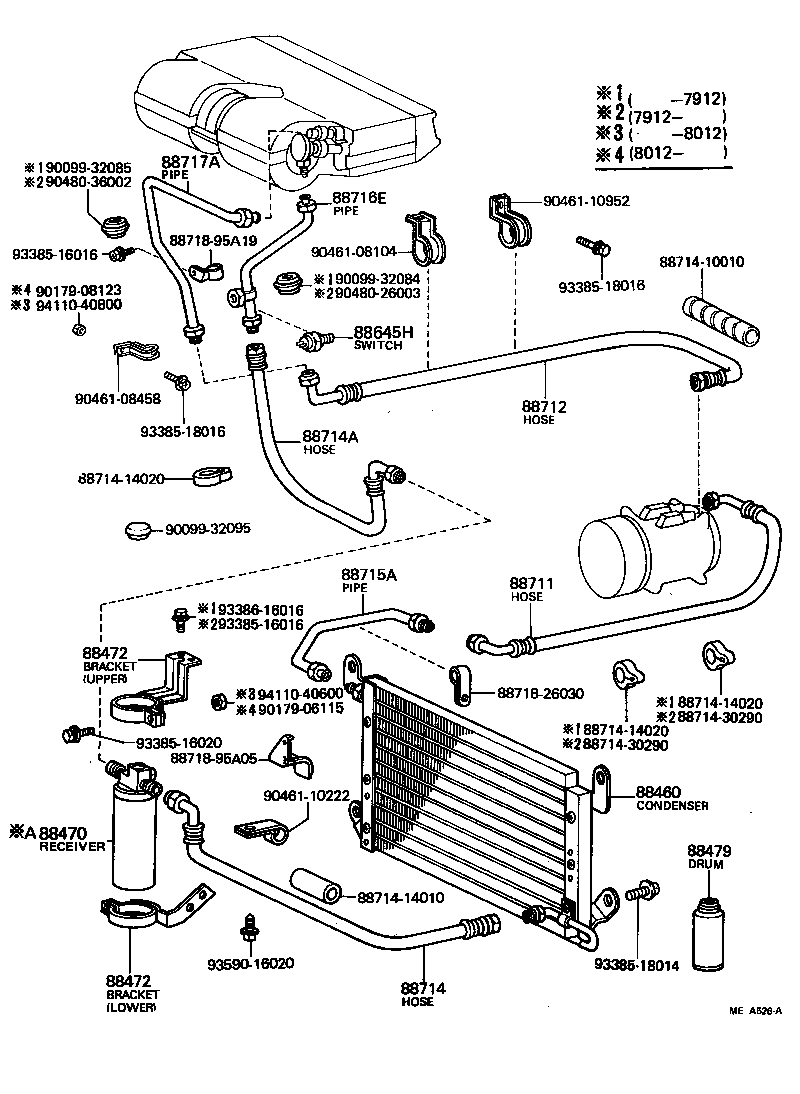

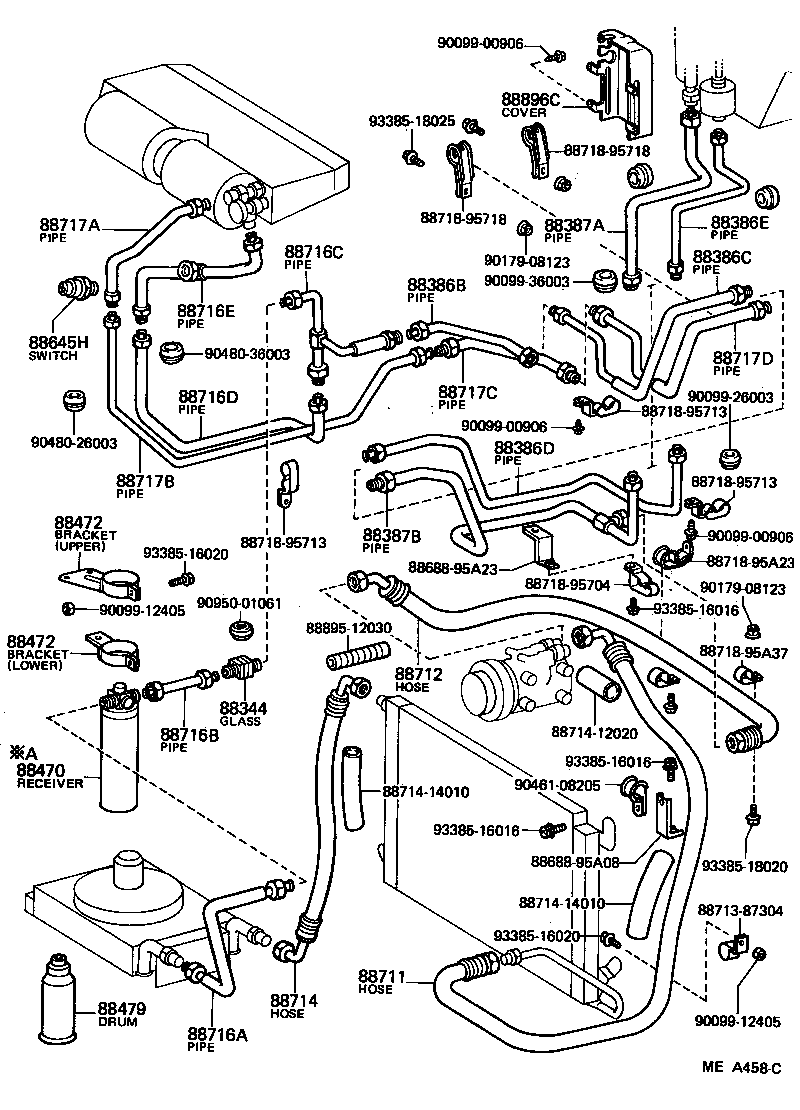

Figure MEA525A MEA525A 1977-02 → — Figure ME6765C ME6765C 1977-02 → — Figure MEA526A MEA526A 1977-02 → — Figure ME6766C ME6766C 1977-02 → — Figure MEA389C MEA389C 1978-04 → 1979-12 Figure MEA389C MEA389C 1981-05 → — Figure MEB032A MEB032A 1980-12 → — Figure MEB032A MEB032A 1981-05 → — Figure MEB033A MEB033A 1981-03 → — Figure ME7315B ME7315B 1978-04 → 1979-12 Figure ME7316B ME7316B 1978-04 → 1979-12 Figure MEA375B MEA375B 1981-05 → — Figure MEA458C MEA458C 1980-12 → — Figure MEB034C MEB034C 1981-03 → — Figure MEB035B MEB035B 1981-05 → — Figure MEB036B MEB036B 1981-05 → — Figure MEA404 MEA404 1977-02 → 1978-04 Figure ME6881B ME6881B 1977-02 → 1978-04 Figure ME6882 ME6882 1977-02 → 1978-04 Figure ME6883A ME6883A 1977-02 → 1978-04 Figure MEB871 MEB871 1977-02 → —

Part groups

PNCDescription
88344 Glass Sub-assy, Sight
88367 Shroud, Cooler Blower Fan
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88387D Pipe, Rear Cooler Refrigerant Suction, D
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460A Cover, Cooler Condenser
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88460H Bracket, Cooler Condenser, NO.6
88460J Bracket, Cooler Condenser, NO.7
88460N Bracket, Cooler Condenser, NO.8
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88688L Bracket, Condenser Packing
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88716R Cover, Pipe OR Hose, NO.1
88716S Cover, Pipe OR Hose, NO.2
88716T Cover, Pipe OR Hose, NO.3
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88893A Bracket, Condenser Packing
88896C Cover, Cooler Refrigerant Pipe, NO.1
88897J Valve, Cooler Magnet
88898A Bracket, Condenser Packing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
