Toyota Hiace
1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe
Discontinued model
Data version 1986-05

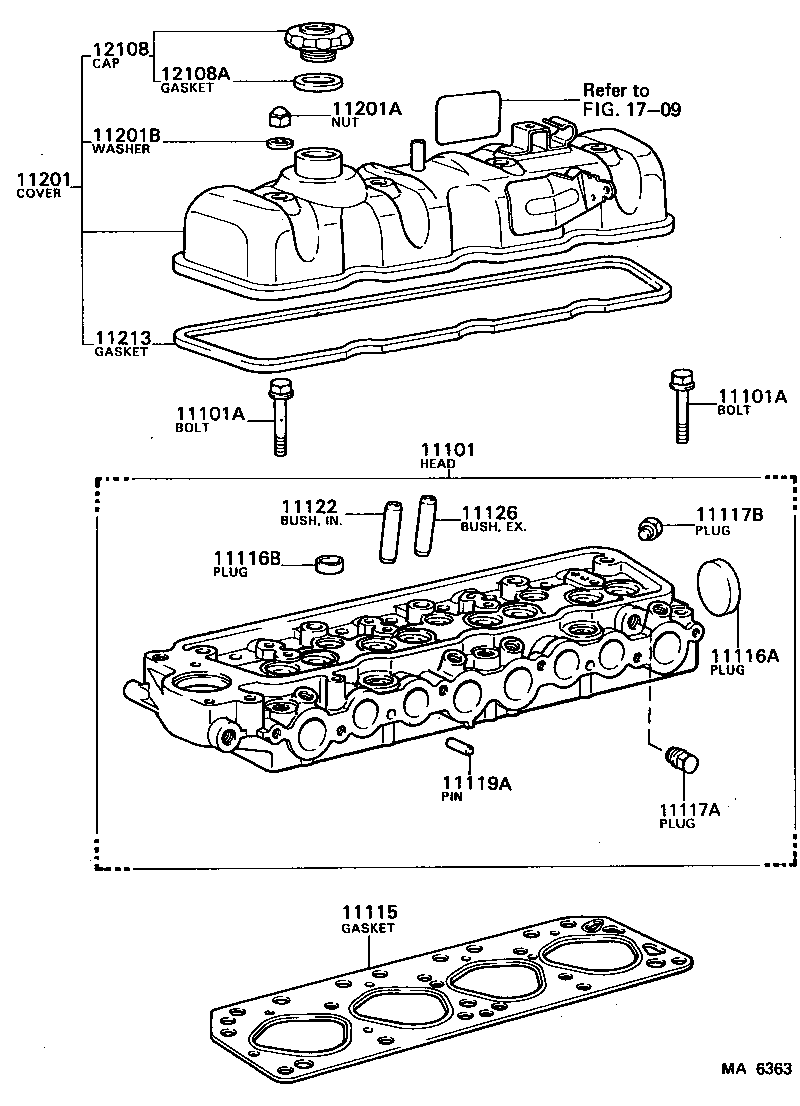

Cylinder Head
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11183 | Plug, Semicircular |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
