Toyota Hiace
1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe
Discontinued model
Data version 1986-05

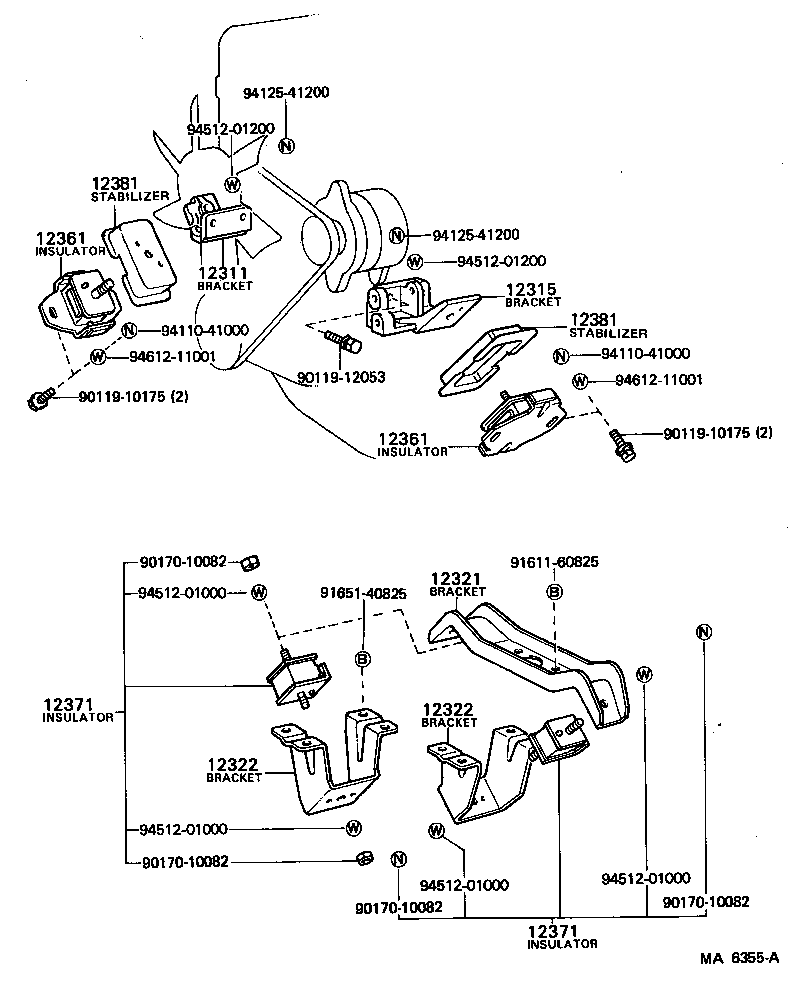

Mounting
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12322 | Bracket, Engine Mounting, Rear NO.2 |
| 12361 | Insulator, Engine Mounting, Front |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12381 | Stabilizer, Engine Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
