Toyota Hiace
1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe
Discontinued model
Data version 1986-05

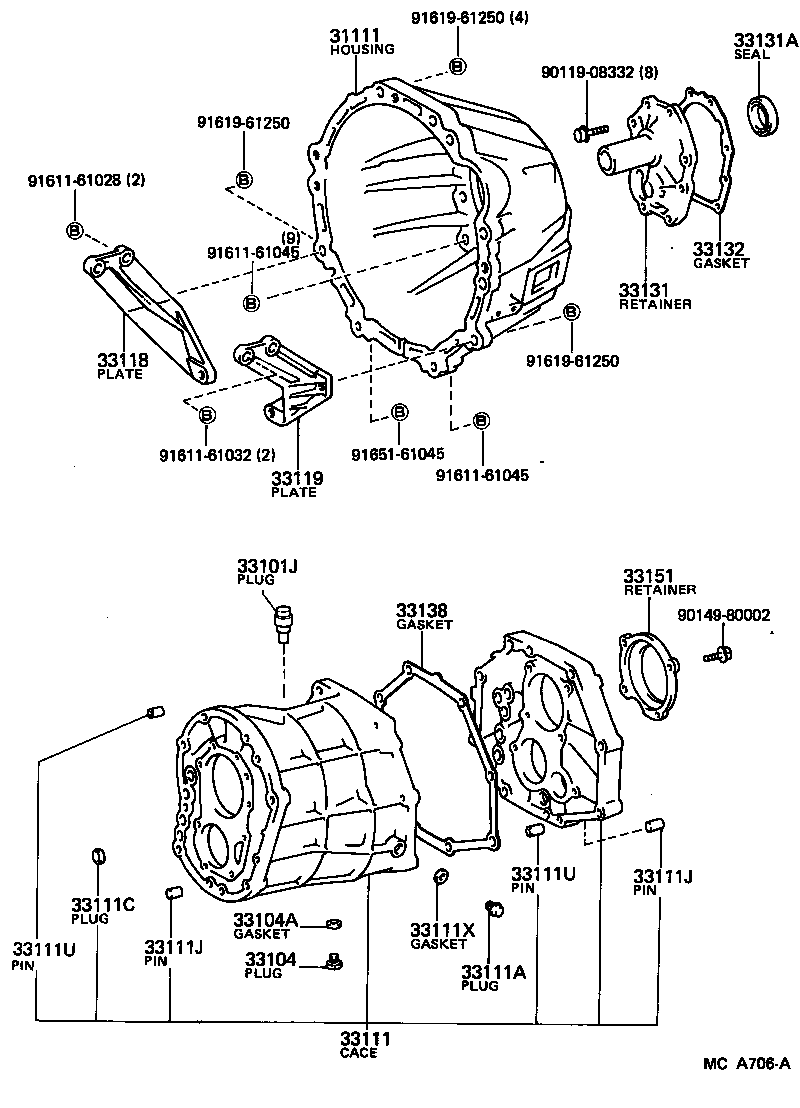

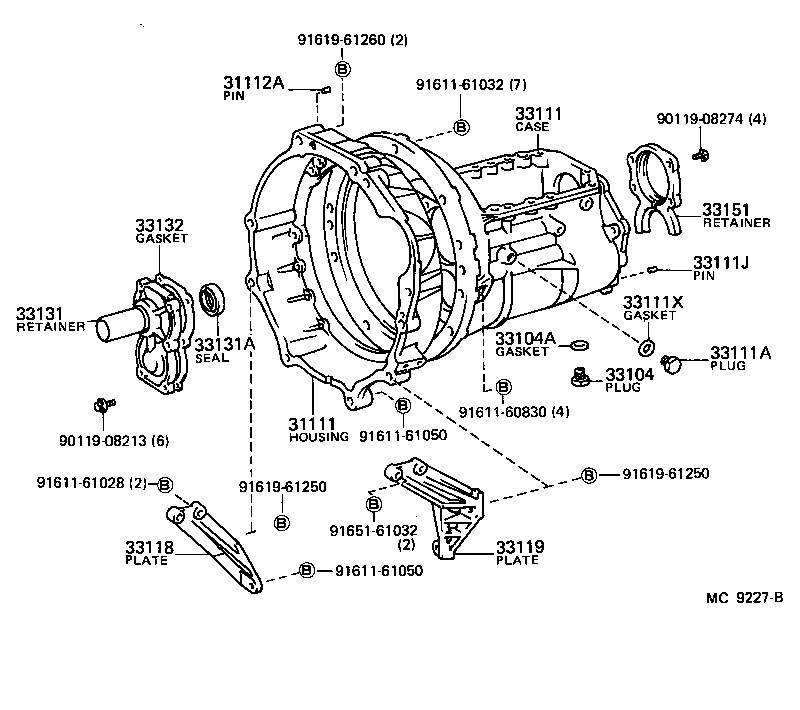

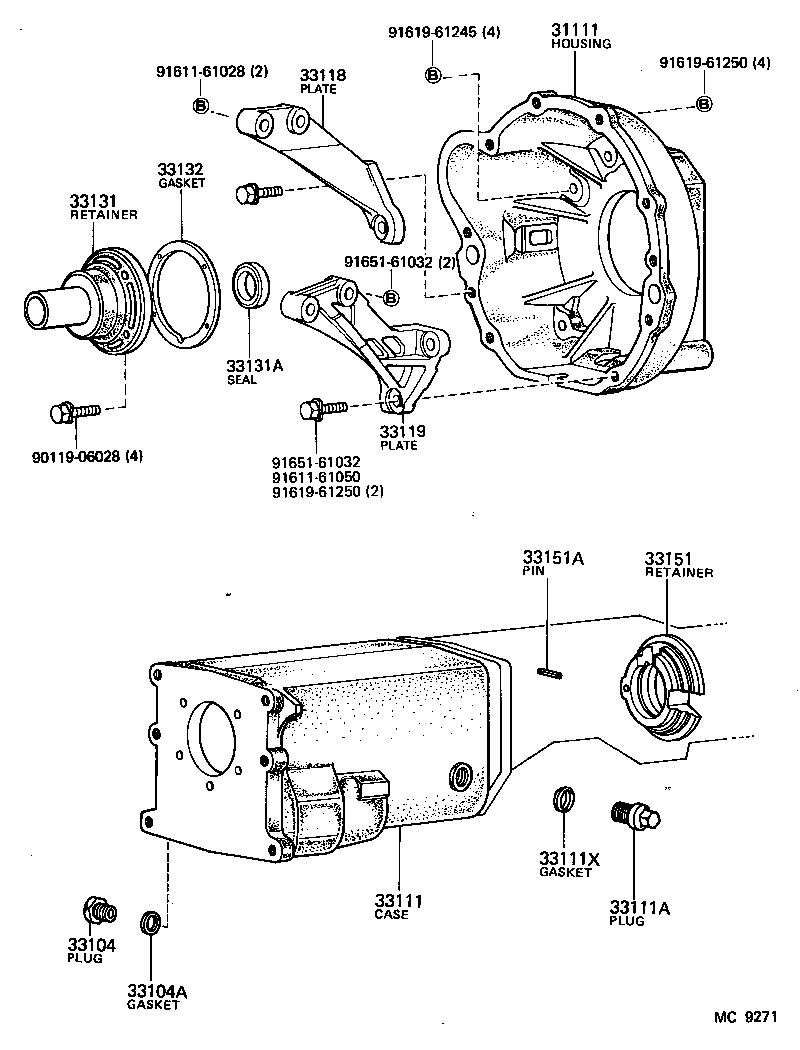

Clutch Housing & Transmission Case (MTM)
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31112A | Pin, Dowel Clutch Housing |
| 33101J | Plug, Breather |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33132 | Gasket, Front Bearing Retainer(MTM) |
| 33138 | Gasket, Intermediate Plate |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33151A | Pin, Slotted Spring(FOR OUTPUT SHAFT REAR BEARING RETAINER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
