Toyota Hiace
1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe
Discontinued model
Data version 1986-05

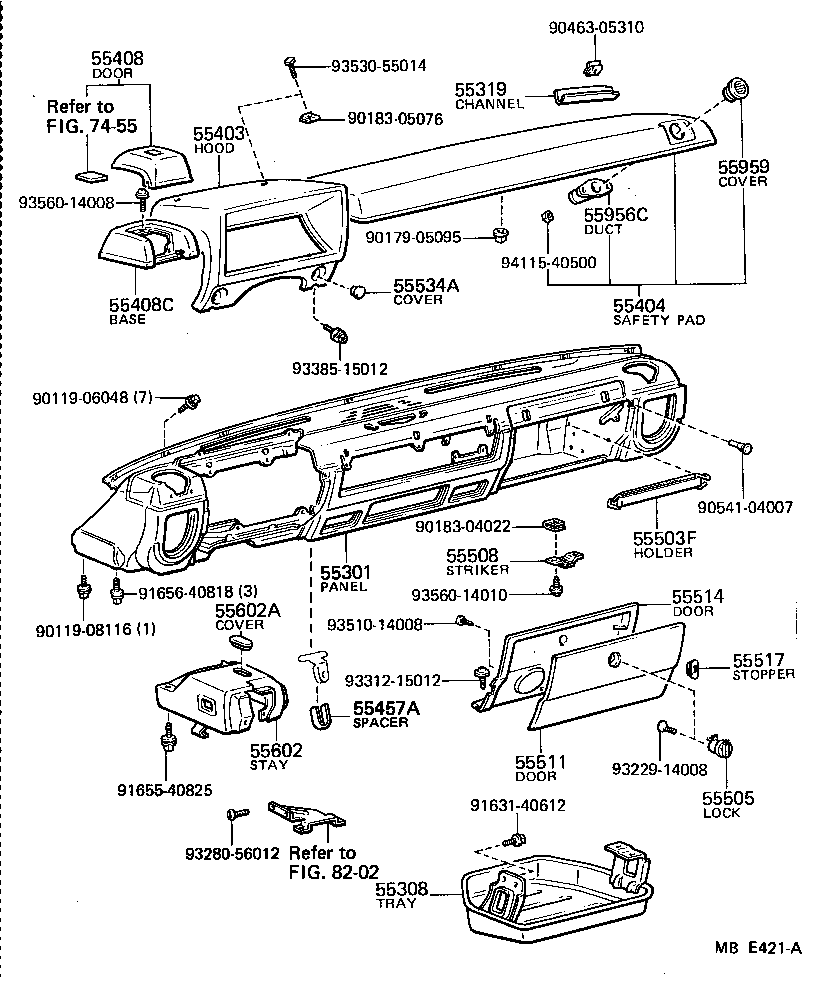

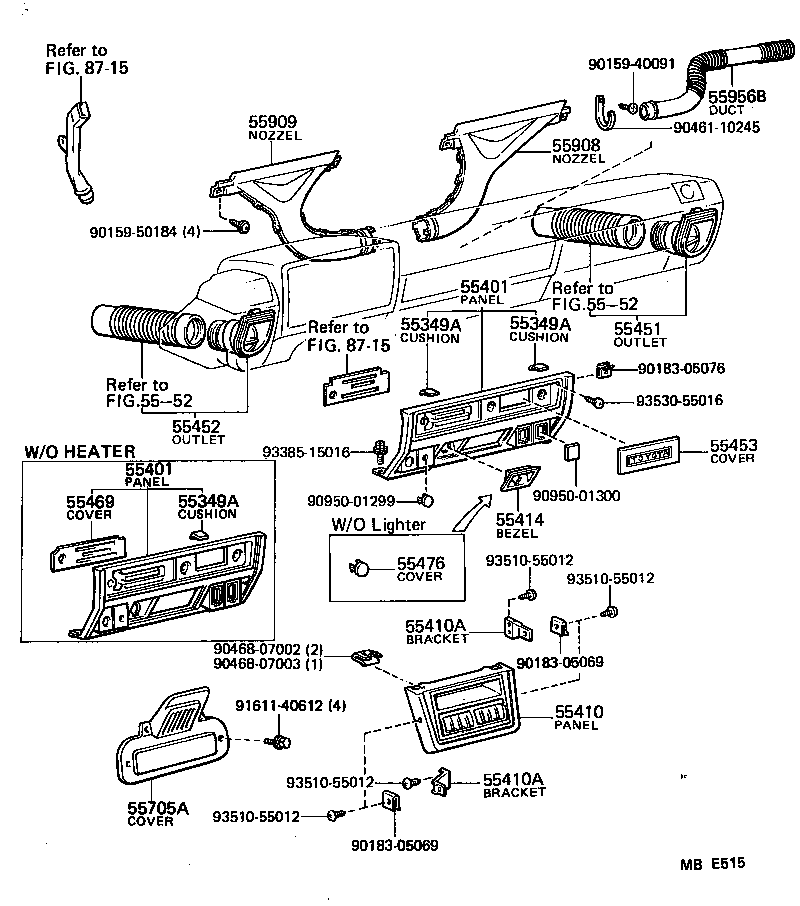

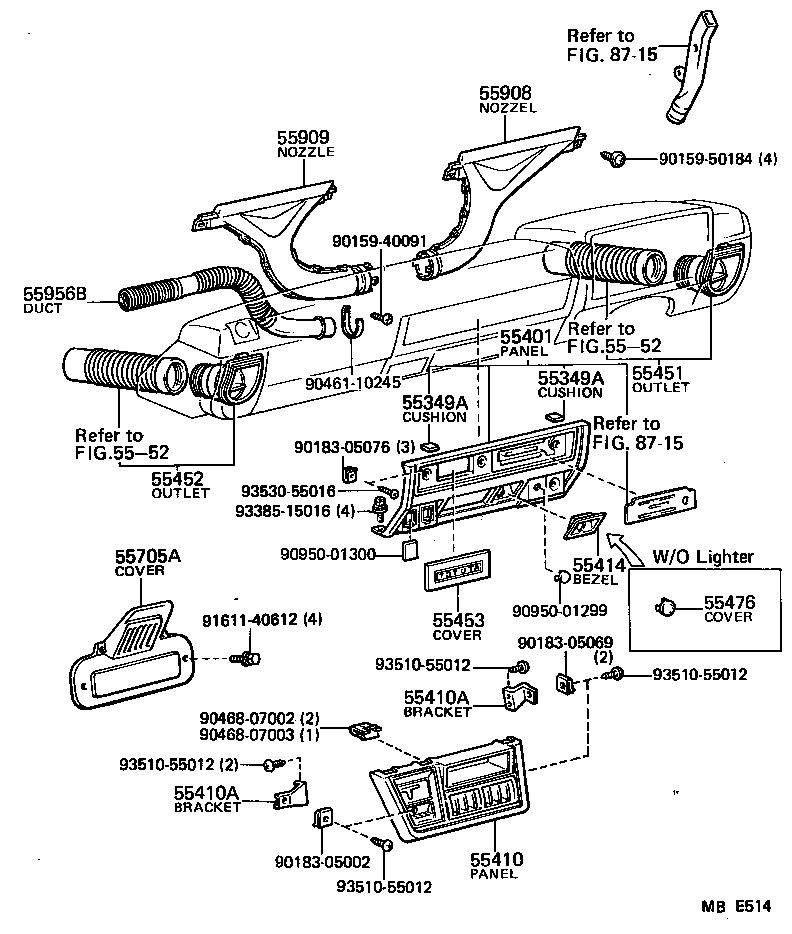

Instrument Panel & Glove Compartment
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55308 | Tray Sub-assy, Instrument Panel Under |
| 55319 | Channel, Water Guide |
| 55349A | Cushion, Instrument Panel |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55403 | Hood Sub-assy, Meter |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55408 | Door Sub-assy, Reservoir Tank Service Hole |
| 55408C | Base, Reservoir Tank Service Hole Door |
| 55410 | Panel Assy, Instrument Cluster Finish, NO.2 |
| 55410A | Bracket, Instrument Cluster Finish Panel, NO.2 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55451 | Outlet, Air Outer, RH |
| 55452 | Outlet, Air Outer, LH |
| 55453 | Cover, Radio Tuner Opening |
| 55457A | Spacer, Instrument Panel Safety Pad |
| 55469 | Cover, Heater Control Lamp Hole |
| 55476 | Cover, Cigarette Lighter Hole |
| 55503F | Holder, Card(FOR GLOVE COMPARTMENT) |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55508 | Striker Sub-assy, Glove Compartment Door Lock |
| 55511 | Door, Glove Compartment |
| 55514 | Door, Glove Compartment, Inner |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55534A | Cover, Illumination Lamp Hole |
| 55535 | Cover, Warning Lamp Hole |
| 55602 | Stay Sub-assy, Steering Column, Upper |
| 55602A | Cover,Steering Column Upper Stay |
| 55908 | Nozzle Sub-assy, Defroster, RH |
| 55909 | Nozzle Sub-assy, Defroster, LH |
| 55956B | Duct, Side Defroster Nozzle, NO.2 |
| 55956C | Duct, Side Defroster Nozzle, NO.3 |
| 55959 | Cover, Defroster Nozzle Opening, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
