Toyota Hiace

1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe

Discontinued model Data version 1986-05

Seat & Seat Track

37 part groups · 3 illustrations

PNC	Description

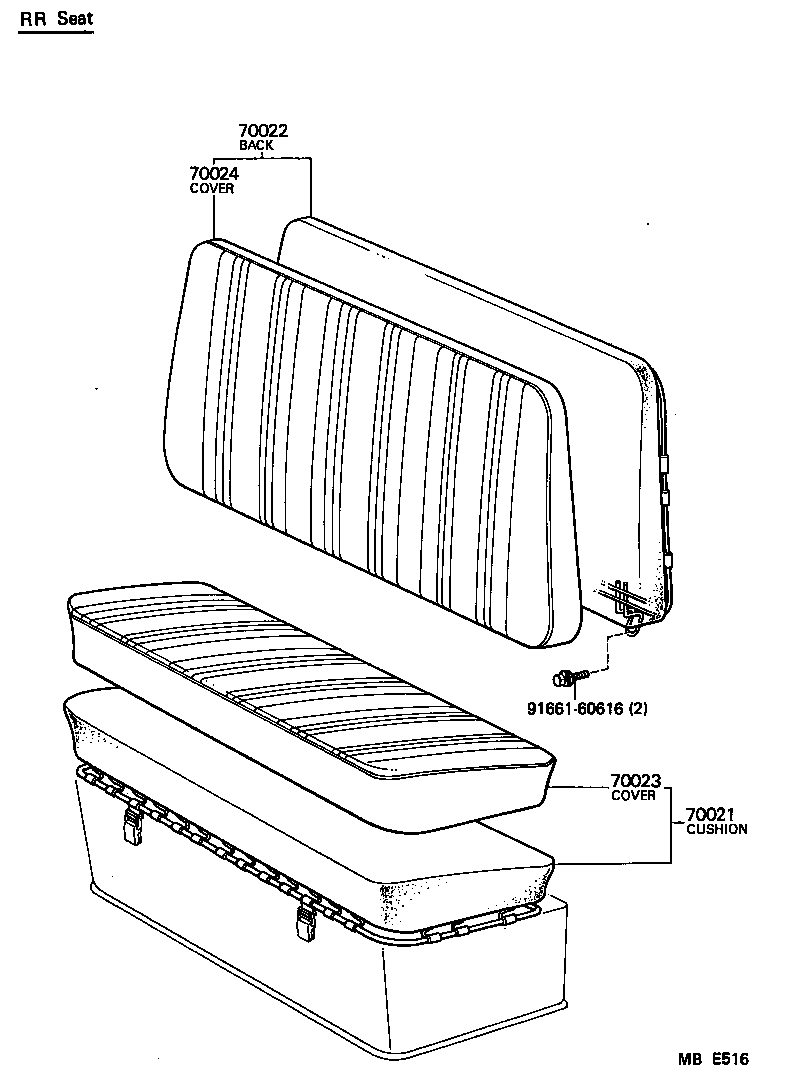

70021	Cushion Assy, NO.2 Seat
70022	Back Assy, NO.2 Seat
70023	Cover Assy, NO.2 Seat Cushion
70024	Cover Assy, NO.2 Seatback

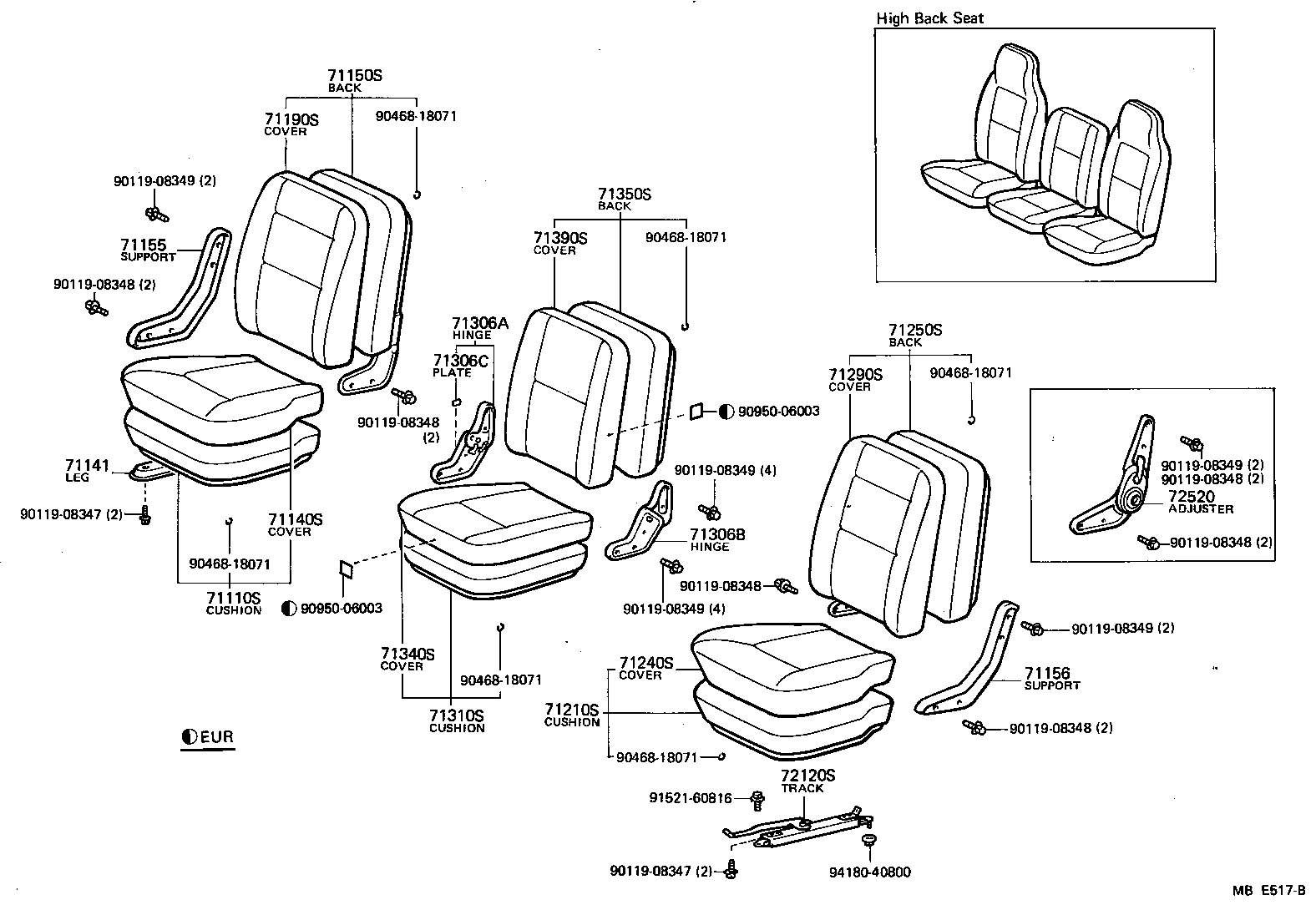

71012	Support Sub-assy, Front Seatback, LH
71012A	Guide, Front Seatback Support, LH
71110S	Cushion Assy, Front Seat, RH
71140S	Cover, Front Seat Cushion, RH
71141	Leg, Front Seat
71150S	Back Assy, Front Seat, RH
71155	Support, Driver Seatback, RH
71156	Support, Driver Seatback, LH
71190S	Cover, Front Seat Back, RH
71210S	Cushion Assy, Front Seat, LH
71240S	Cover, Front Seat Cushion, LH
71250S	Back Assy, Front Seat, LH
71283	Bush, Front Seatback Support, LH
71283A	Bolt, Front Seatback Support, LH
71284	Spacer, Front Seatback Support, LH
71290S	Cover, Front Seatback, LH
71294	Hinge, Front Seatback, LH
71299	Bracket, Front Seatback, LH
71301	Lock Sub-assy, Center Seat
71306A	Hinge Sub-assy, Center Seat, RH
71306B	Hinge Sub-assy, Center Seat, LH
71306C	Plate, Center Seat Hinge Caution
71310S	Cushion Assy, Front Seat, Center
71340S	Cover, Front Seat Cushion, Center
71350S	Back Assy, Front Seat, Center
71390S	Cover, Front Seatback, Center
71903	Catch Sub-assy, Seat Cushion, Front
71921	Retainer, Engine Service Hole Cover Catch
71975A	Washer, Plate
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
