Toyota Hiace

1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 2 illustrations

Illustrations

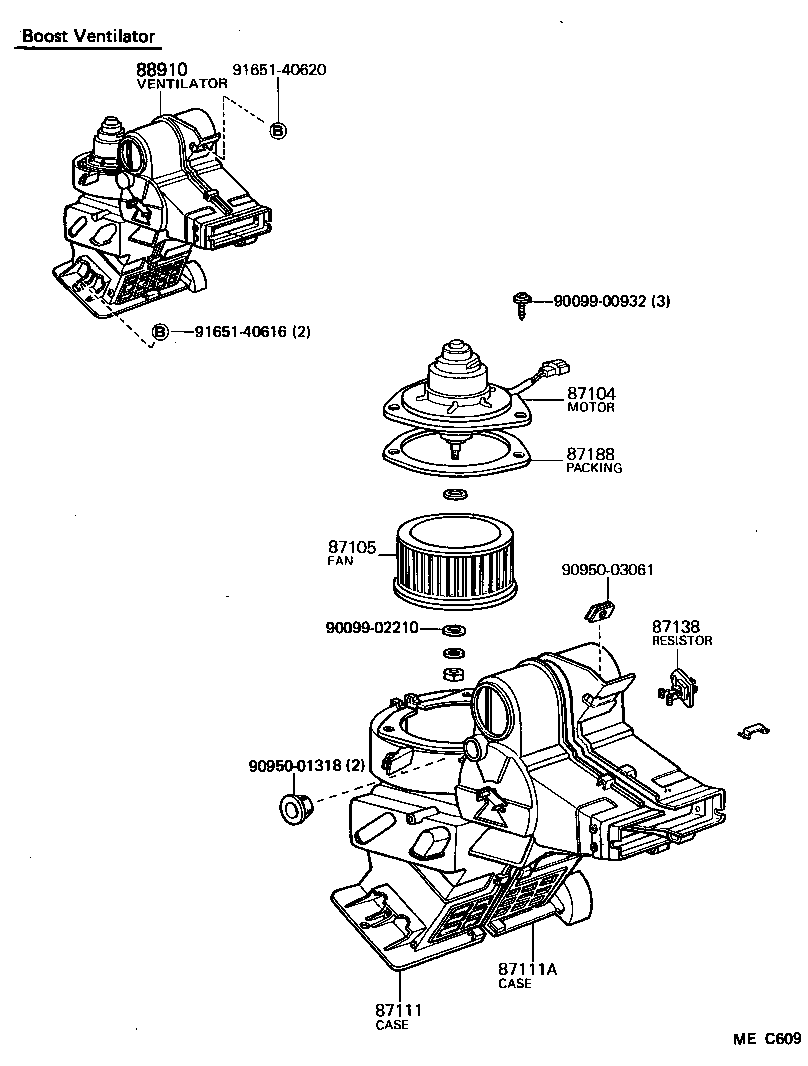

Figure MEC608A MEC608A 1982-11 → — Figure MEC609 MEC609 1982-11 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87111 Case, Heater
87111A Case, Heater
87138 Resistor, Heater Blower
87174A Guide, Air Heater
87188 Packing, Heater Blower Motor
87240H Valve Assy, Water Unit
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
