Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 4 illustrations

Illustrations

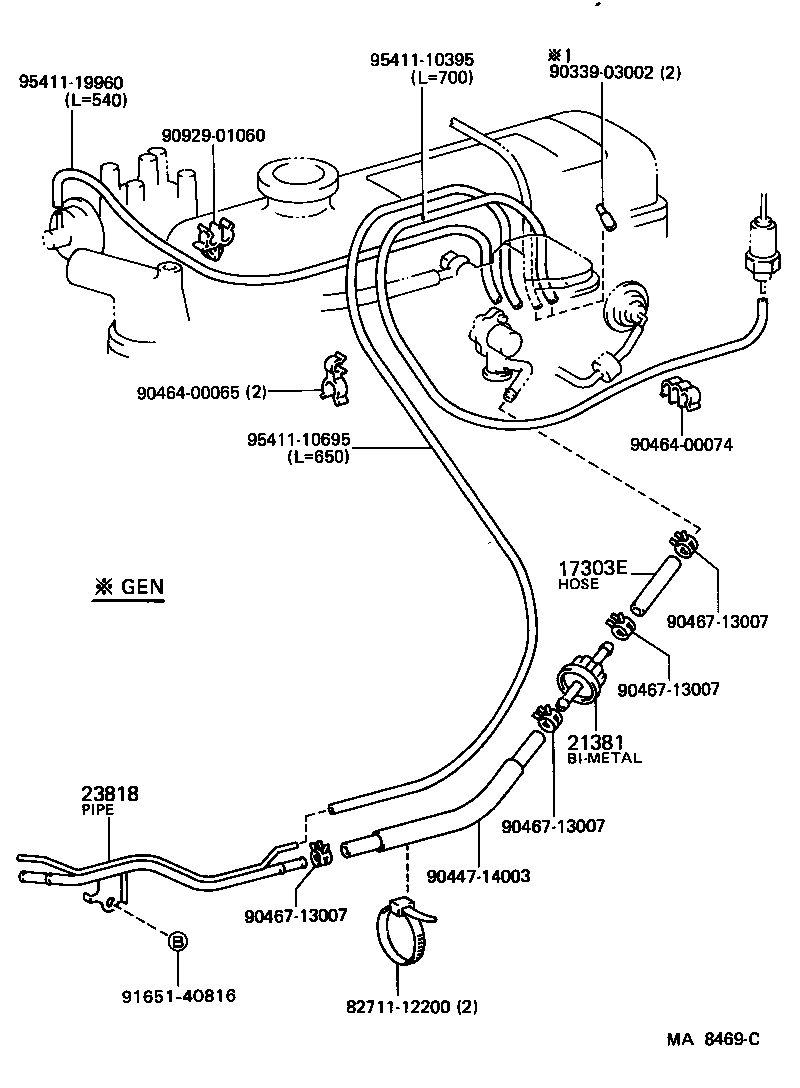

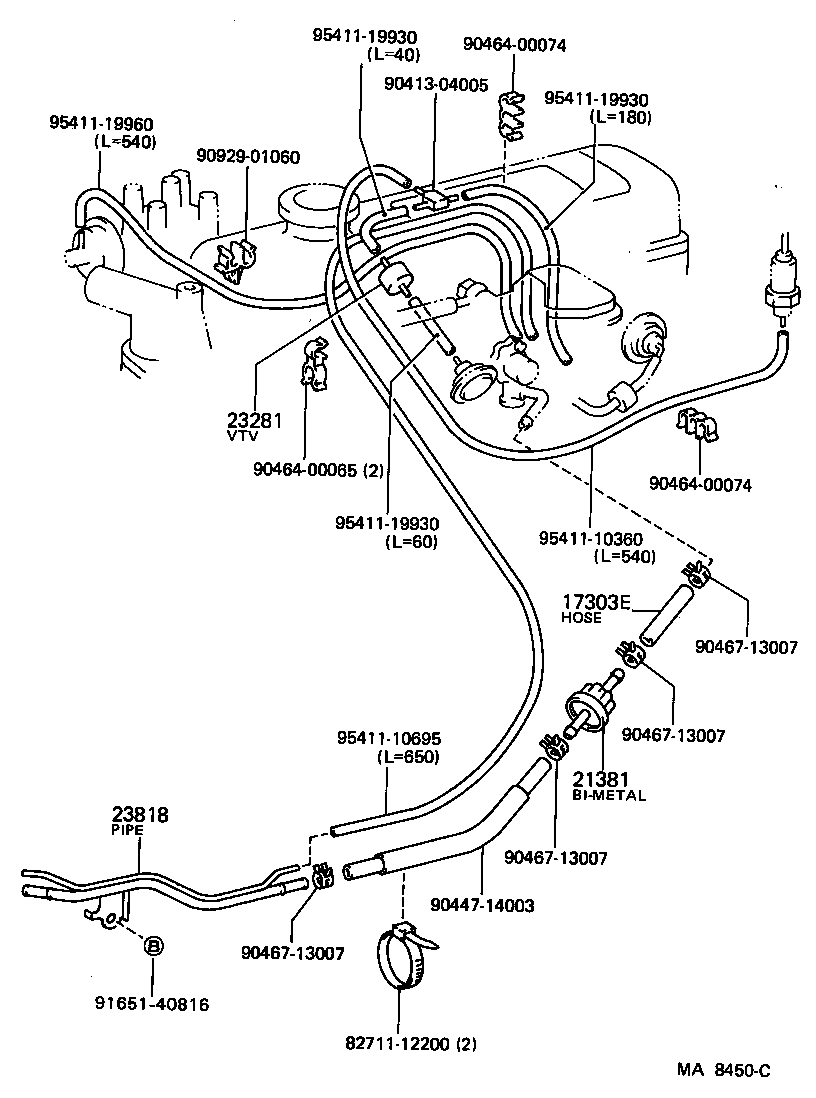

Figure MA9504A MA9504A 1985-08 → — Figure MA9504A MA9504A 1985-08 → — Figure MA8469C MA8469C 1985-08 → — Figure MA8450C MA8450C 1985-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
21381 Bimetal, Thermostatic
23281 Valve, Vacuum Transmitting, NO.1
23818 Pipe, Fuel Vapor Feed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
