Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 2 illustrations

Illustrations

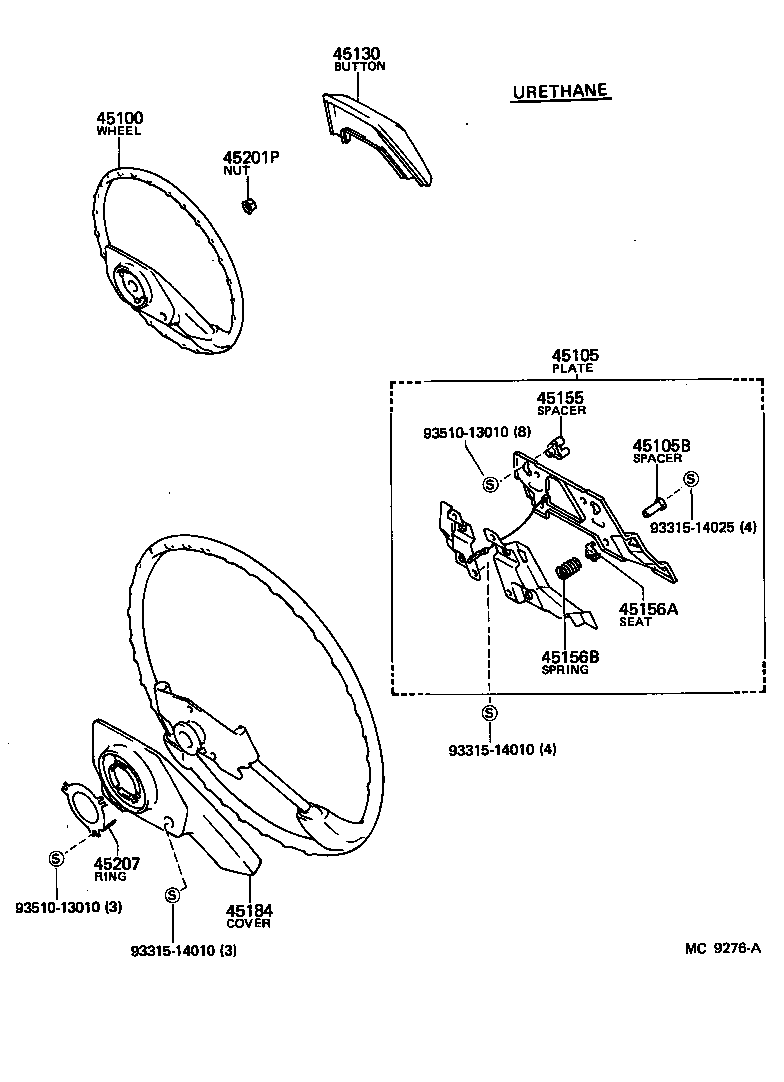

Figure MCC376B MCC376B 1985-08 → — Figure MC9276A MC9276A 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
