Toyota DYNA100
1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe
Discontinued model
Data version 1988-01

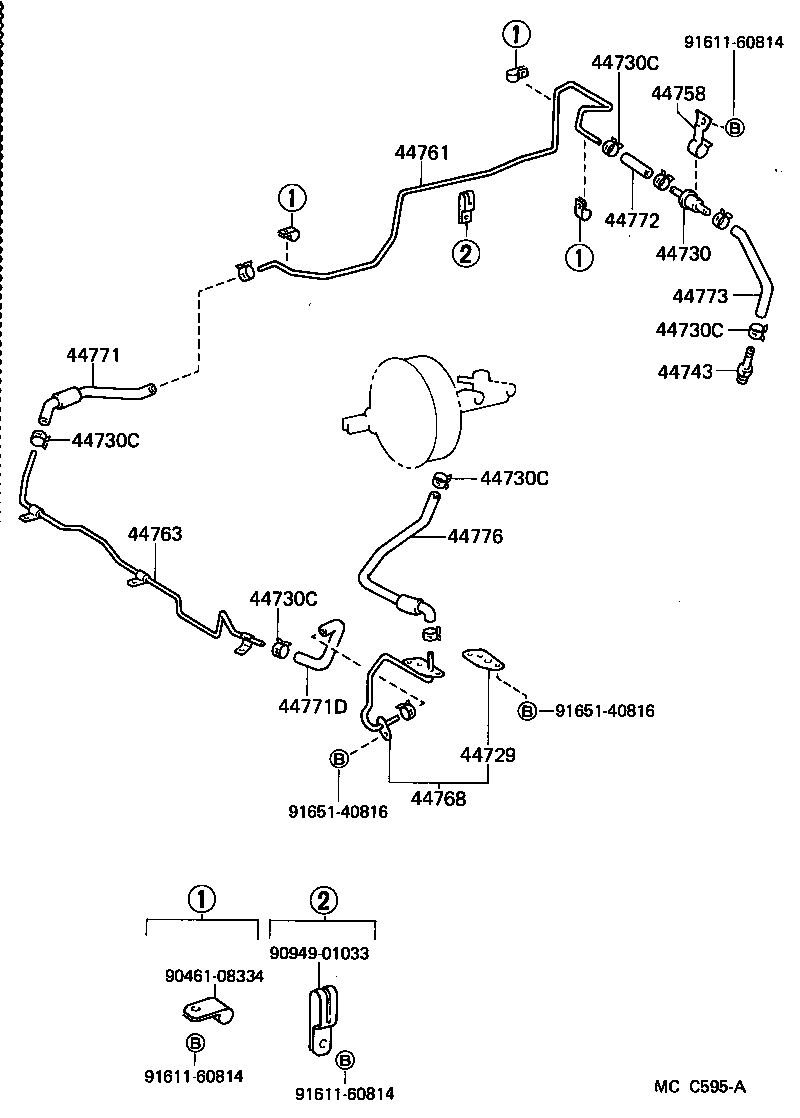

Brake Booster & Vacuum Tube
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44606E | Rod Sub-assy, Brake Booster Piston |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44629 | Ring, Circular Internal |
| 44642 | Piston, Brake Booster |
| 44663 | Key, Valve Stopper |
| 44729 | Gasket, Vacuum Tube |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730B | Clamp, Vacuum Hose |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44740 | Reservoir Assy, Vacuum |
| 44743 | Union(FOR VACUUM PUMP) |
| 44758 | Bracket, Vacuum Check Valve |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44763 | Tube, Booster Vacuum |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771D | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44773 | Hose, Vacuum, NO.2 |
| 44774 | Hose, Union TO Connector Tube |
| 44774E | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
