Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

29 part groups · 2 illustrations

Illustrations

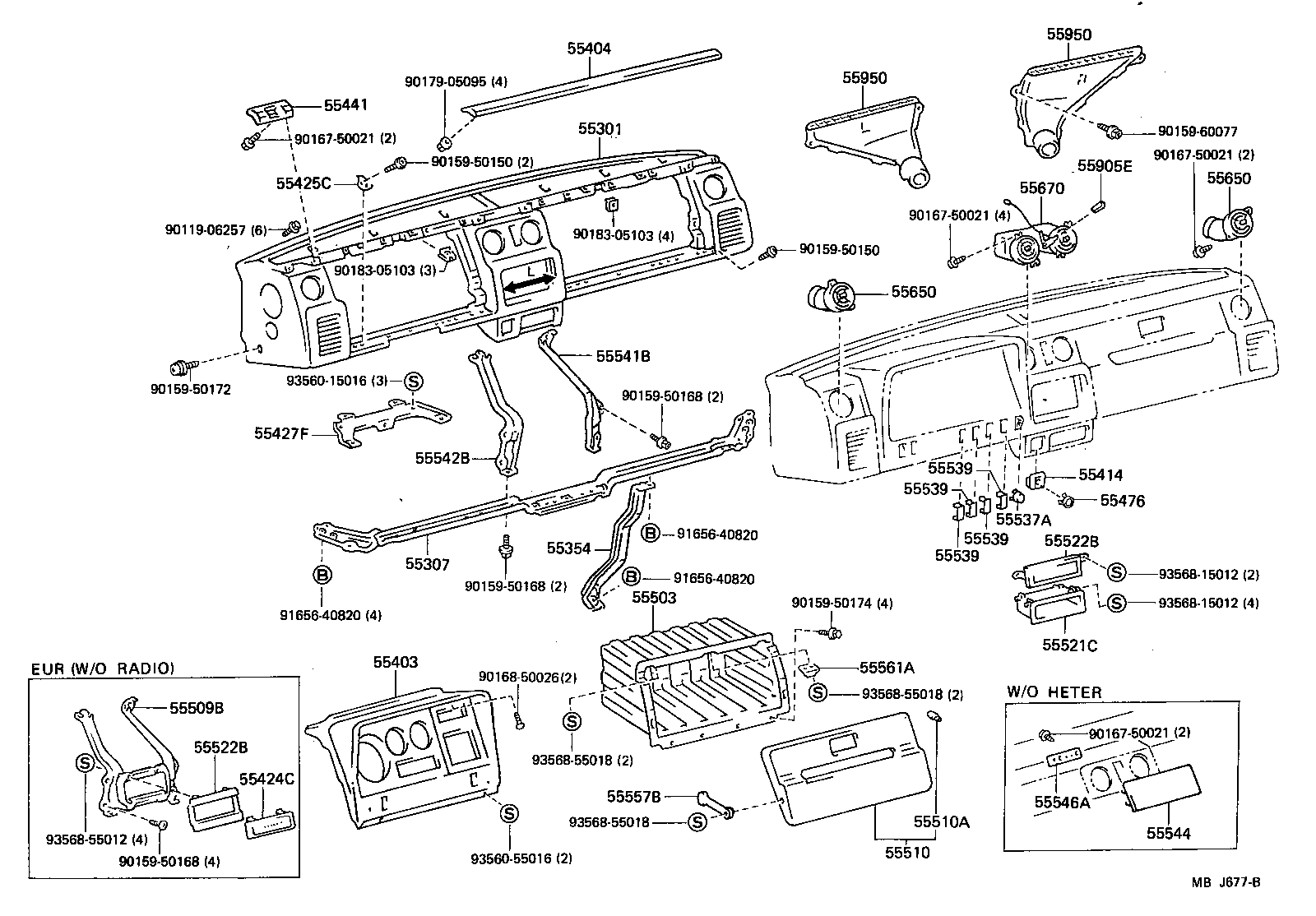

Figure MBJ676B MBJ676B 1985-08 → — Figure MBJ677B MBJ677B 1985-08 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55307 Reinforcement Sub-assy, Instrument Panel, Lower
55354 Brace, Instrument Panel TO Floor
55403 Hood Sub-assy, Meter
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55414 Bezel, Cigar Lighter Hole
55424C Panel, Radio Tuner Finish
55425C Bracket, Meter Hood Set, NO.1
55427F Bracket, Meter Hood Set, NO.3
55441 Box, Instrument Panel
55476 Cover, Cigarette Lighter Hole
55503 Compartment Sub-assy, Glove
55509B Retainer Sub-assy, Radio Tuner Cover
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55537A Cover, Throttle Knob Hole
55539 Cover, Spare Switch Hole
55541B Retainer, Radio Tuner Opening, NO.1
55542B Retainer, Radio Tuner Opening, NO.2
55544 Cover, Instrument Panel Register Hole
55546A Plate, Center Register Cover
55557B Stopper, Glove Compertment Door Check
55561A Striker, Glove Compartment Door Lock
55650 Register Assy, Instrument Panel, NO.1
55670 Register Assy, Instrument Panel, NO.3
55905E Knob Sub-assy, Control
55950 Nozzle Assy, Defroster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
