Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01

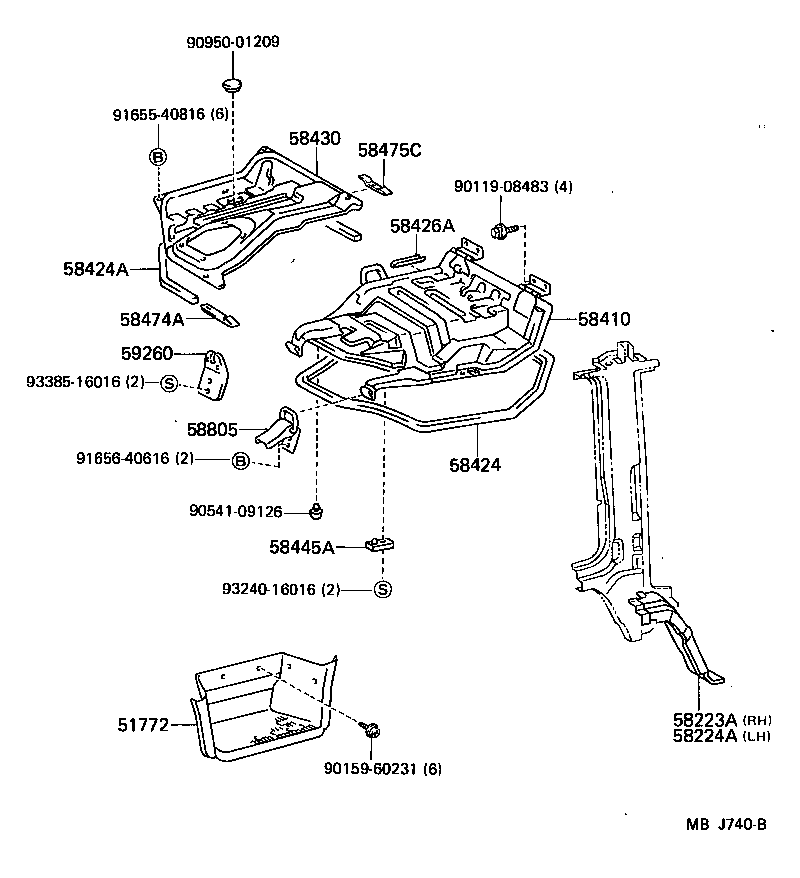

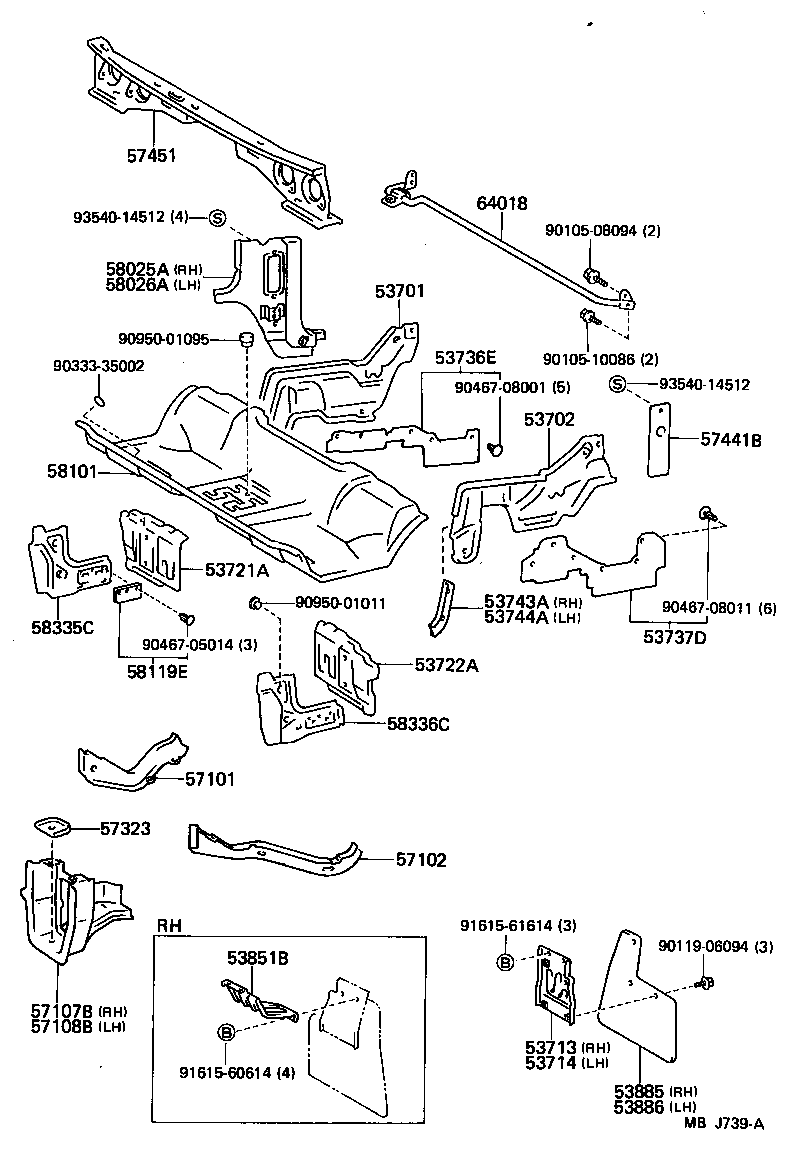

Front Floor Panel & Front Floor Member

40 part groups · 3 illustrations

PNC	Description
51772	Plate, Step
53713	Apron, Fender Side, RH
53714	Apron, Fender Side, LH
53721A	Apron, Front Fender, NO.2 RH
53722A	Apron, Front Fender, NO.2 LH
53736E	Seal, Front Fender Apron, RH
53737D	Seal, Front Fender Apron, LH
53743A	Reinforcement, Front Fender Apron, Front RH
53744A	Reinforcement, Front Fender Apron, Front LH
53815	Plate, Mudguard Rubber Set, Front
53851B	Stay, Fender, RH
53885	Mudguard, Front RH
53886	Mudguard, Front LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57107B	Bracket Sub-assy, Cab Front Mounting, RH
57108B	Bracket Sub-assy, Cab Front Mounting, LH
57323	Patch, Front Mounting
57441B	Cover, Floor Side Rail Plate
57451	Member, Front Floor Cross
58025A	Panel Sub-assy, Floor Side Rail, FR RH
58026A	Panel Sub-assy, Floor Side Rail, FR LH
58101	Pan Sub-assy, Front Floor
58119E	Cover, Front Floor Side, Front
58139	Cover, Front Floor Side, Rear
58223A	Reinforcement, Floor Side Panel, RH
58224A	Reinforcement, Floor Side Panel, LH
58335C	Plate, Floor Side, Front RH
58336C	Plate, Floor Side, Front LH
58410	Cover, Engine Service Hole
58424	Packing, Engine Service Hole Cover, NO.1
58424A	Packing, Engine Service Hole Cover Sub, NO.1
58426A	Protector, Engine Service Hole
58430	Cover Assy, Sub-floor Service Hole
58445A	Cushion, Engine Service Hole Cover
58474A	Packing, Engine Sub Cover, NO.2
58475C	Packing, Engin Sub Cover, NO.3
58805	Catch Sub-assy, Engine Service Hole Cover
59260	Lock Assy, Engine Cover
64018	Bar Sub-assy, Body

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
