Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

23 part groups · 2 illustrations

Illustrations

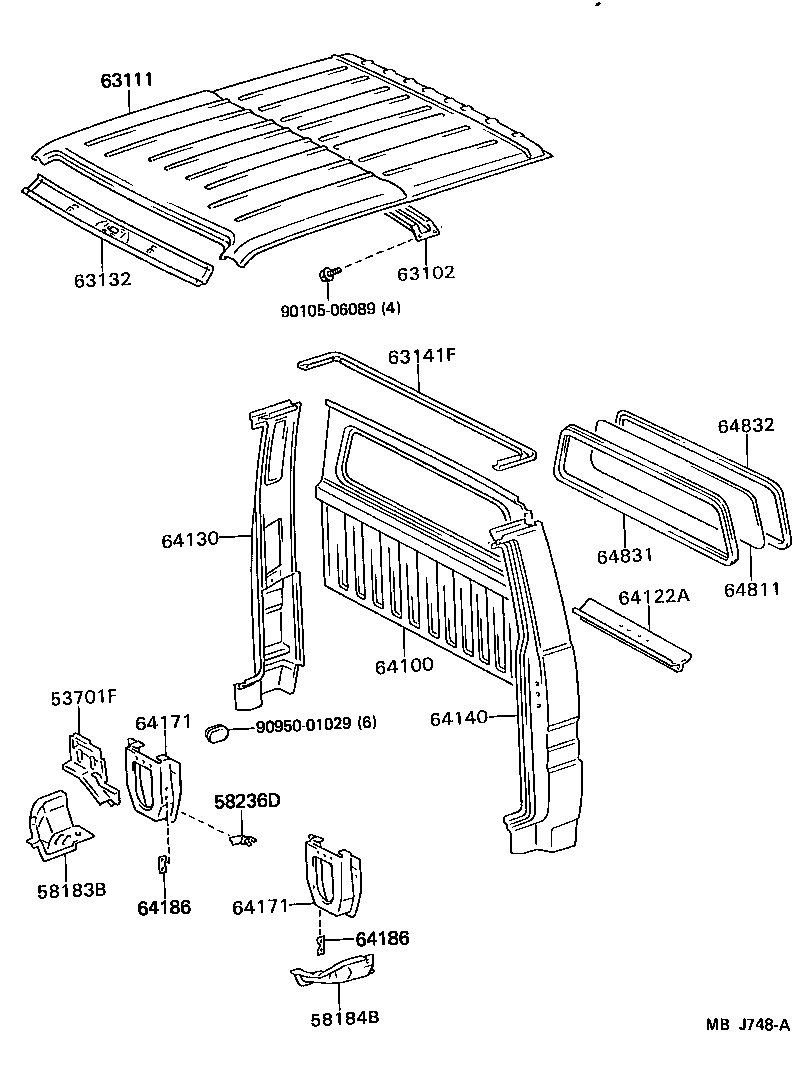

Figure MBJ747B MBJ747B 1985-08 → — Figure MBJ748A MBJ748A 1985-08 → —

Part groups

PNCDescription
53701 Apron Sub-assy, Front Fender, RH
53701F Apron Sub-assy, Front Fender, NO.2 RH
53702 Apron Sub-assy, Front Fender, LH
53702F Apron Sub-assy, Front Fender, NO.2 LH
58183B Reinforcement, Rear Mounting, RH
58184B Reinforcement, Rear Mounting, LH
58236D Bracket, Clutch Tube
63102 Reinforcement Sub-assy, Roof Panel, Front
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63141F Channel, Roof Drip, Rear
63142 Reinforcement, Roof Panel, NO.2
64100 Panel Assy, Back, Outer
64122A Baffle, Dust Rear Body
64130 Panel Assy, Back Corner, RH
64140 Panel Assy, Back Corner, LH
64171 Bracket, Cab Rear Mounting
64180 Silencer Assy, Back Panel
64186 Retainer, Rear Mounting Bracket
64189 Clamp, Back Panel Silencer
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
