Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

16 part groups · 2 illustrations

Illustrations

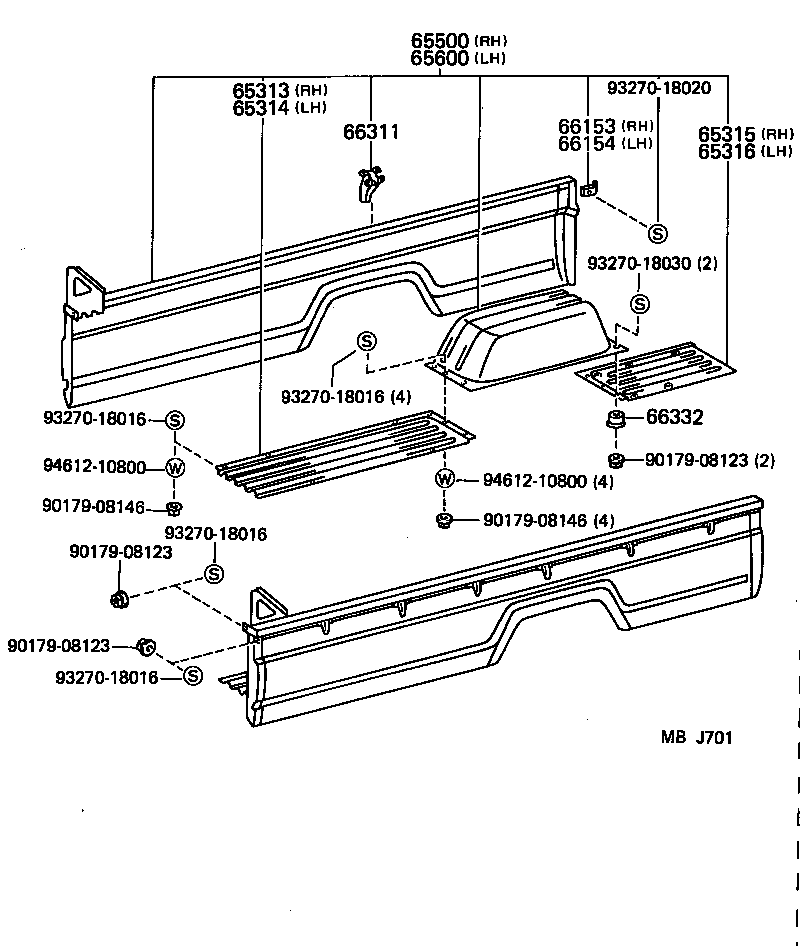

Figure MBJ702A MBJ702A 1985-08 → — Figure MBJ701 MBJ701 1985-08 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65519 Bracket, Top Rail
65600 Panel Assy, Rear Body Side, LH
66120B Retainer, Side Gate Hinge, Lower
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66311 Hook, Rope
66332 Cushion, Rubber
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
