Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

33 part groups · 3 illustrations

Illustrations

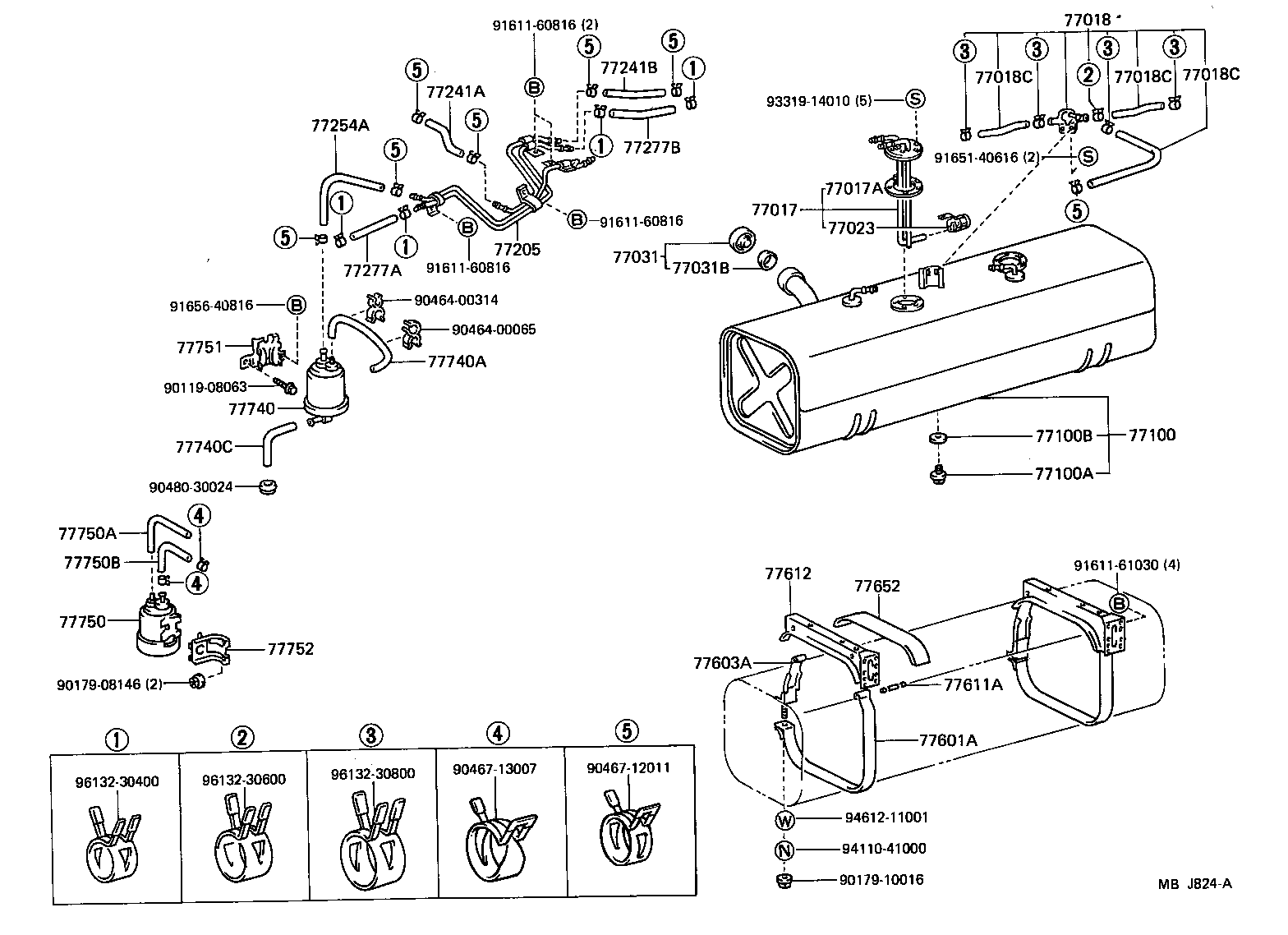

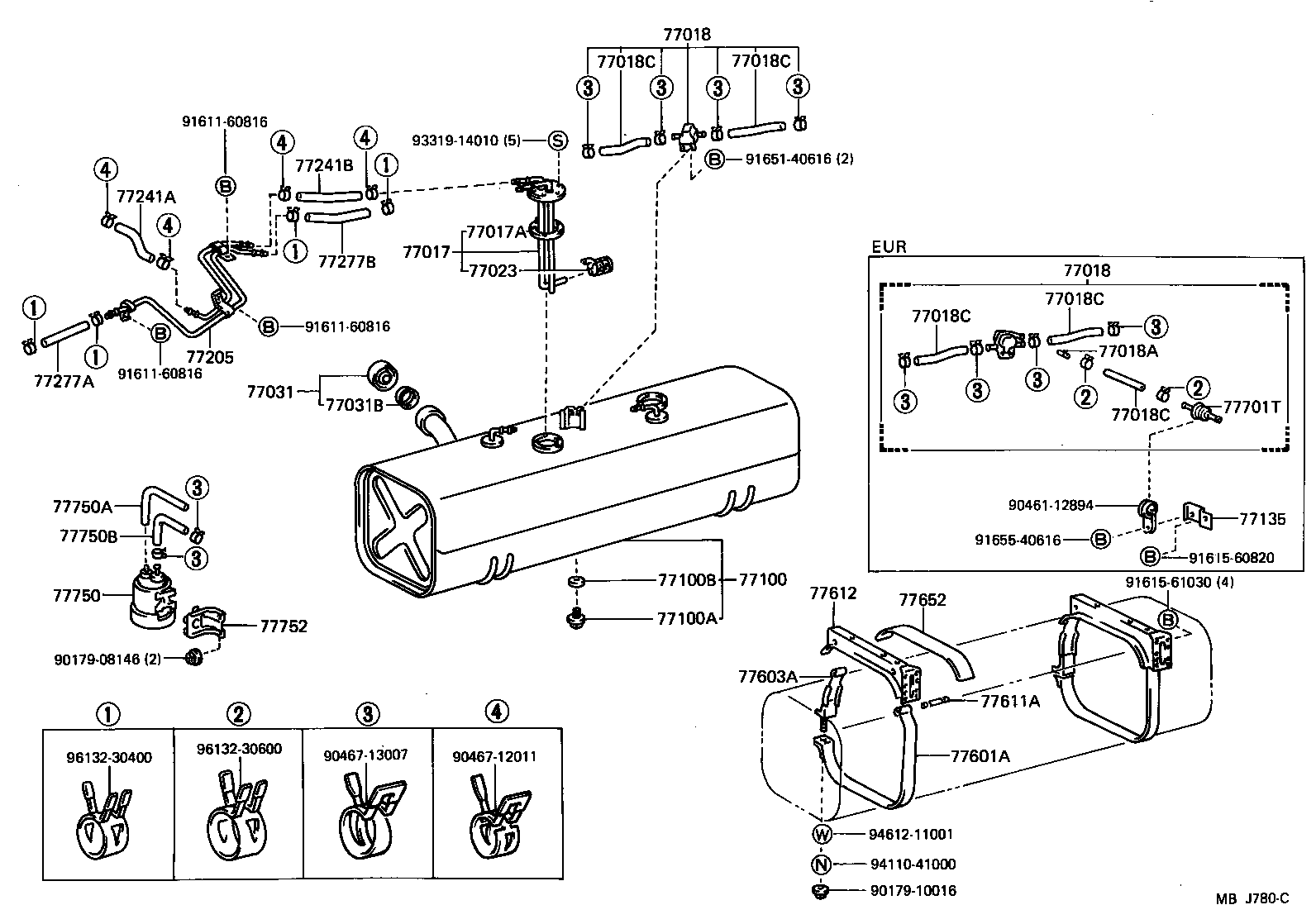

Figure MBJ779B MBJ779B 1985-08 → — Figure MBJ780C MBJ780C 1985-08 → — Figure MBJ824A MBJ824A 1985-08 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018A Orifice, Fuel Vapour
77018C Hose, Fuel NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77205 Tube Sub-assy, Fuel Main
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277S Bracket, Fuel Hose
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77652 Cushion, Fuel Tank, NO.1
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
