Toyota DYNA100

1985-08 → 1987-08 · chassis YH8#,LH80 · catalogue 691240 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

13 part groups · 4 illustrations

Illustrations

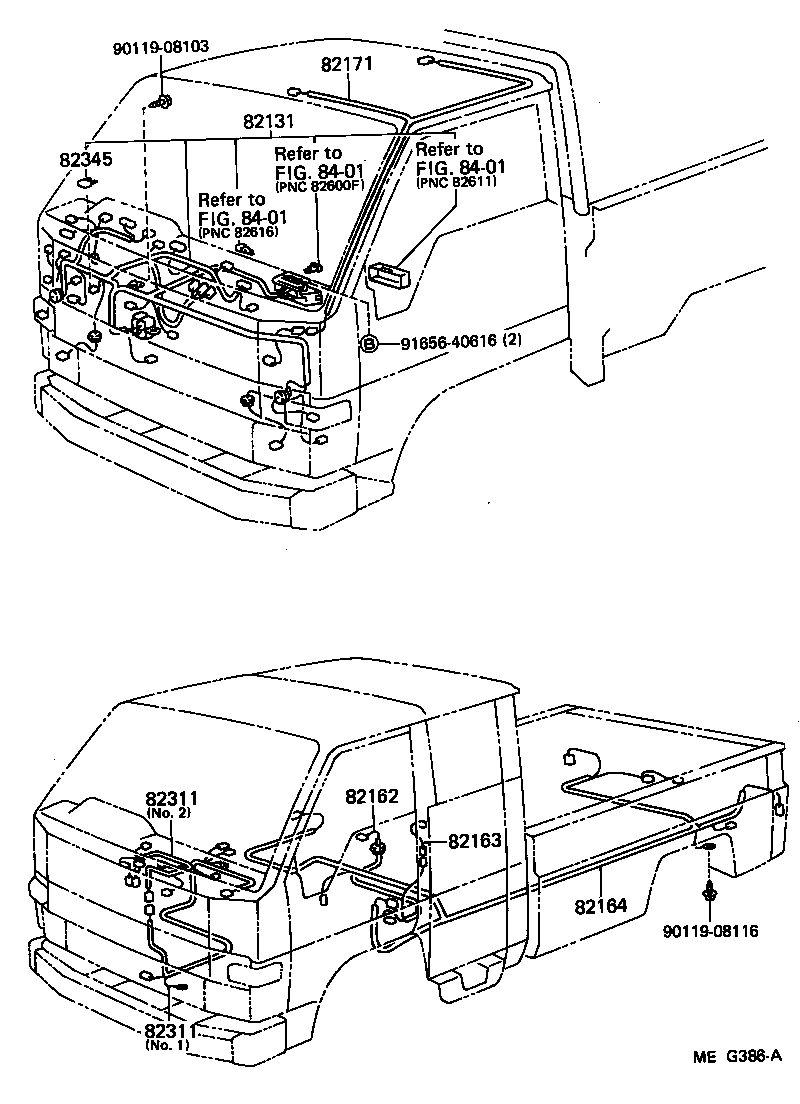

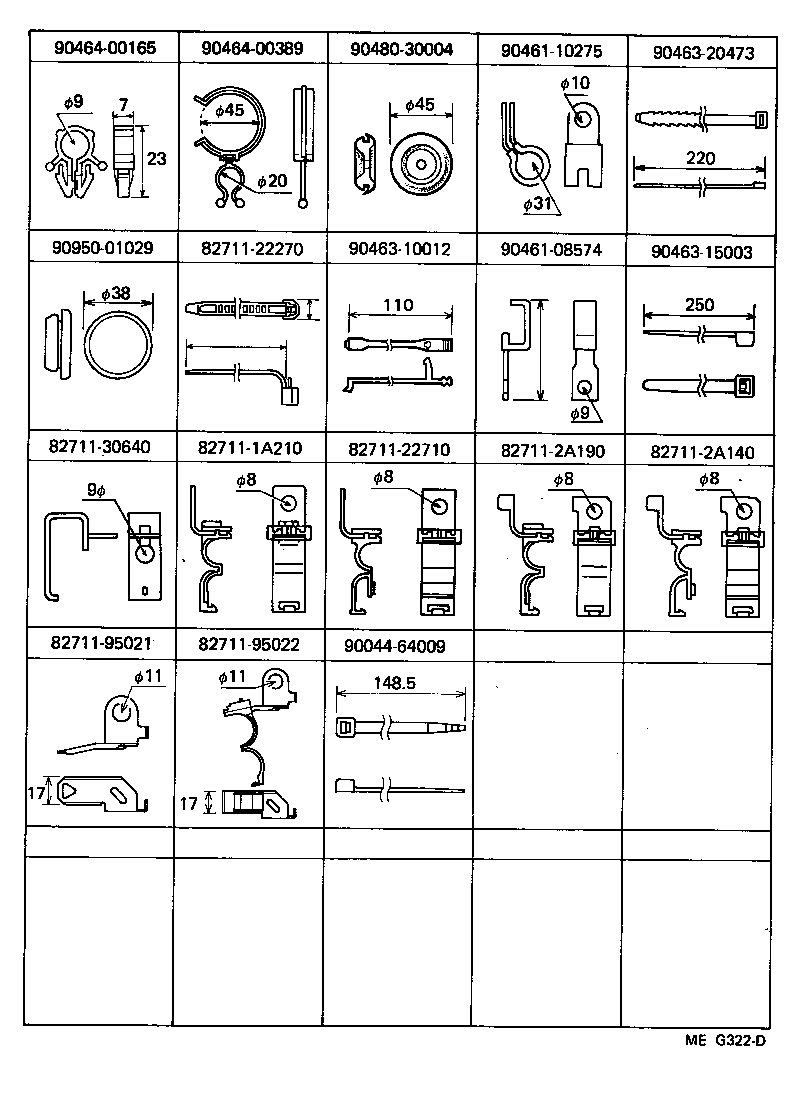

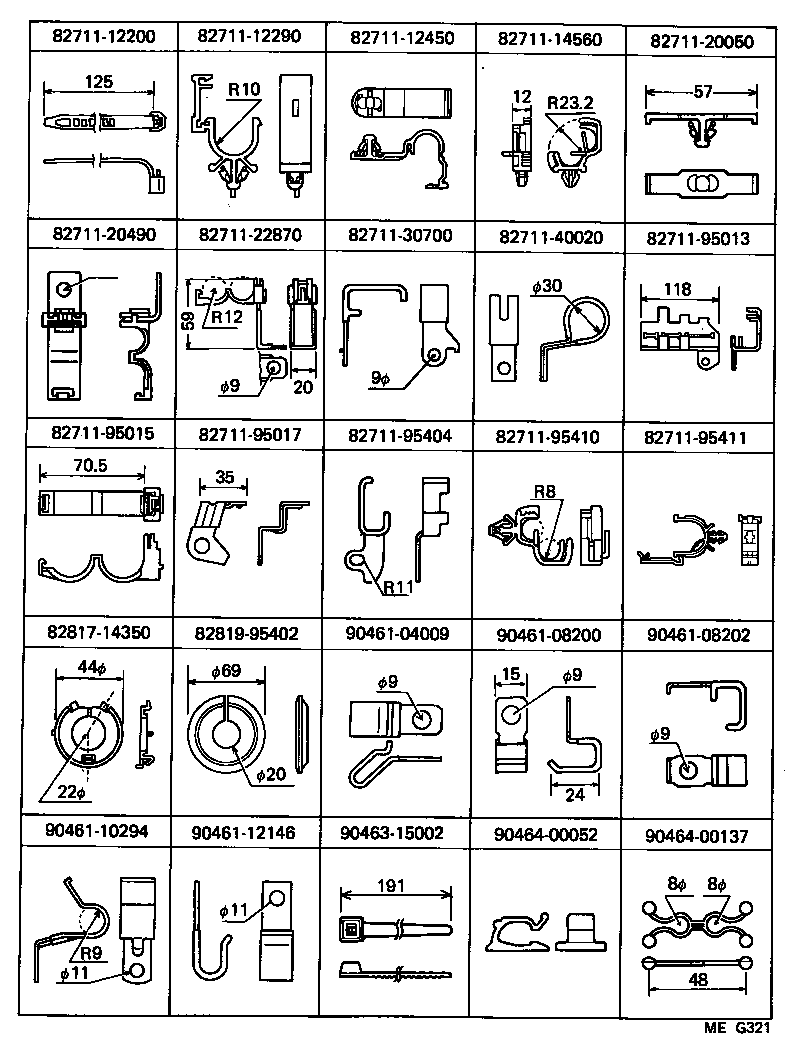

Figure MEG451B MEG451B 1985-08 → — Figure MEG386A MEG386A 1985-08 → — Figure MEG321 MEG321 1985-08 → — Figure MEG322D MEG322D 1985-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82311 Harness Assy, Cooler
82345 Diode
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
