Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 8 illustrations

Illustrations

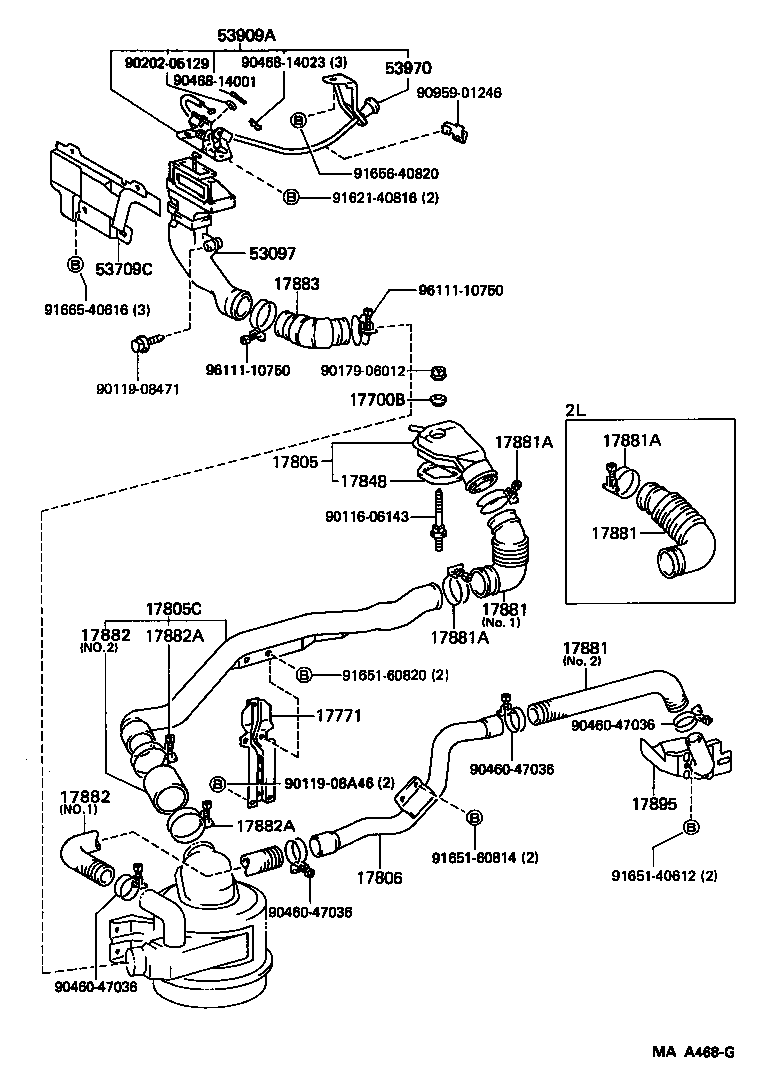

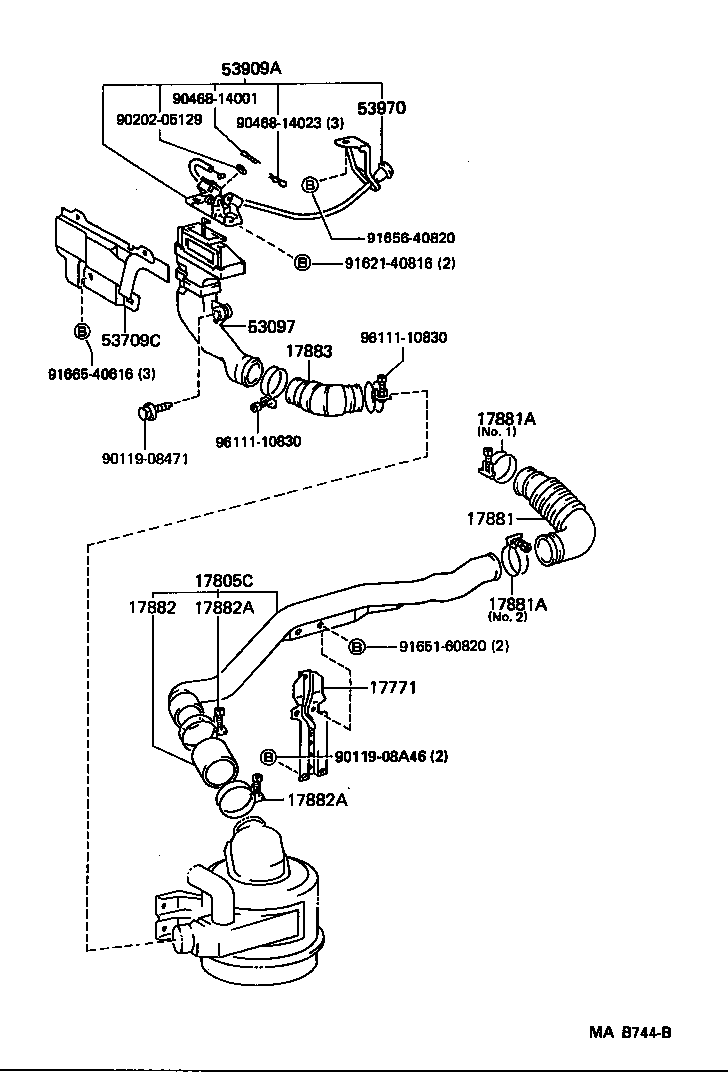

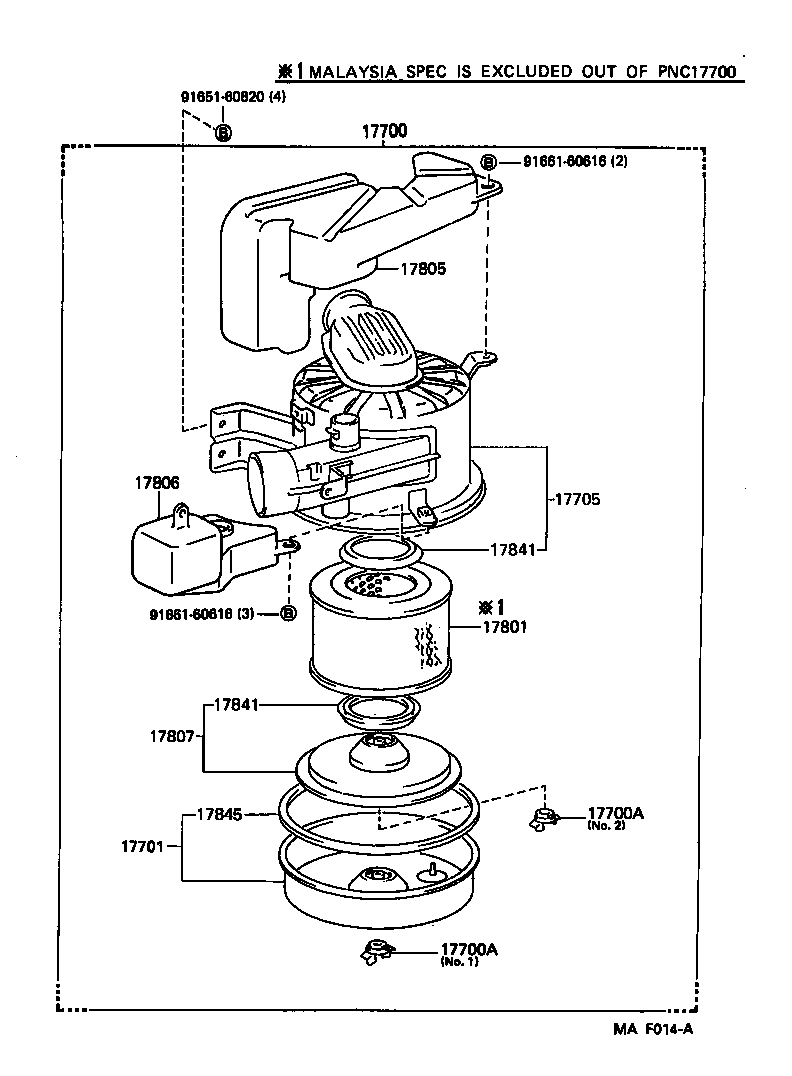

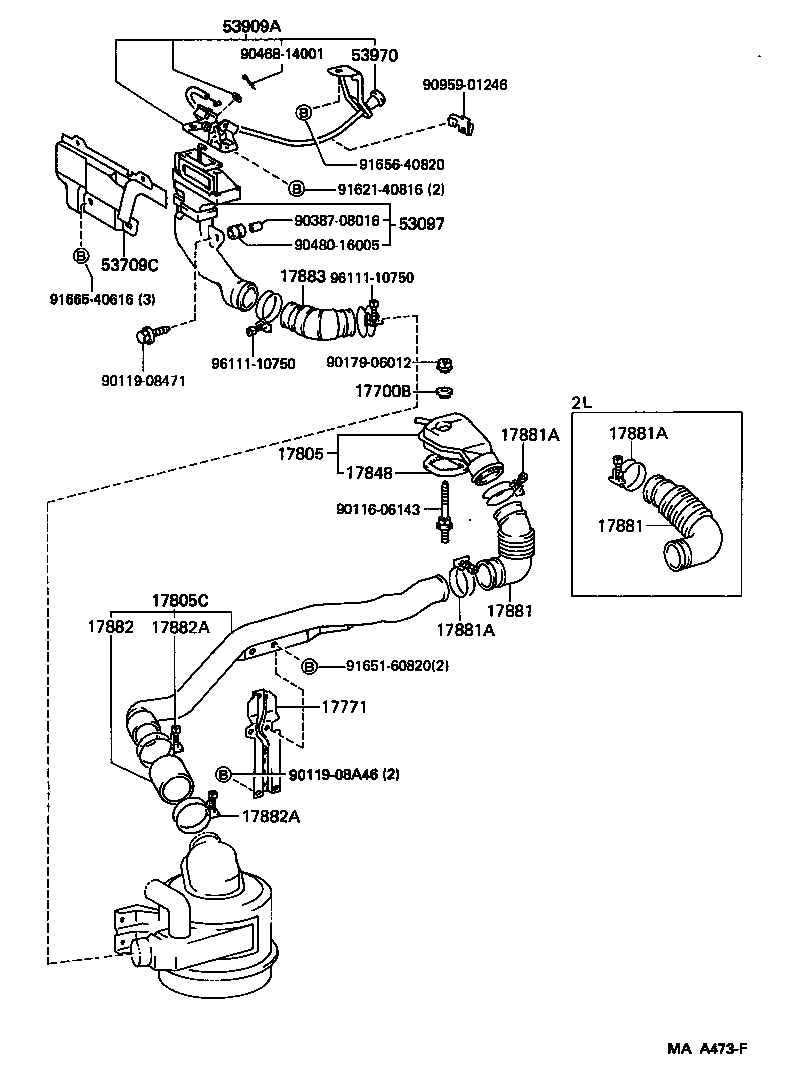

Figure MAA467C MAA467C 1987-08 → 1988-08 Figure MAA473F MAA473F 1987-08 → 1988-08 Figure MAA468G MAA468G 1987-08 → 1988-08 Figure MAF014A MAF014A 1988-08 → — Figure MAB744B MAB744B 1988-08 → — Figure MAA467C MAA467C 1987-08 → — Figure MAA473F MAA473F 1987-08 → — Figure MAA468G MAA468G 1987-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17736 Nut, Air Cleaner Case
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17895 Shroud, Hot Air
53097 Inlet Sub-assy
53709C Cover Sub-assy, Air Cleaner Inlet
53909A Bracket Sub-assy, Air Cleaner Shutter, NO.1
53970 Cable Assy, Air Cleaner Inlet Shutter Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
