Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 6 illustrations

Illustrations

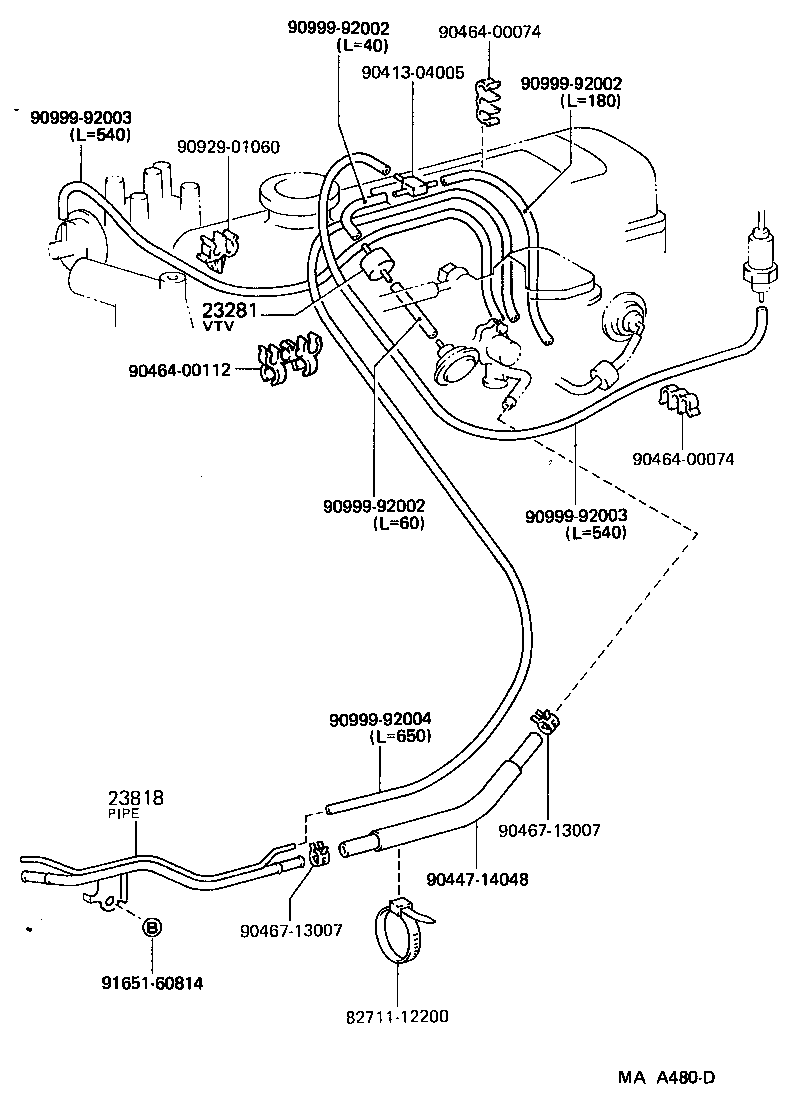

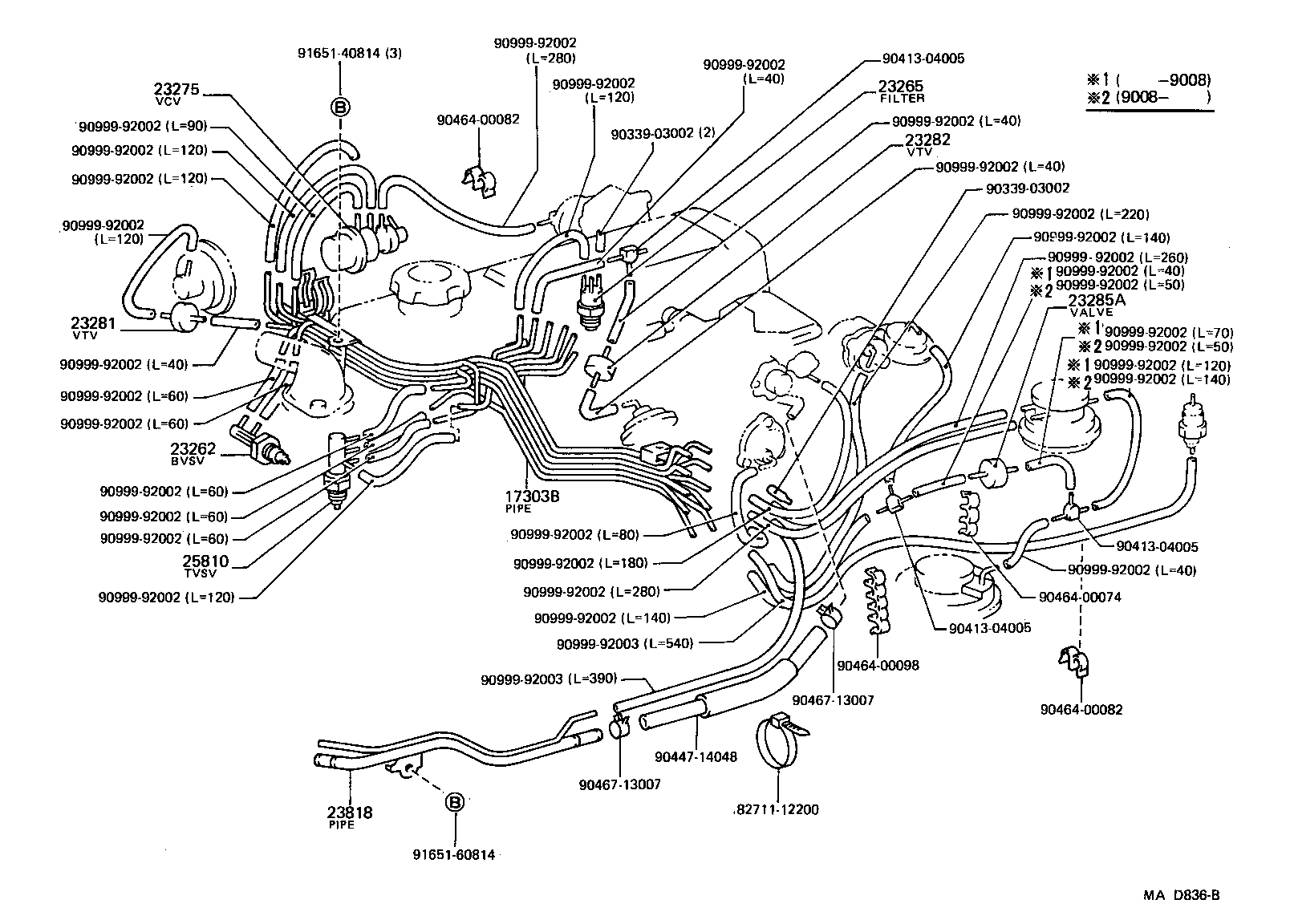

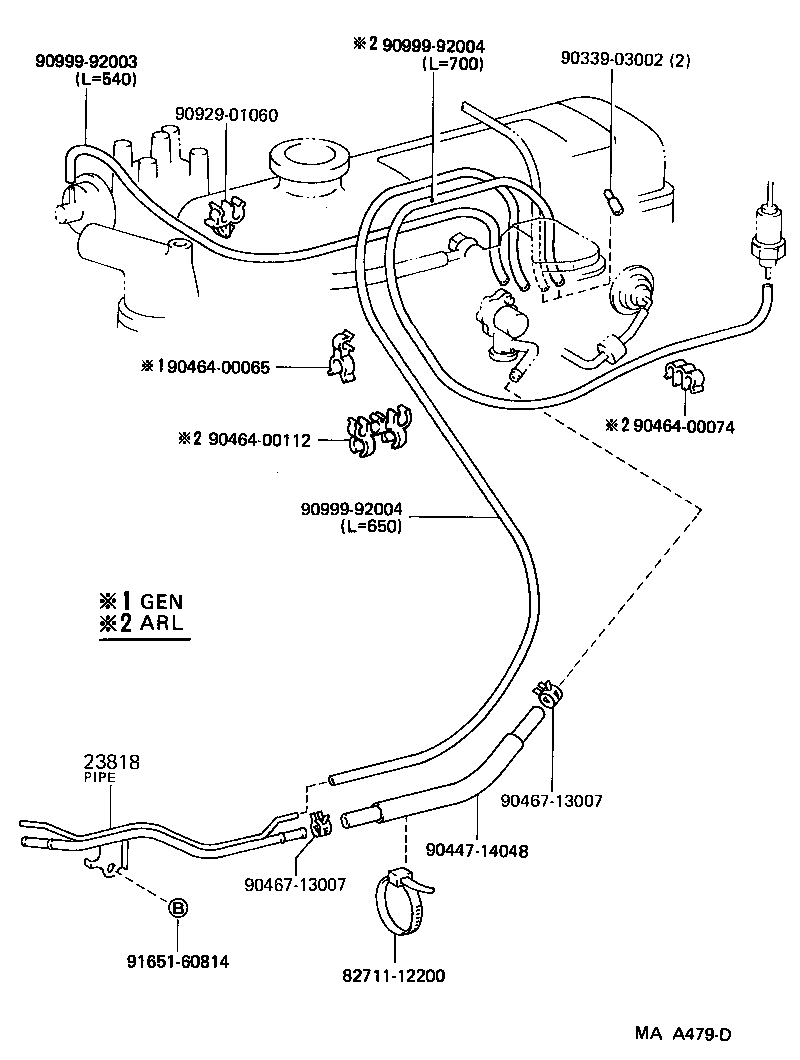

Figure MA9504B MA9504B 1987-08 → — Figure MAB273 MAB273 1988-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MAA479D MAA479D 1987-08 → — Figure MAA480D MAA480D 1987-08 → 1990-01 Figure MAD836B MAD836B 1990-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
