Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

15 part groups · 6 illustrations

Illustrations

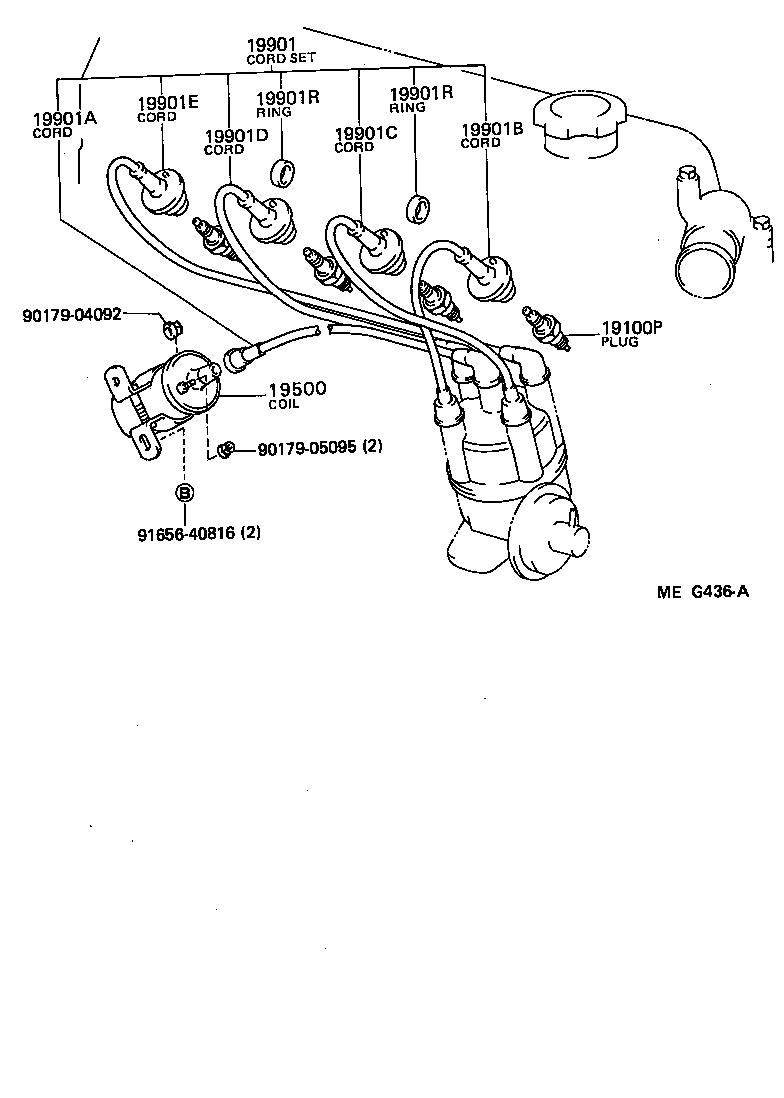

Figure ME7990E ME7990E 1987-08 → 1988-08 Figure MAB443A MAB443A 1988-08 → — Figure MEG436A MEG436A 1987-08 → 1989-10 Figure MEG436A MEG436A 1989-10 → 1991-09 Figure MAA423A MAA423A 1989-10 → — Figure MAA423A MAA423A 1991-09 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
