Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe
Discontinued model
Data version 1995-10

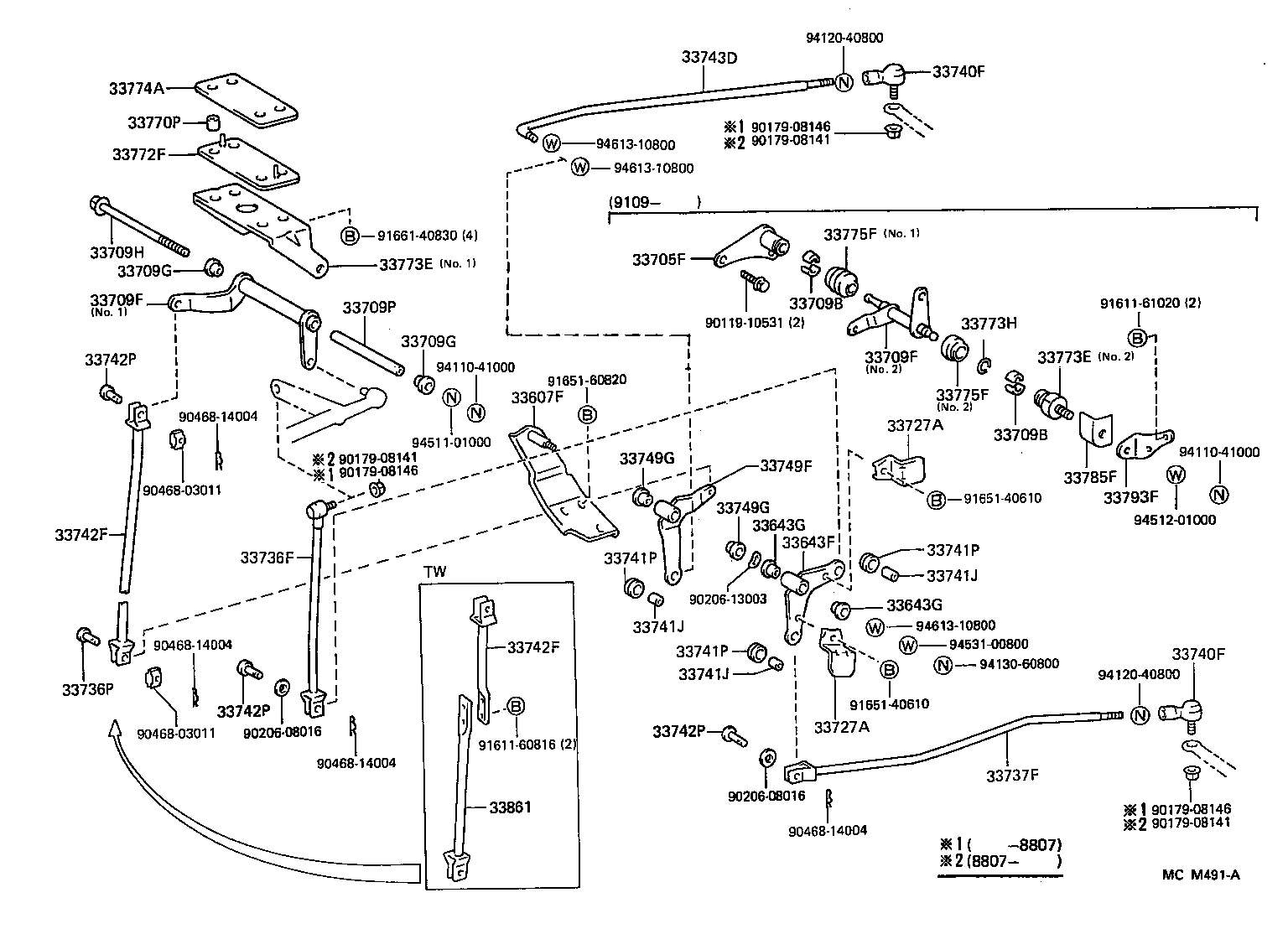

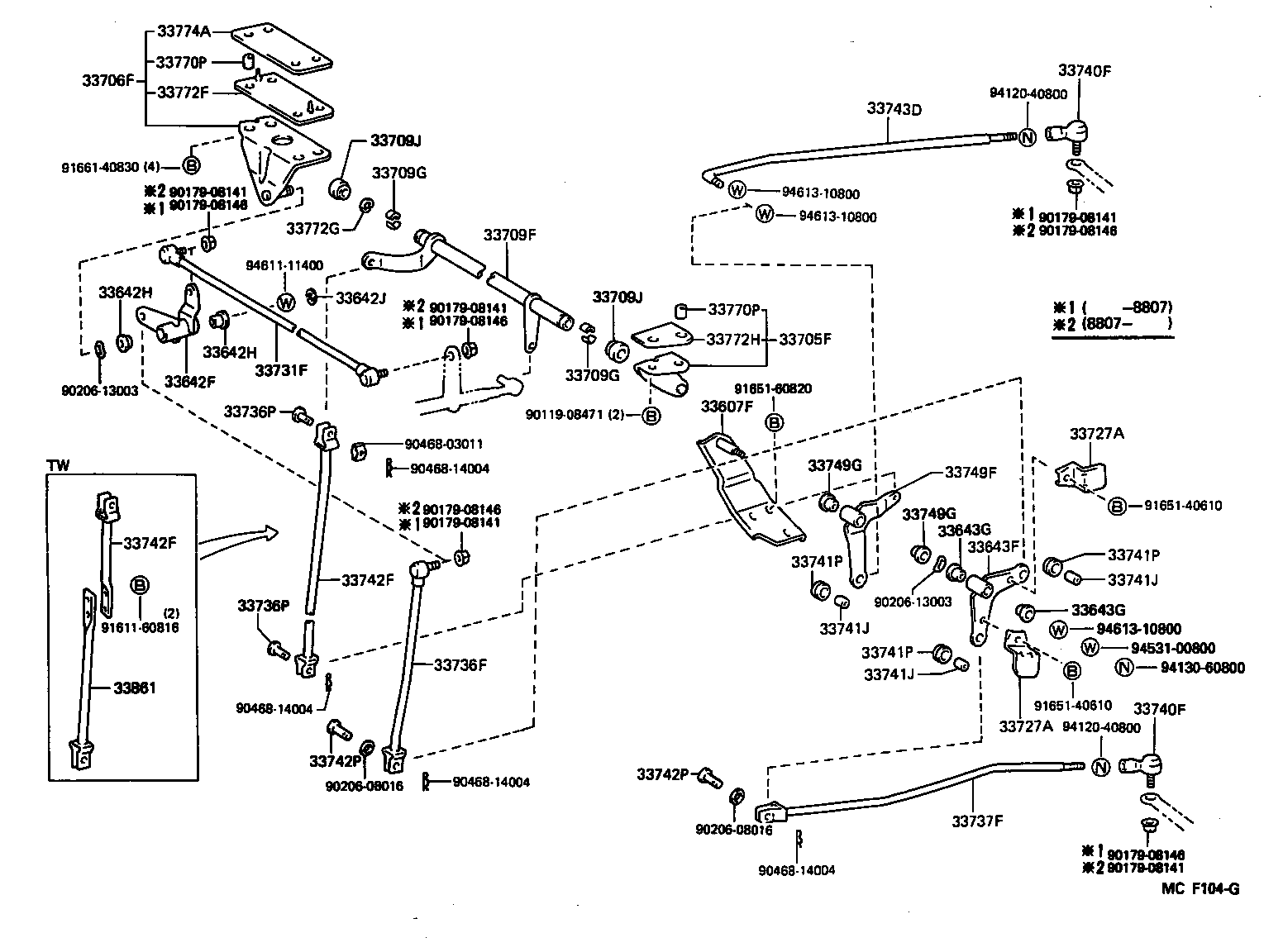

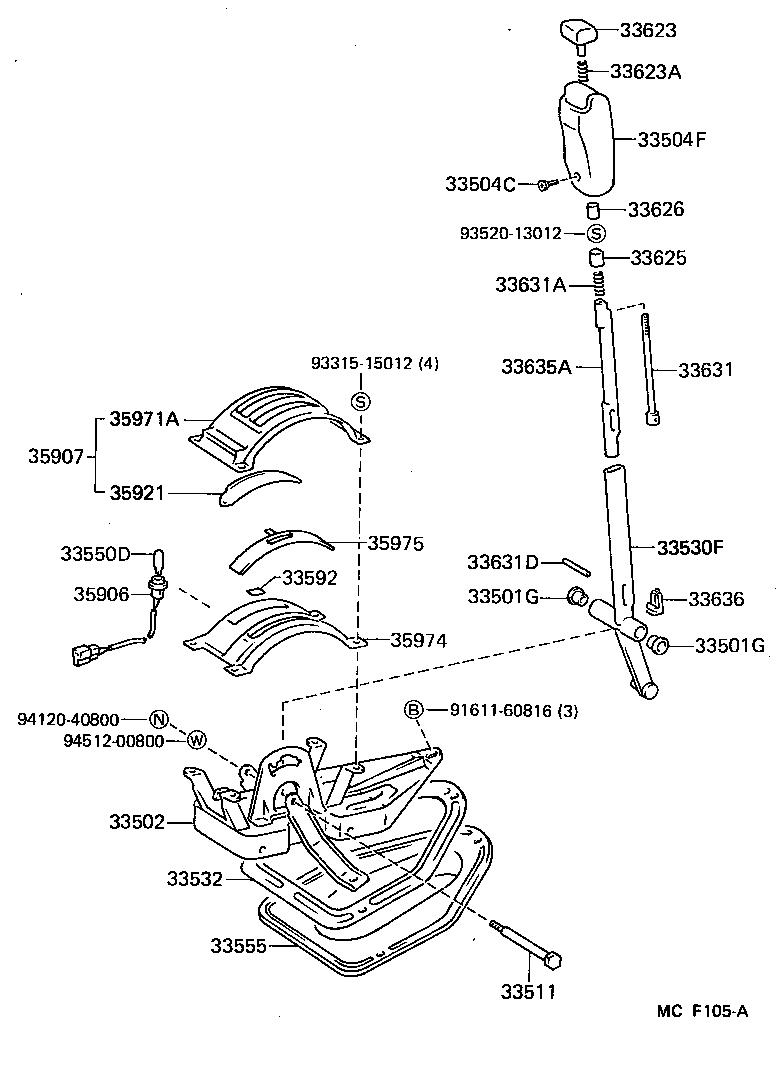

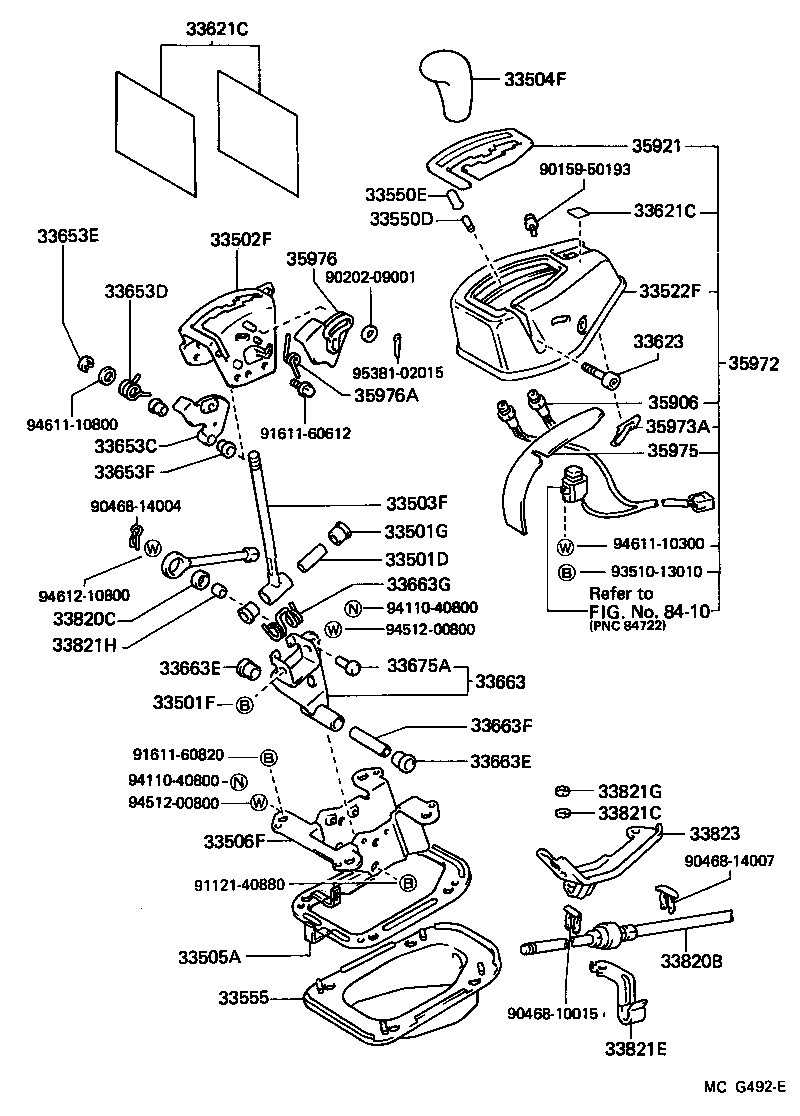

Shift Lever & Retainer
103 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33501D | Collar (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33501F | Shaft Sub-assy, Control (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33502B | Grommet (FOR SHIFT LEVER PLATE) |
| 33502C | Bush (FOR FLOOR SHIFT SETTING) |
| 33502D | Bolt, Hexagon (FOR SHIFT LEVER PLATE) |
| 33502E | Spring, Torsion (FOR SHIFT LEVER PLATE) |
| 33502F | Housing Sub-assy, Shift Lever (FOR FLOOR SHIFT) |
| 33502G | Collar (FOR SHIFT LEVER PLATE) |
| 33503A | Collar(FOR SHIFT LEVER) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33503G | Bush(FOR SHIFT LEVER) |
| 33503P | Ring, O(FOR SHIFT LEVER) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33505A | Seal Sub-assy, Control Shaft Dust (FOR FLOOR SHIFT) |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33522F | Seat, Shift Lever Plate (FOR FLOOR SHIFT) |
| 33528 | Cover, Control Shaft |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33532 | Plate, Dust Boot |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33592 | Reflector, Shift Position Lamp |
| 33607F | Support Sub-assy, Control Rod (FOR FLOOR SHIFT) |
| 33621C | Label, Control Lever Information |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33636 | Guide, Wire, NO.2 (FOR SHIFT LEVER) |
| 33642F | Lever, Gear Selecting, NO.2 |
| 33642H | Bush (FOR GEAR SELECTING LEVER) |
| 33642J | Ring, E (FOR GEAR SELECTING LEVER) |
| 33643F | Lever, Gear Selecting, NO.3 |
| 33643G | Bush (FOR GEAR SELECTING LEVER) |
| 33653C | Guide, Shift Lever Wire |
| 33653D | Spring, Torsion (FOR FLOOR SHIFT LEVER GUIDE) |
| 33653E | Ring, E (FOR FLOOR SHIFT LEVER GUIDE) |
| 33653F | Bush |
| 33663 | Lever, Control |
| 33663E | Bush (FOR FLOOR SHIFT CONTROL LEVER) |
| 33663F | Collar (FOR FLOOR SHIFT CONTROL LEVER) |
| 33663G | Spring, Torsion (FOR FLOOR SHIFT CONTROL LEVER) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33705F | Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT) |
| 33706F | Support Sub-assy, Cross Shaft, NO.2 (FOR FLOOR SHIFT) |
| 33709B | Bush (FOR CROSS SHAFT) |
| 33709F | Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT) |
| 33709G | Bush (For Cross Shaft, NO.1 |
| 33709H | Bolt, Hexagon (FOR CROSS SHAFT) |
| 33709J | Cover, Cross Shaft Dust |
| 33709P | Collar (FOR CROSS SHAFT) |
| 33710 | Rod Assy, Gear Shifting, NO.1 |
| 33727A | Insulator Connecting Rod Bush Heat |
| 33731F | Rod, Gear Selecting, NO.1 (FOR FLOOR SHIFT) |
| 33736F | Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT) |
| 33736P | Pin, W/Hole(FOR GEAR SELECTING NO.2 ROD) |
| 33737F | Rod, Gear Selecting, NO.3 (FOR FLOOR SHIFT) |
| 33740F | End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT) |
| 33741J | Bush, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33741P | Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33742F | Rod, Gear Shifting, NO.2(FOR FLOOR SHIFT) |
| 33742P | Pin, W/Hole |
| 33743D | Rod, Gear Shifting, NO.3 (FOR FLOOR SHIFT) |
| 33749F | Lever, Gear Shift, NO.3 (FOR FLOOR SHIFT) |
| 33749G | Bush (FOR FLOOR SHIFT GEAR SHIFTING LEVER) |
| 33770P | Coller (FOR CROSS SHAFT) |
| 33772F | Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT) |
| 33772G | Ring, Snap (FOR CROSS SAFT SUPPORT BUSH) |
| 33772H | Bush, Cross Shaft Support, NO.2 (FOR FLOOR SHIFT) |
| 33773E | Support, Cross Shaft, NO.1 |
| 33773H | Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33774A | Support, Cross Shaft, NO.2 |
| 33775F | Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT) |
| 33785F | Insulator, Cross Shaft Lever Heat, NO.1 (FOR FLOOR SHIFT) |
| 33793F | Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT) |
| 33820B | Cable Assy, Transmission Control |
| 33820C | Bush (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33821H | Collar (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33861 | Rod, Gear Shifting, NO.4 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35972 | Cover, Position Indicator Housing |
| 35973A | Attachment, Position Indicator Housing Cover |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 35976A | Spring, Torsion (FOR POSITION INDICATER SLIDE COVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
