Vane Pump & Reservoir (POWER STEERING)

33 part groups · 3 illustrations

Illustrations

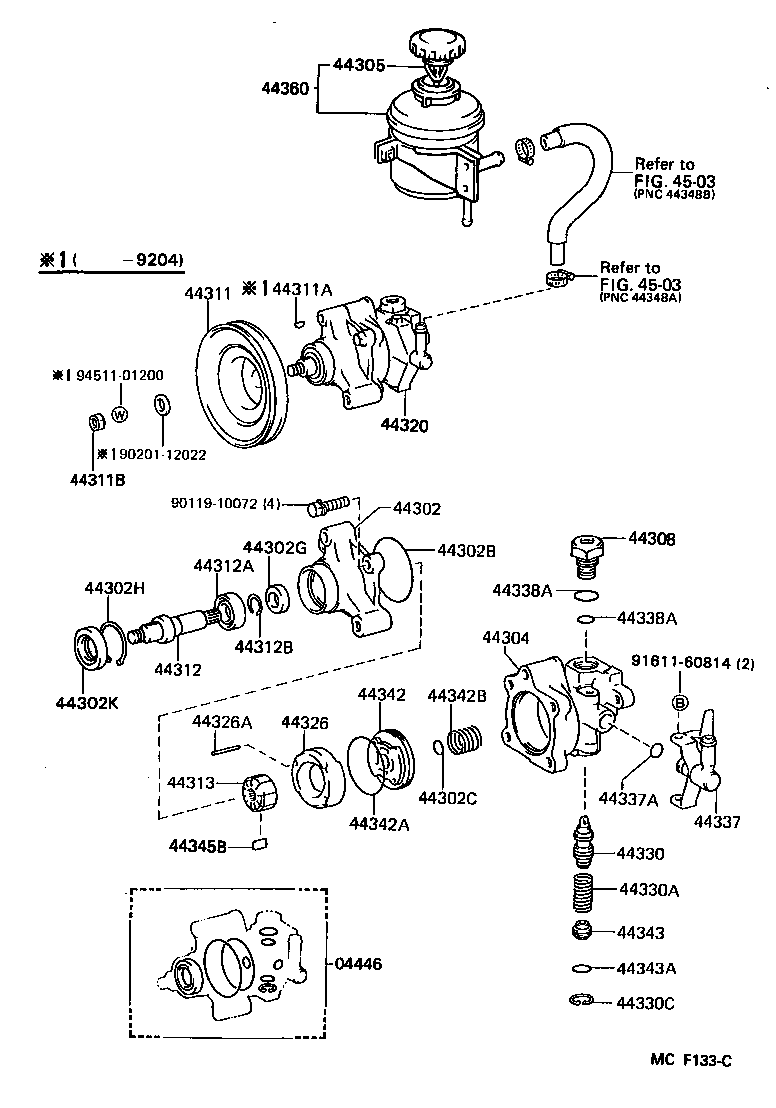

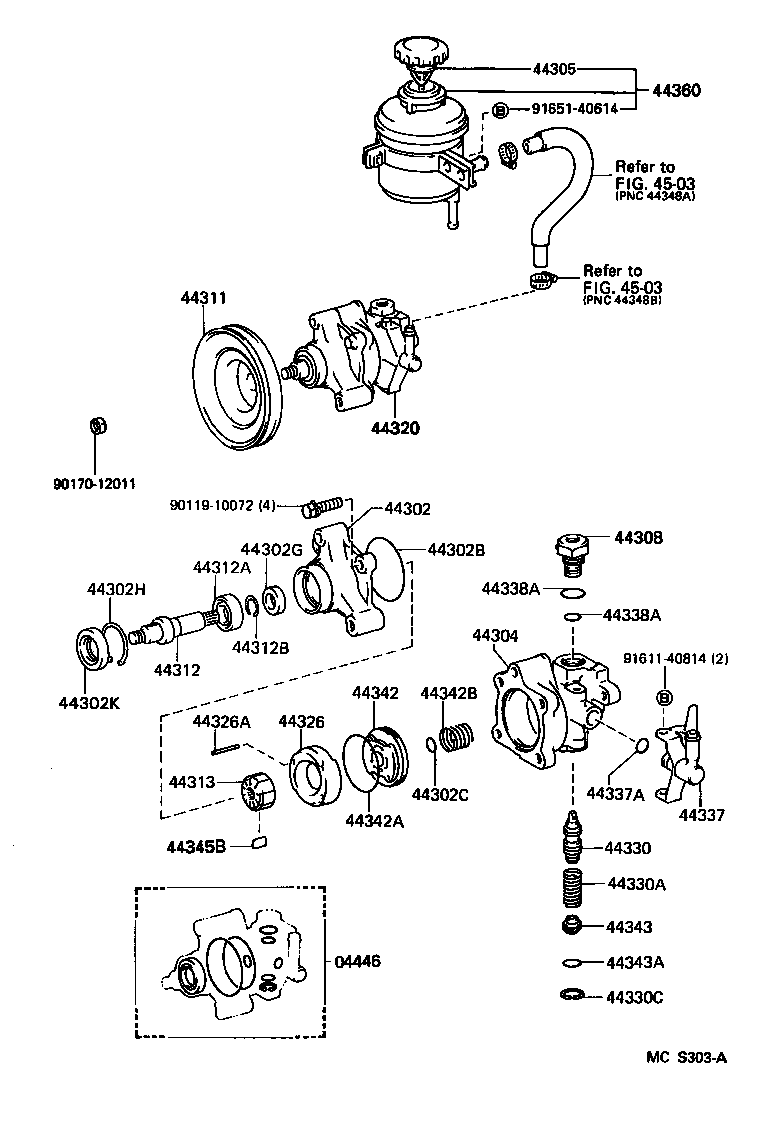

Figure MCF131E MCF131E 1987-08 → 1992-04 Figure MCF133C MCF133C 1987-08 → 1992-04 Figure MCS303A MCS303A 1992-04 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302 Housing Sub-assy, Vane Pump, Front
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44302C Ring, O, NO.2(FOR VANE PUMP HOUSING)
44302G Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
44302H Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
44302K Seal, Oil, NO.3(FOR VANE PUMP HOUSING)
44304 Housing Sub-assy, Vane Pump, Rear
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44312 Shaft, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44313 Rotor, Vane Pump
44320 Pump Assy, Vane
44326 Ring, Cam(FOR VANE PUMP)
44326A Pin, Straight(FOR VANE PUMP CAM RING)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44330C Ring, Snap(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44342 Plate, Vane Pump Side, Rear
44342A Ring, O(FOR VANE PUMP SIDE PLATE REAR)
44342B Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
44343 Seat, Flow Control Spring
44343A Ring, O(FOR FLOW CONTROL SPRING SEAT)
44345B Plate, Vane Pump
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
