Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe
Discontinued model
Data version 1995-10

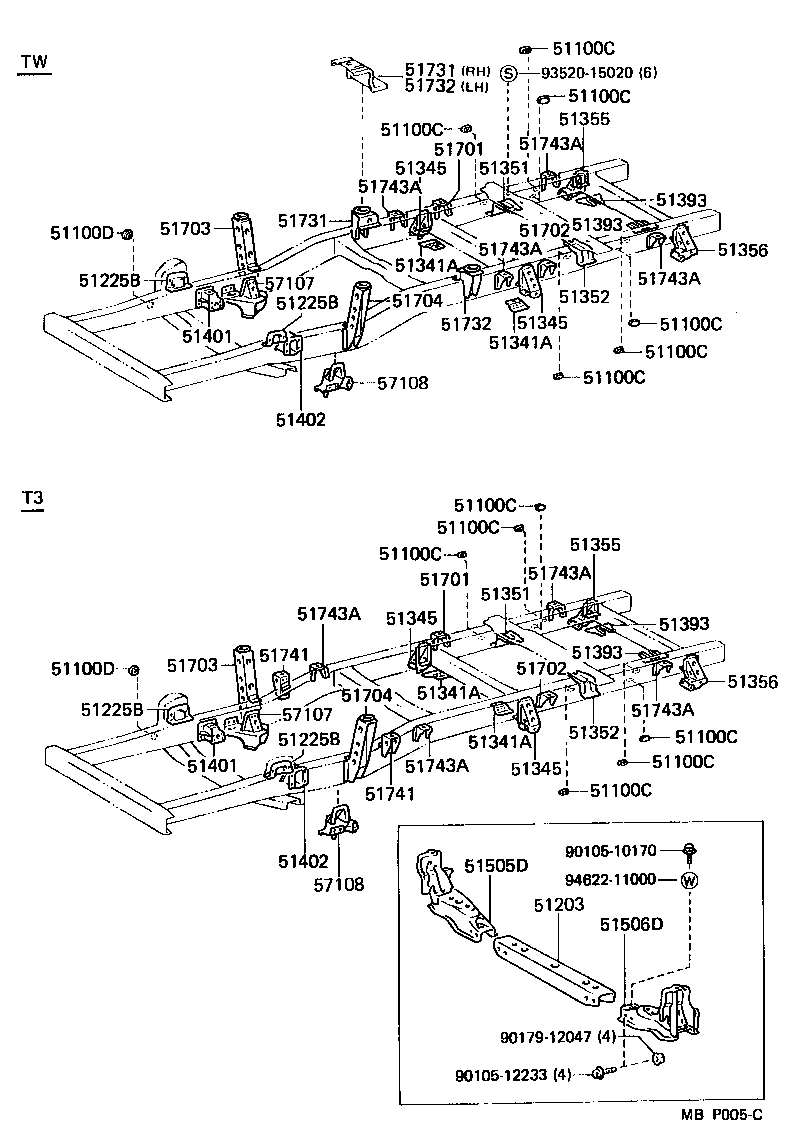

Frame
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100C | Plug, Hole(FOR FRAME) |
| 51100D | Plug, Hole(FOR FRAME) |
| 51100F | Frame Sub-assy |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51205A | Bracket Sub-assy, Differential Support |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51225B | Bracket, Front Suspension Member, RH |
| 51341A | Gusset, Crossmember, NO.4 Lower |
| 51345 | Bracket, Rear Spring, Front |
| 51351 | Gusset, Crossmember, NO.5 RH |
| 51352 | Gusset, Crossmember, NO.5 LH |
| 51355 | Bracket, Rear Spring, Rear RH |
| 51356 | Bracket, Rear Spring, Rear LH |
| 51393 | Gusset, Rear Frame Crossmember, Lower |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51505D | Support Assy, Front Suspension RH |
| 51506D | Support Assy, Front Suspension, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51731 | Bracket, Cab Rear Mounting, RH |
| 51732 | Bracket, Cab Rear Mounting, LH |
| 51741 | Bracket, Rear Body Mounting, NO.1 |
| 51743A | Bracket, Rear Body Mounting, NO.2 LH |
| 57107 | Bracket Sub-assy, Strut Bar, RH |
| 57108 | Bracket Sub-assy, Strut Bar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
