Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

17 part groups · 2 illustrations

Illustrations

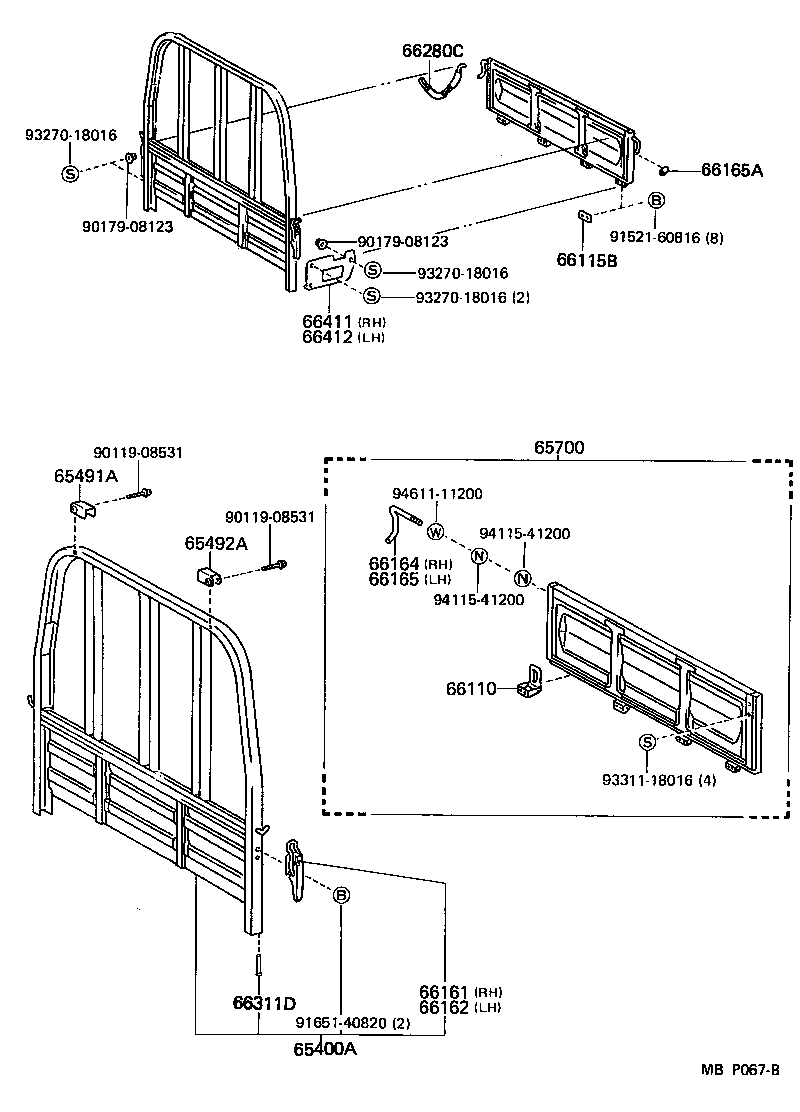

Figure MBP066C MBP066C 1987-08 → — Figure MBP067B MBP067B 1987-08 → —

Part groups

PNCDescription
65400A Guard Assy, Rear Body
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65700 Gate Assy, Rear Body Tail
66110 Hinge Assy, Tail Gate
66115B Retainer, Gate Hinge
66121A Bolt, Tail Gate Male
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280C Chain Assy, Tail Gate
66311D Hook, Rope
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
