Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 2 illustrations

Illustrations

Figure MBP105C

MBP105C 1987-08 → 1988-08

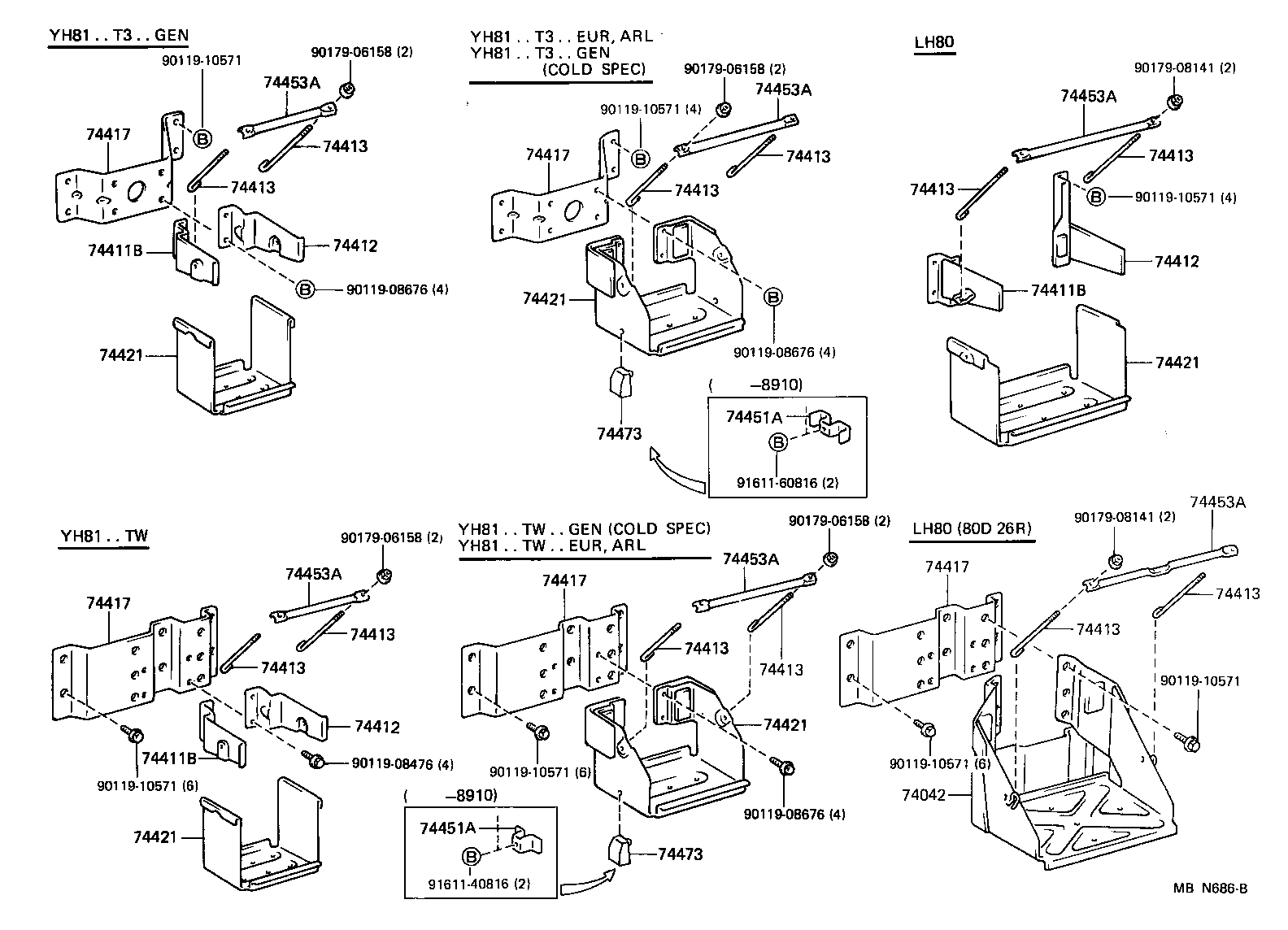

Figure MBN686B

MBN686B 1988-08 → —

Part groups

PNC	Description
74042	Bracket Sub-assy, Battery
74411B	Bracket, Battery, Front
74412	Bracket, Battery, Rear
74413	Bolt, Battery Clamp
74417	Bracket, Battery Carrier
74421	Hanger, Battery
74451A	Plate, Battery Set
74453A	Bar, Battery Set Plate
74473	Spacer, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
