Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe
Discontinued model
Data version 1995-10

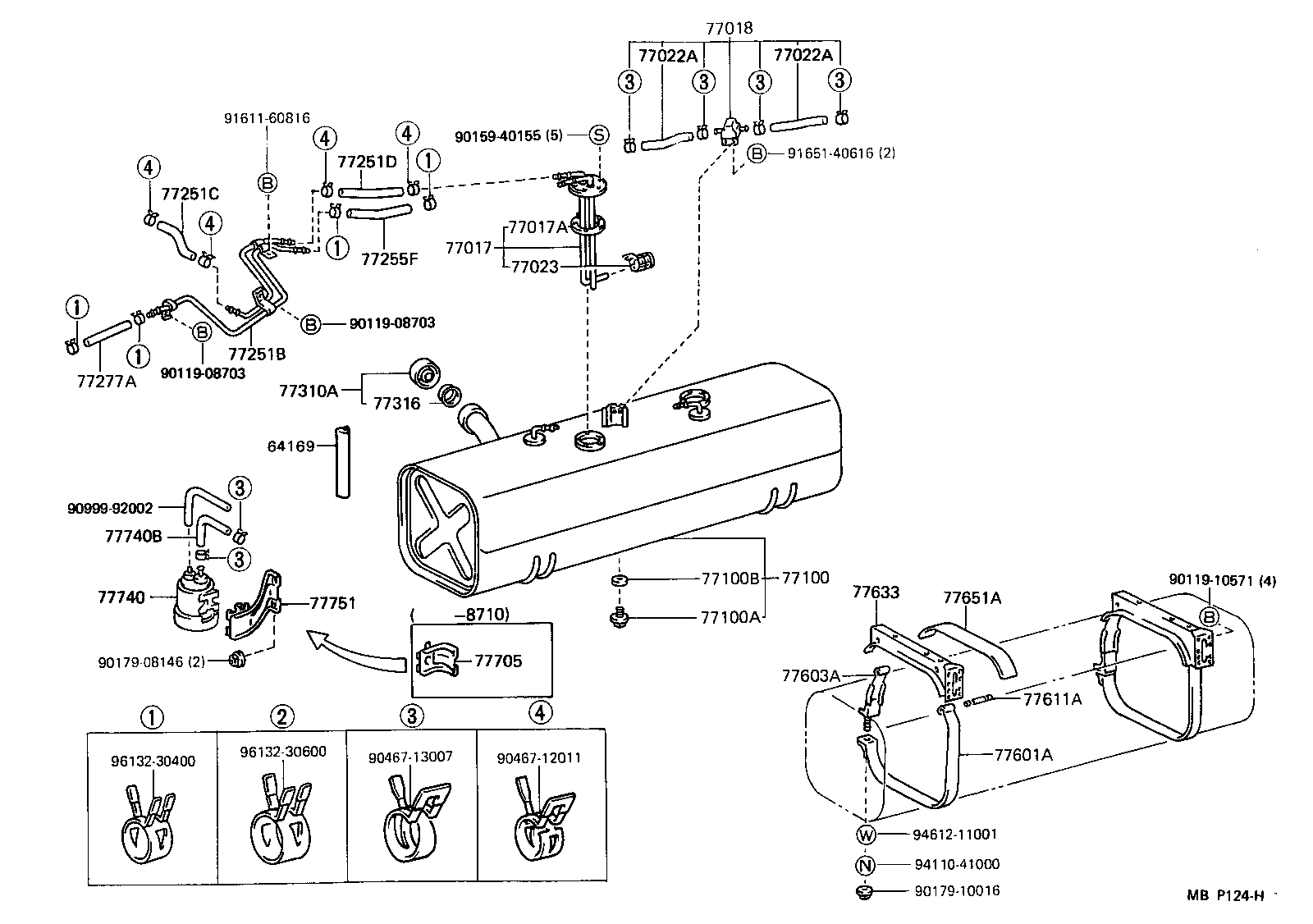

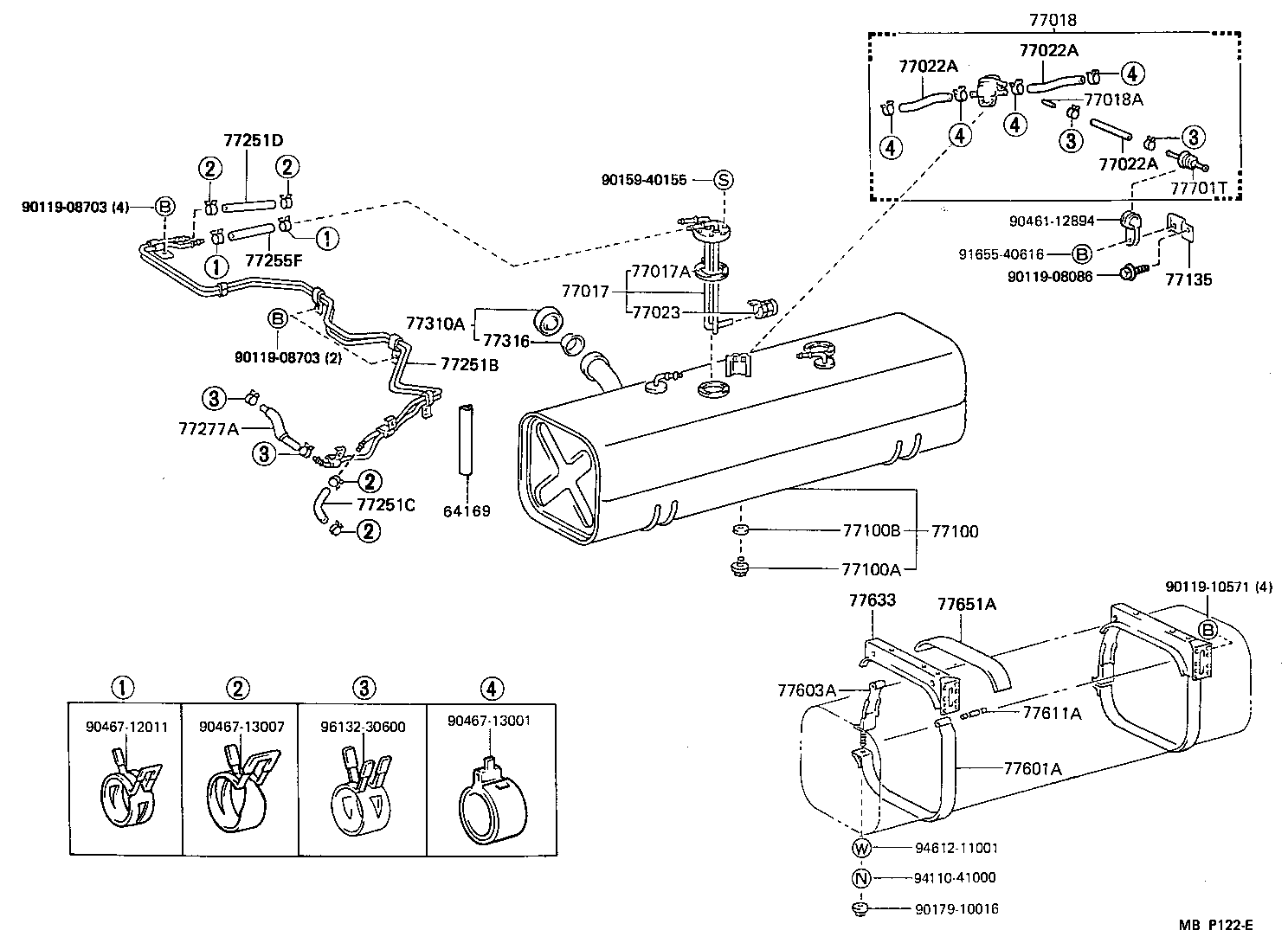

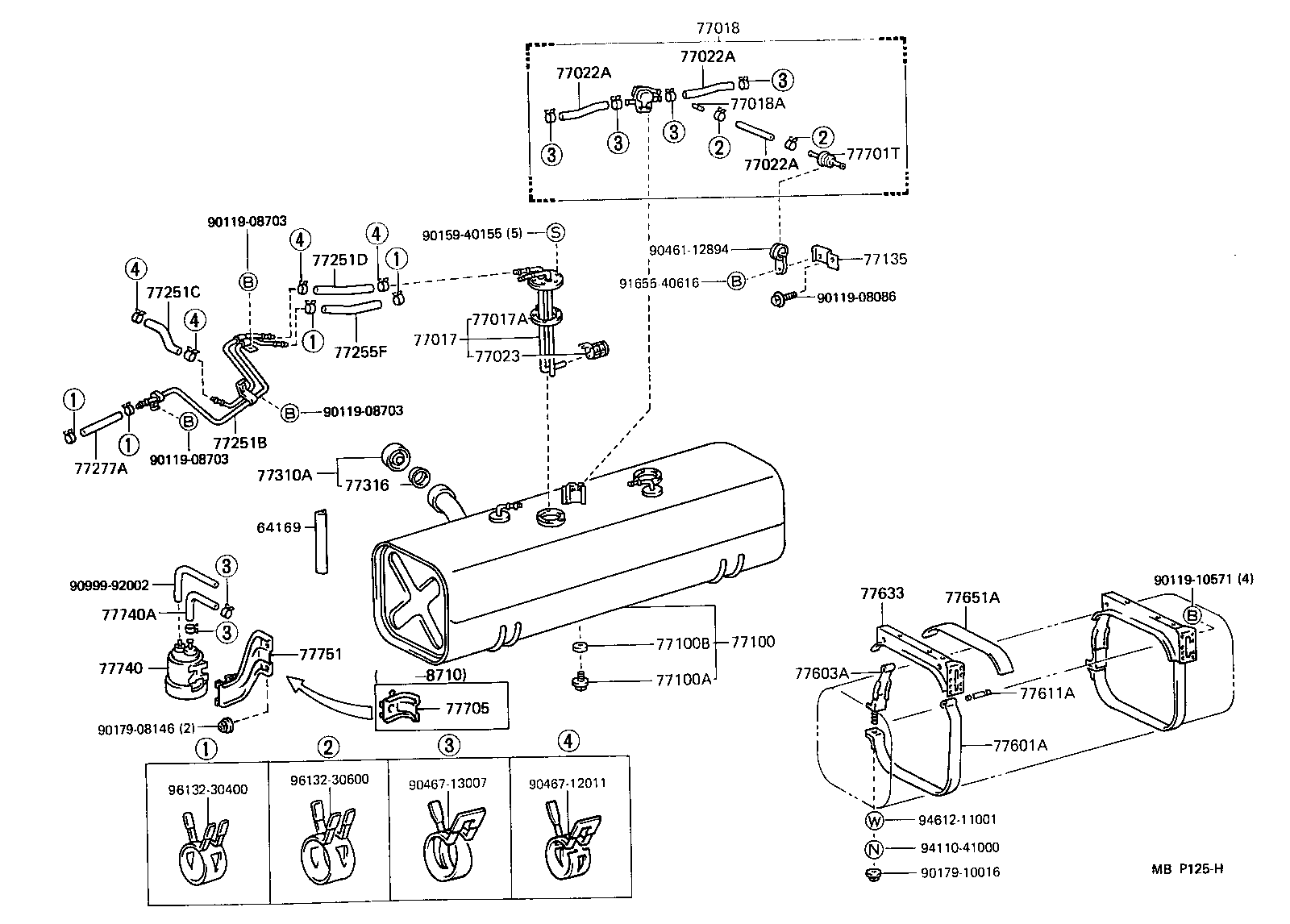

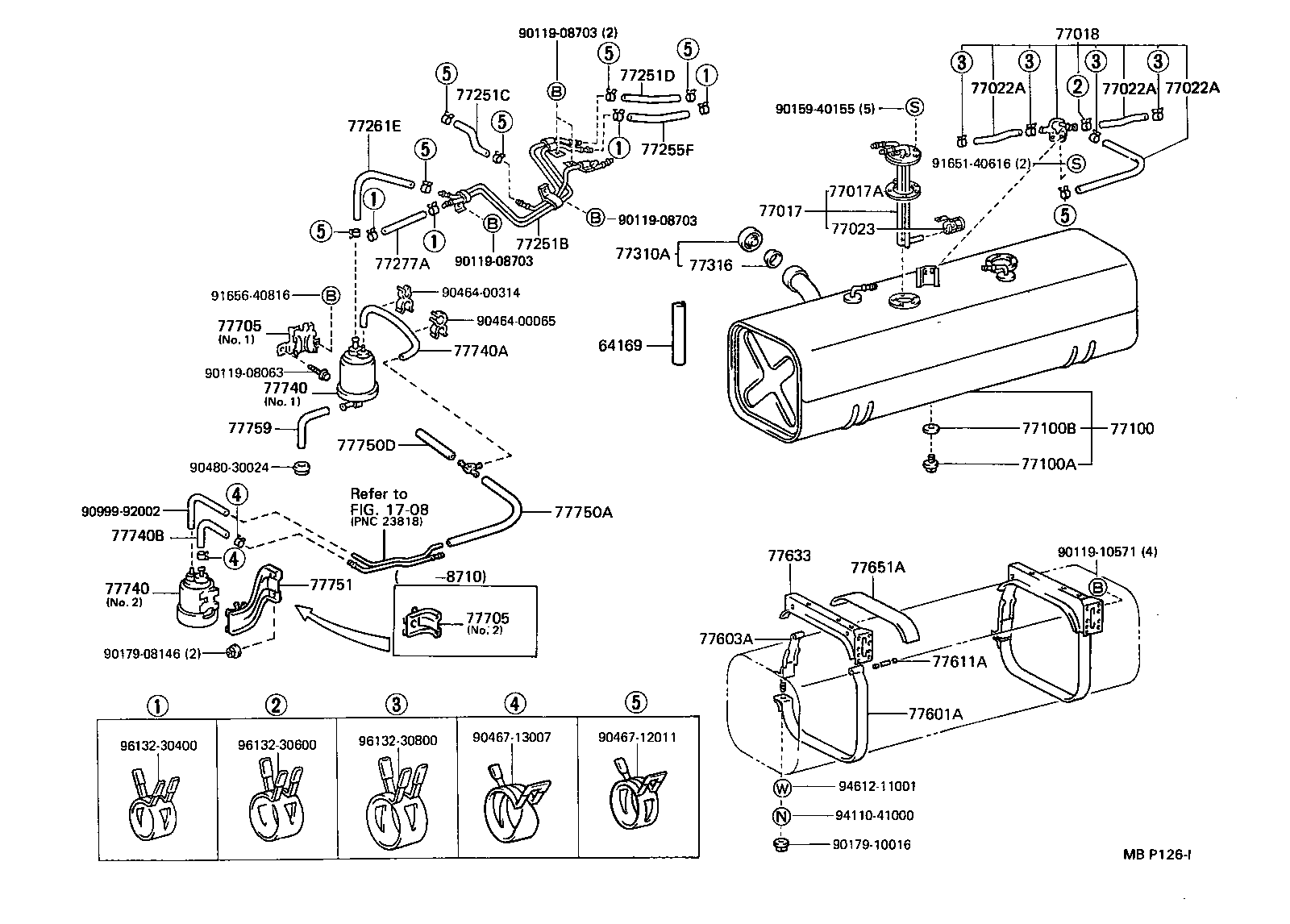

Fuel Tank & Tube
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 64169 | Protector, Fuel Inlet |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77018A | Orifice, Fuel Vapour |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77633 | Stay, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77705 | Bracket Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77750A | Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77750D | Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
