Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe
Discontinued model
Data version 1995-10

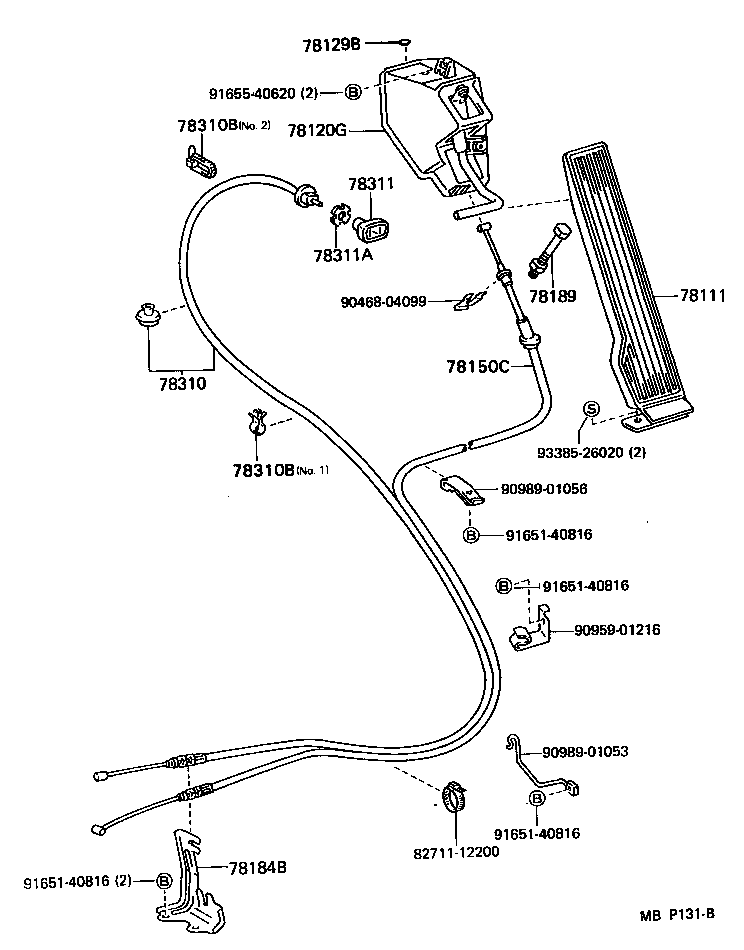

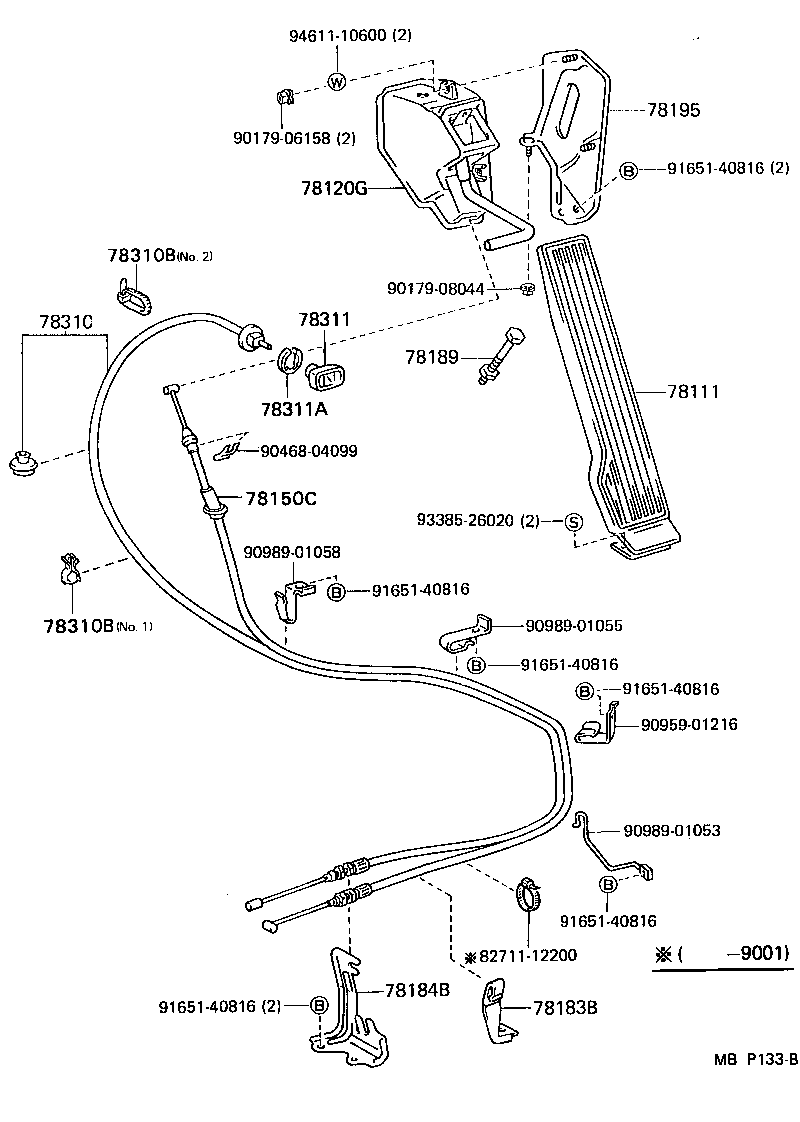

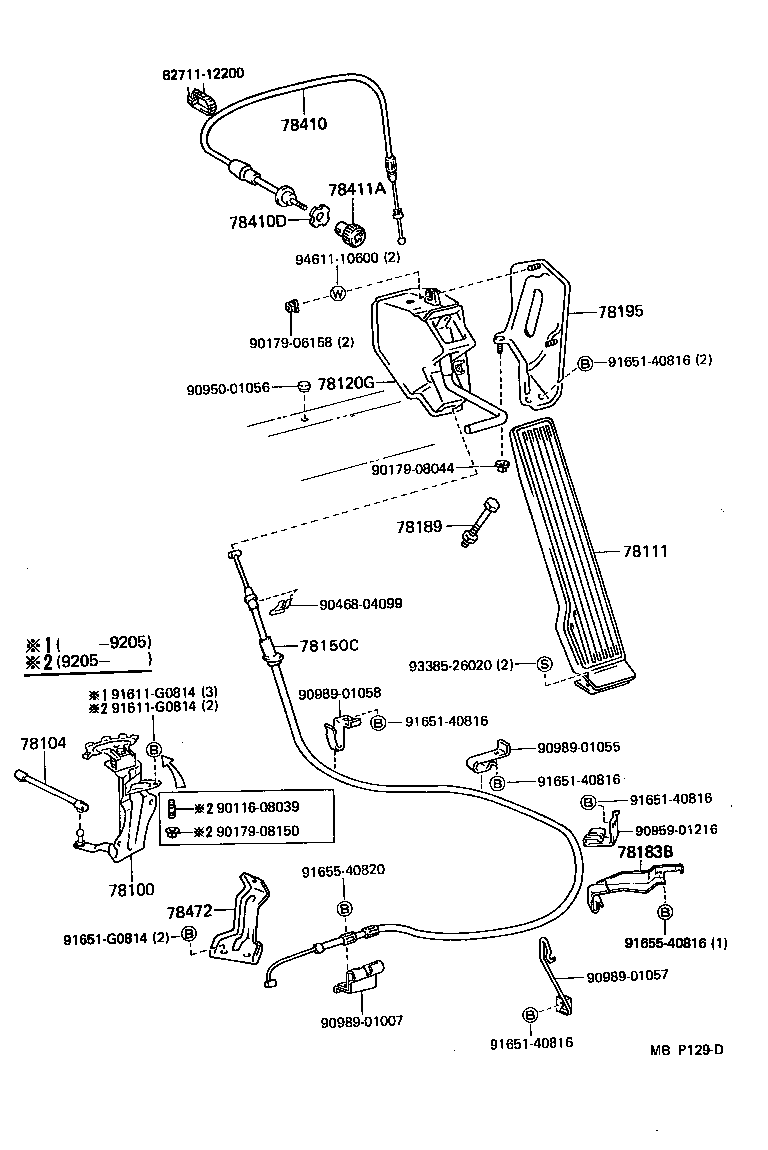

Accelerator Link
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78109A | Bracket Sub-assy, Accelerator Wire Clamp |
| 78111 | Pedal, Accelerator |
| 78120G | Rod Assy, Accelerator Pedal |
| 78129B | Seal, Accelerator Pedal Arm |
| 78150C | Wire Assy, Accelerator Flexible |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78195 | Bracket, Accelerator Link |
| 78310 | Cable Assy, Choke |
| 78310B | Clamp, Choke Cable |
| 78311 | Knob, Choke Control Cable |
| 78311A | Nut, Choke Shaft Set |
| 78410 | Cable Assy, Throttle Control |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
