Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 5 illustrations

Illustrations

Figure MEK294C

MEK294C 1987-08 → —

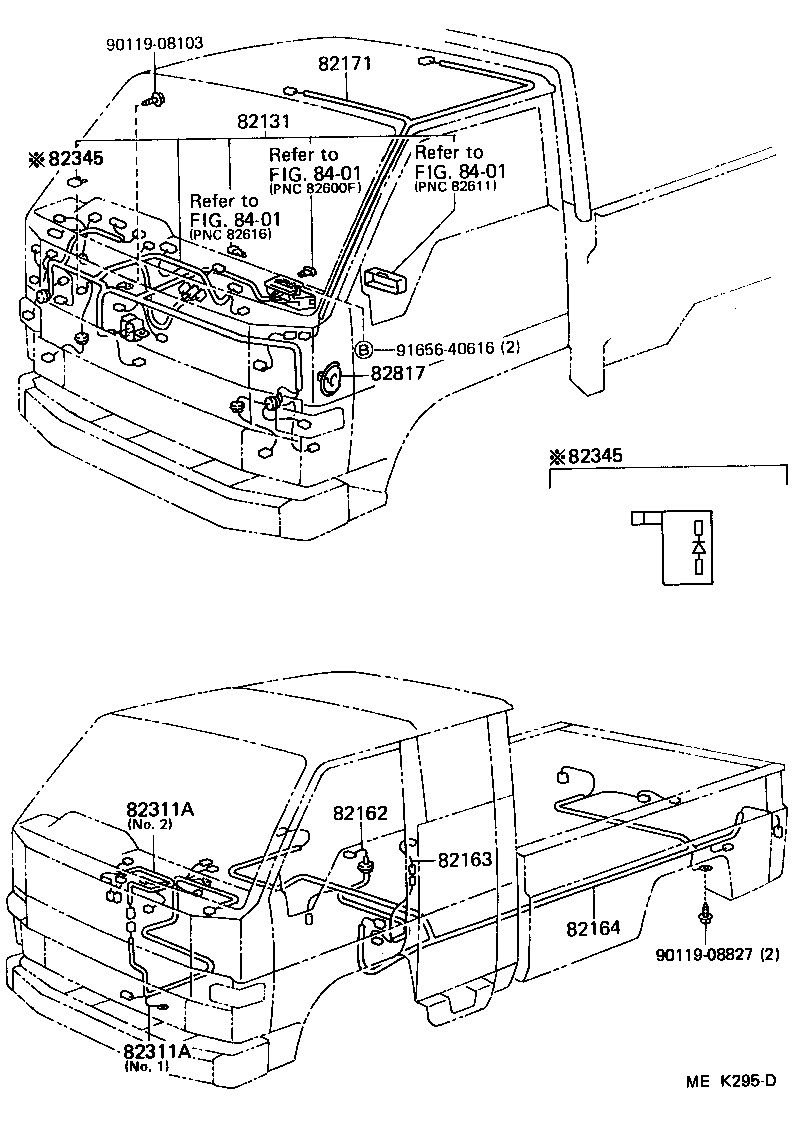

Figure MEK295D

MEK295D 1987-08 → —

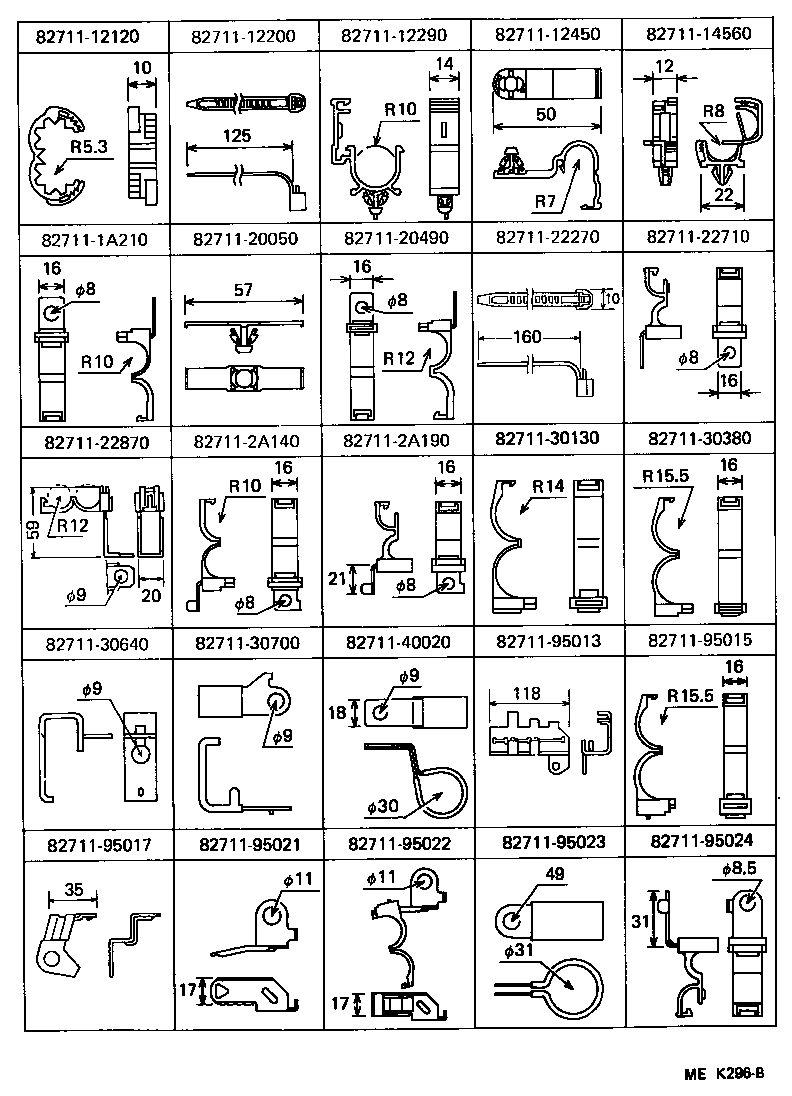

Figure MEK296B

MEK296B 1987-08 → —

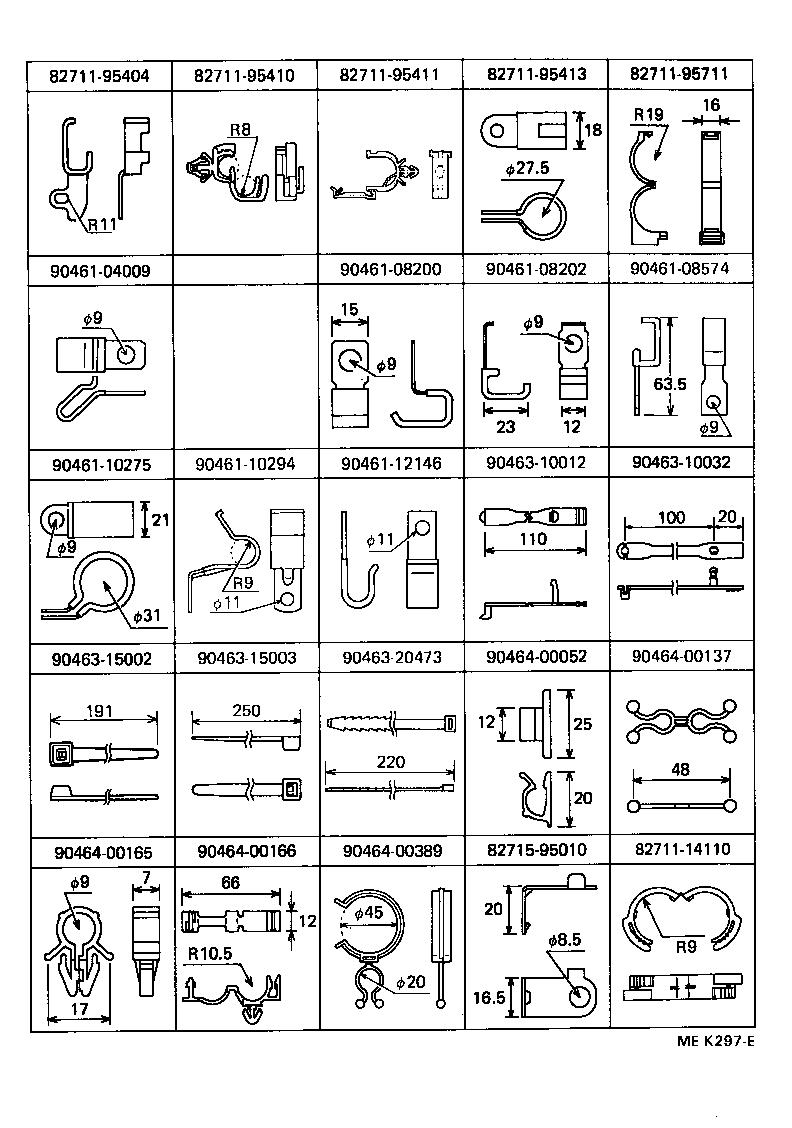

Figure MEK297E

MEK297E 1987-08 → —

Figure MEL837B

MEL837B 1987-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82031	Wire Sub-assy, Ignition Coil
82060A	Wire Assy, Engine, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82131	Wire, Cowl
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82171	Wire, Roof, NO.1
82203	Wire Sub-assy, Alternator
82210C	Fusible Link
82311A	Wire, Air Conditioner
82345	Diode
82817	Protector, Wiring Harness, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
