Heating & Air Conditioning - Control & Air Duct

25 part groups · 5 illustrations

Illustrations

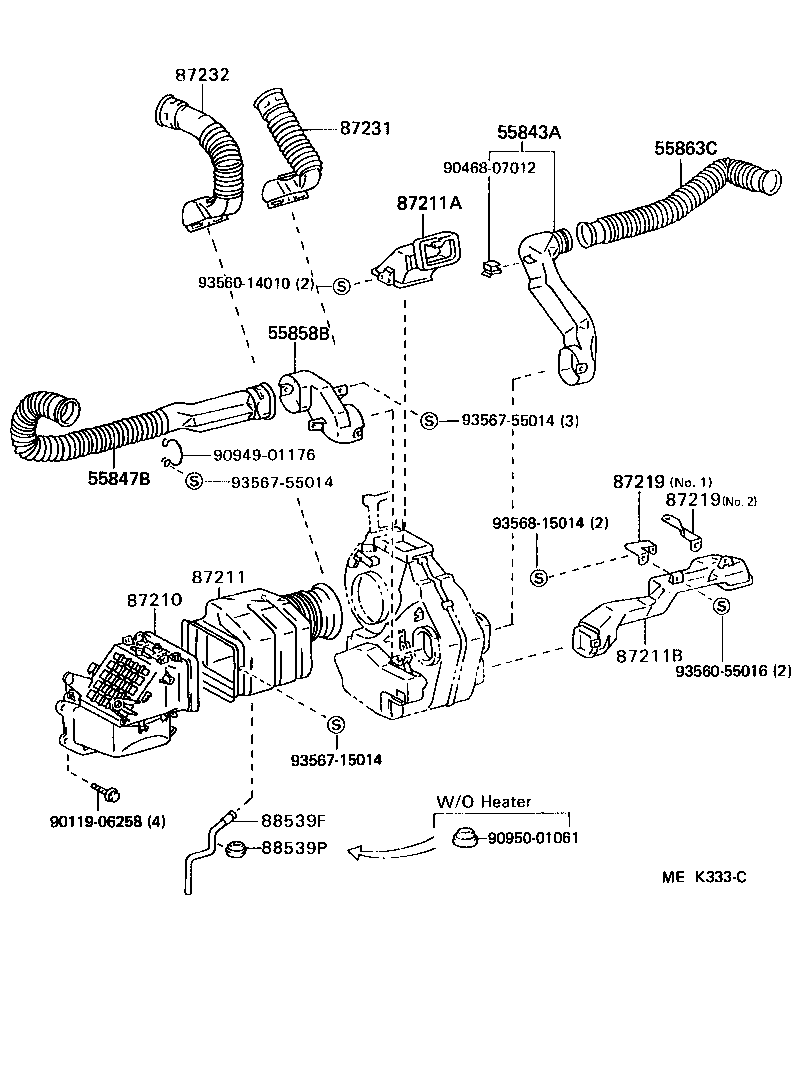

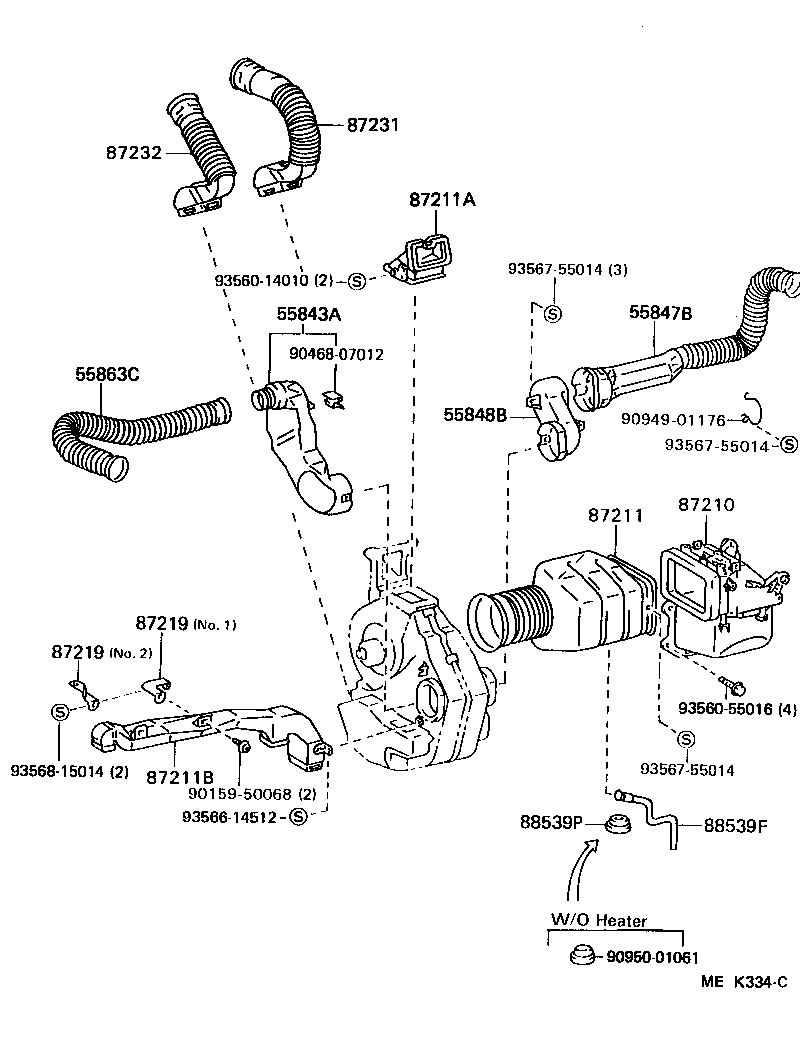

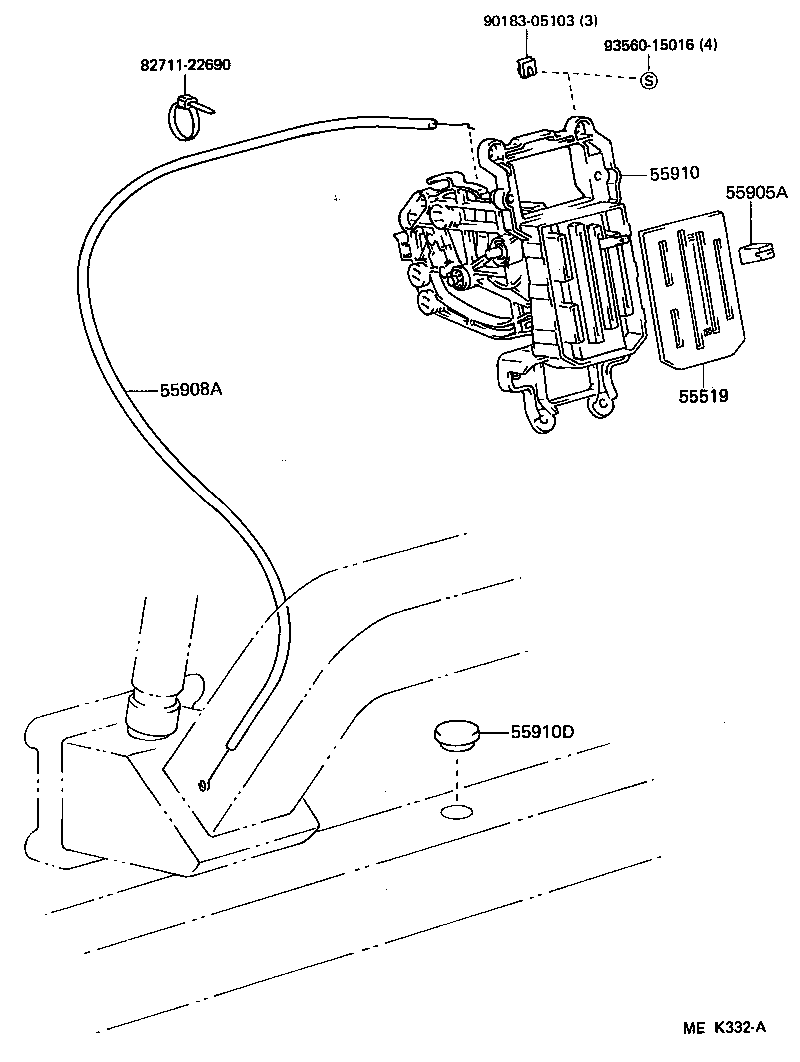

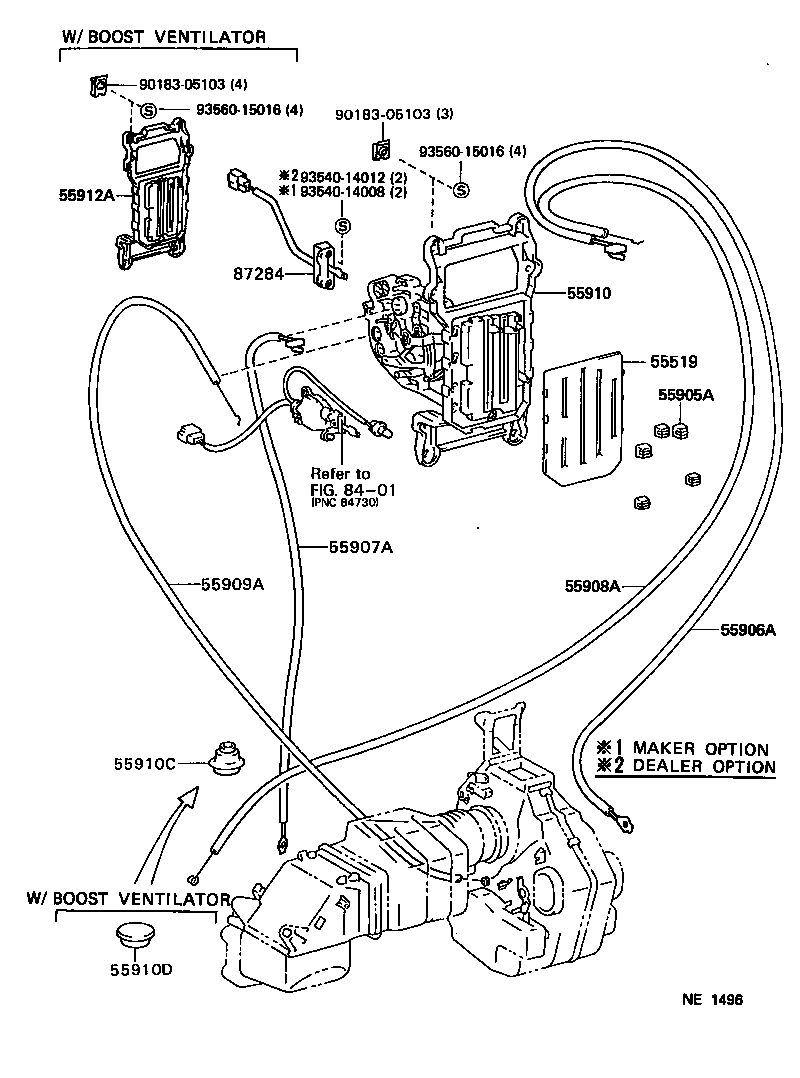

Figure MEK331C MEK331C 1987-08 → 1991-10 Figure NE1496 NE1496 1991-10 → — Figure MEK332A MEK332A 1987-08 → — Figure MEK333C MEK333C 1987-08 → — Figure MEK334C MEK334C 1987-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55847B Duct, Heater TO Register, NO.5
55848B Duct, Heater TO Register, NO.6
55858B Duct, Heater TO Register, NO.6
55863C Boot, Side Ventilator Duct
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
55910D Plug, Hole(FOR HEATER CONTROL CABLE HOLE)
55912A Housing, Heater Control
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87219 Bracket, Front Air Duct
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
88539P Grommet(FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
