Heating & Air Conditioning - Water Piping

15 part groups · 4 illustrations

Illustrations

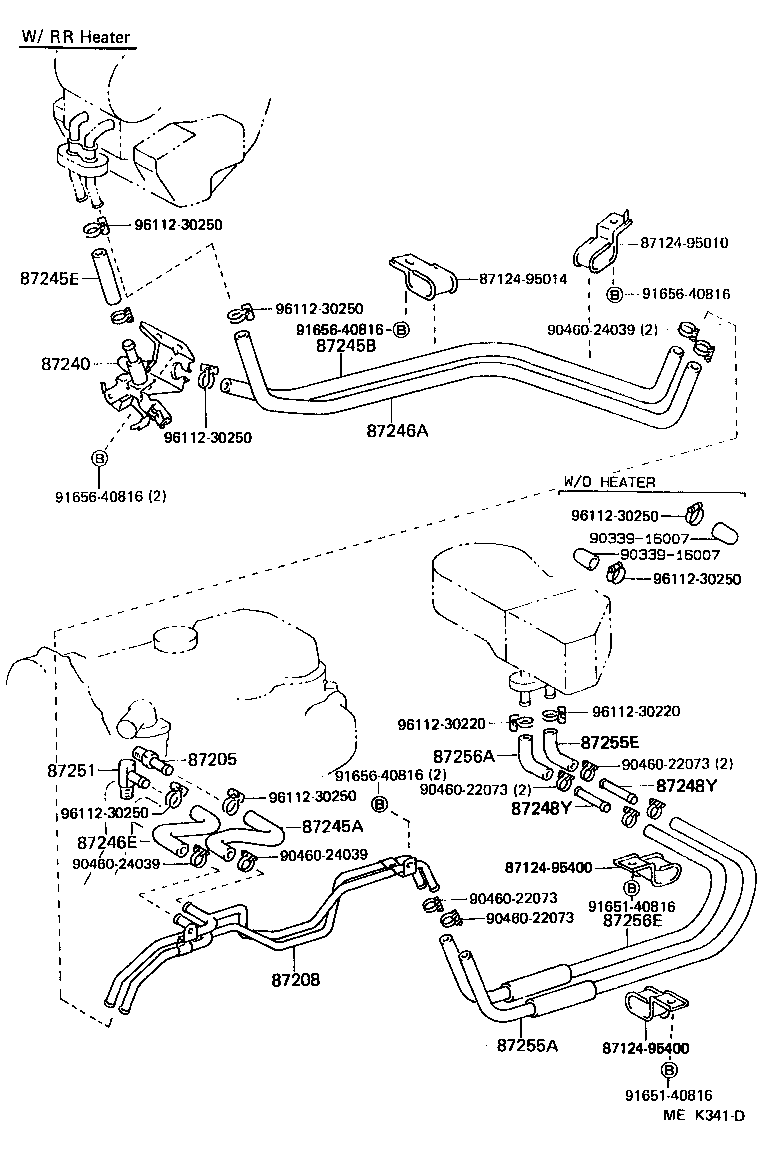

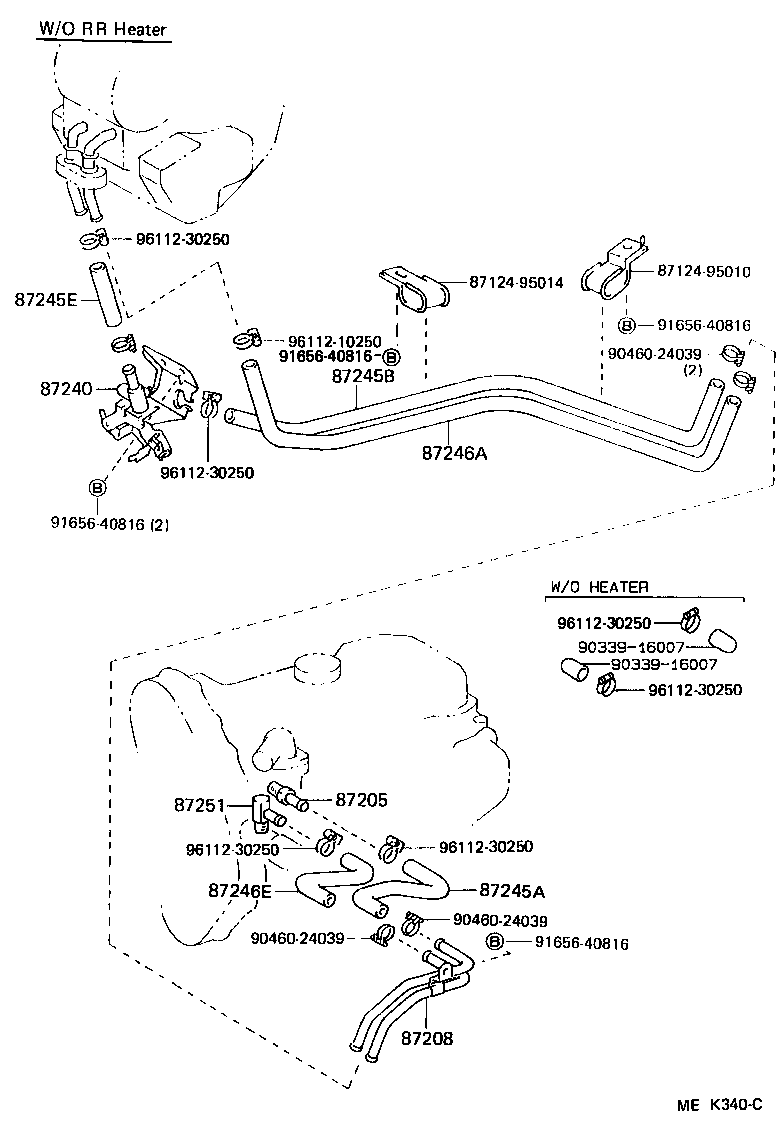

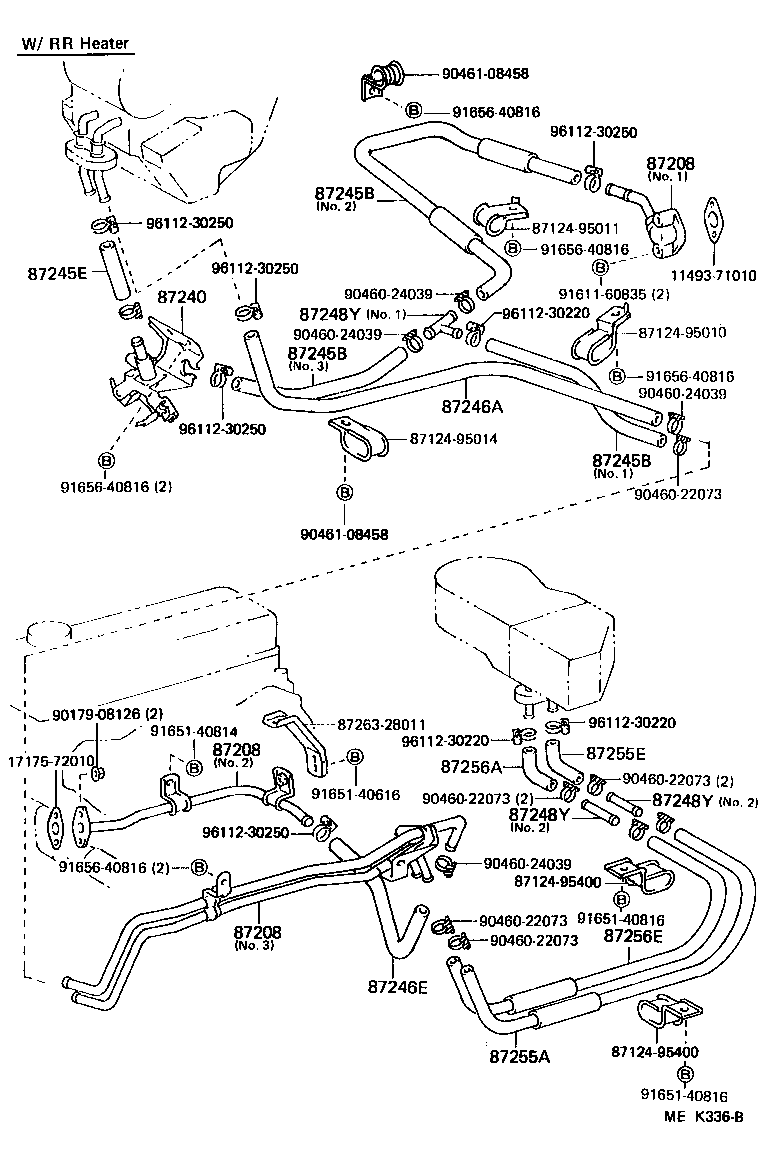

Figure MEK335B MEK335B 1987-08 → — Figure MEK336B MEK336B 1987-08 → — Figure MEK340C MEK340C 1987-08 → — Figure MEK341D MEK341D 1987-08 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
