Toyota DYNA100

1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 3 illustrations

Illustrations

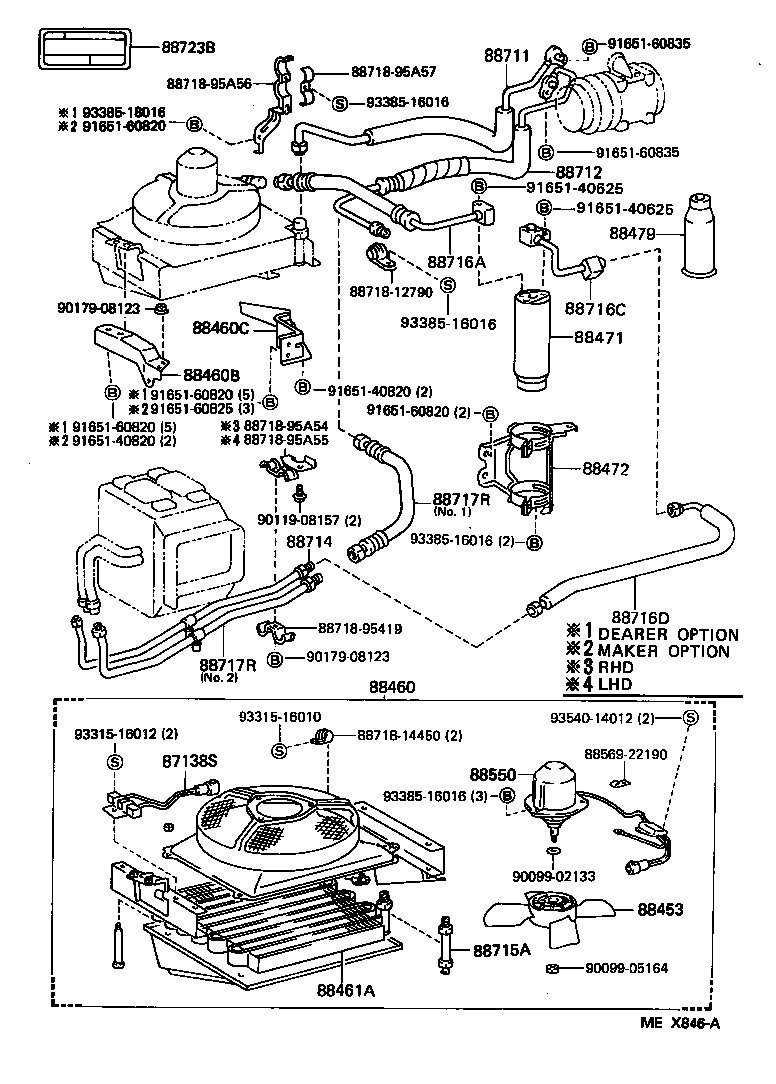

Figure MEK343E MEK343E 1987-08 → 1993-09 Figure MEX846A MEX846A 1993-09 → — Figure MEK344 MEK344 1987-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88461A Core, Cooler Condenser
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717R Pipe, Cooler Refrigerant Suction, R
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
